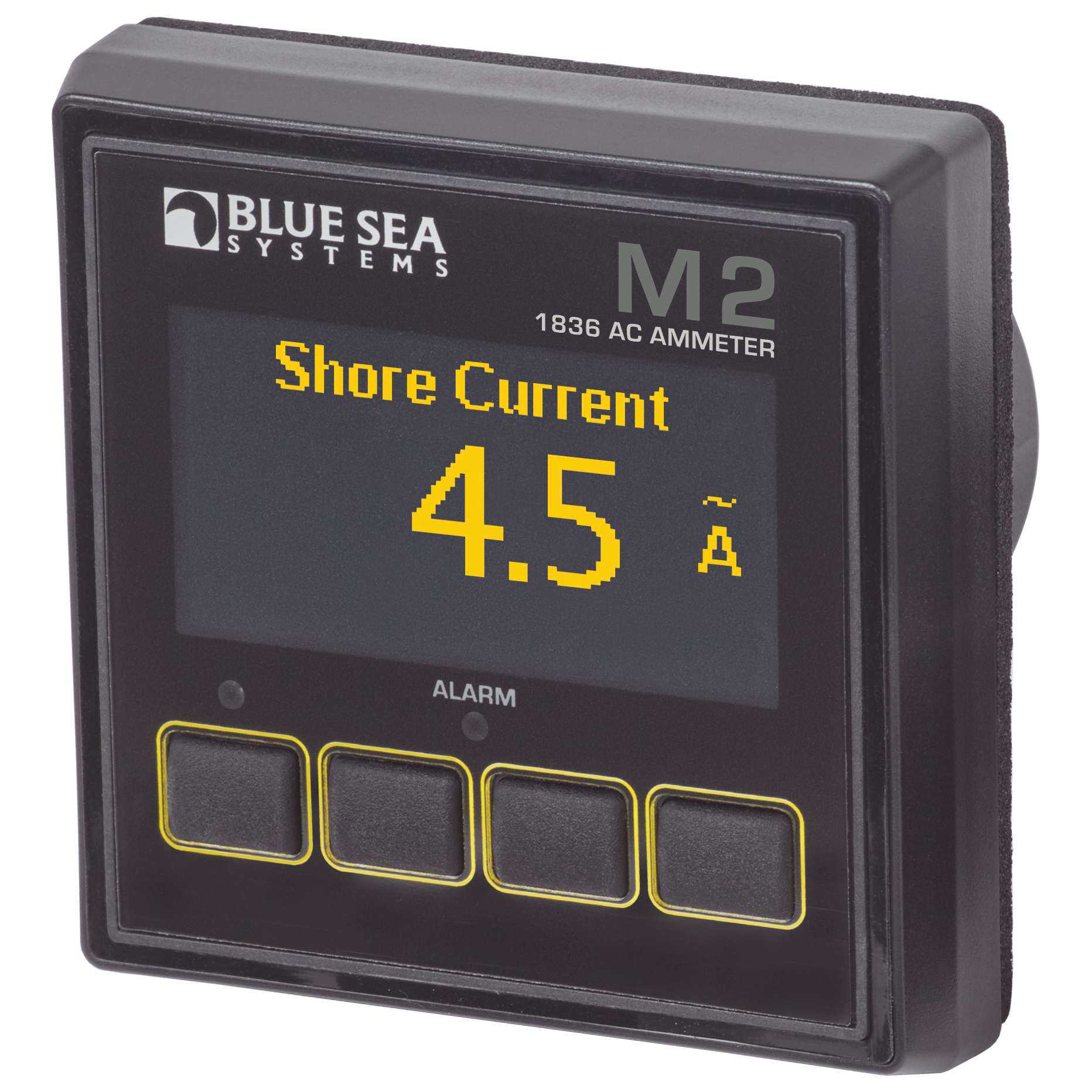

Blue Sea 1836 M2 AC Ammeter OLED Display Marine 2 Circuit Current Monitor Marine
By Blue Sea
PART #1836
WARRANTYLimited Lifetime
MADE INUnited States
SHIPPING WT2 lbs
SHIPPING DIMS8" x 6" x 3"
$214.61
Free Shipping to the Contiguous 48 US States
(See all shipping options in cart)
2 in stock
Secured by:
Share this product:
PinterestTwitterFacebook
Product Description
New Blue Sea Systems M2 AC ammeter. Part number 1836. Monitors AC Amperage on large, bright display. Supports programmable current transformer ratios. Accurately measure and alarm the amperage of your AC system (measures 2 independent circuits).

Features
  • Auto-dimming, bright OLED display is easy to read
  • Easy to adjust
  • 80dB alarm on all models
  • Isolated MOSFET relay

Specifications
  • Meter: Current
  • Function: to 300A
  • Alarms: High/Low Current
  • Current Accuracy: +/- 2.0%
  • Current Range: 0-150A
  • Display Size: 55mm x 28mm
  • Input Voltage: 7-70V DC
  • Maximum Power Consumption: 1.00 Watt
  • Minimum Power Consumption: 0.3 Watt
Details
BrandBlue Sea
ColorBlack
Item Weight0.7 lbs
Made InUnited States
ManufacturerBlue Sea Systems
Manufacturer #1836
ModelBlue Sea 1836
Part Number1836
Shipping Dims8" x 6" x 3"
Shipping Weight2 lbs
TypeAC Ammeter
UPC632085018368
WarrantyLimited Lifetime
