ZF 325-1 Marine Transmission 2.957:1 Mech Shift VKE 4011S SAE 1 Boat 3214002040
By ZF
Part #3214002040
Warranty1 Year Pleasure, 6 Month Commercial
Made InItaly
Shipping Wt385 lbs

$15,793.10 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

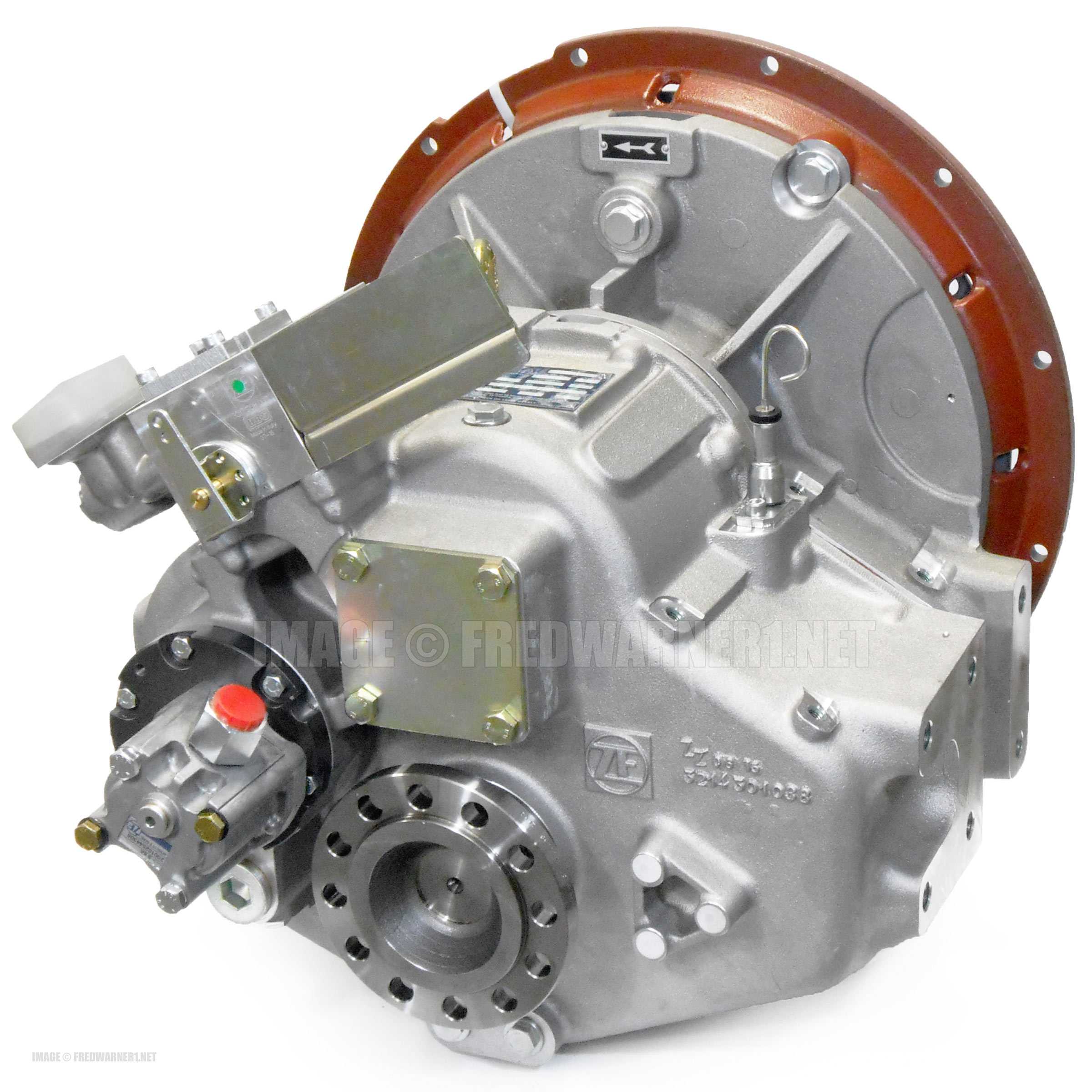

New and unpainted ZF 325-1 marine transmission. Part number 3214002040.

Transmission Specifications
  • Gear Ratio: 2.957:1
  • Mechanical Shift (contact for electric shift availability)
  • No Down Angle, 0 Degree
  • Oil Filter Included
  • SAE 1 Adapter Housing
  • SAE 14 Vulkan VKE 4011S Damper Plate
  • For standard-rotation engines only (same as automotive rotation)
  • Can be shifted either direction for forward (fully-reversing)

Owner's manual included. Sold by a ZF dealer with full warranty.

Important Guidelines
To improve transmission longevity and preserve the warranty, please follow these guidelines when installing and running your new transmission:

Oil Cooler
For transmissions that use an oil cooler, it is important to have it serviced or buy a new one (and flush the oil lines). If there had ever been water, metal particles, or other debris in the old transmission oil, or the old transmission failed or was slipping, reusing an old oil cooler can cause debris to enter the new transmission through the cooler circuit, which can void the warranty and lead to premature failure.

If you need a new oil cooler, you can view a list of coolers here. The oil cooler used by the transmission will vary depending on the engine make and model, so yours may not be listed. Contact for help if needed.

Oil Changes & Fluid Types
Check your transmission oil fluid level regularly and change it following the owner's manual guidelines. Never go more than a year between oil changes. If you aren't sure what oil type to use, here are recommendations:
  • For ZF 12, 15, 25, 30, 45, 63, 68, 80, and 85 series, and Velvet Drive 71C, 72C, 73C, and 5000 series, use an ATF fluid which meets Detroit Diesel Allison C-4 specifications (e.g.: Dexron IIE, Dexron III).
  • For ZF 220 and larger series, use a marine 30W transmission oil (no/low detergent, not multi-grade). In very hot climates 40W is okay.

Oil Filter
For transmissions with an oil filter, replace it as needed following the owner's manual guidelines. Find replacement oil filters here.
Share this product:
PinterestTwitterFacebook

$15,793.10 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandZF
ColorUnpainted
Made InItaly
FitsMechanical Shift
Item Weight330 lbs
ManufacturerZF
Manufacturer #3214002040
MaterialAluminum
Model325-1
Part #3214002040
Product TypeBoat Transmission, No Down Angle, 0 Degree
ReplacesZF 325-1
Shipping Dims36" x 36" x 34"
Shipping Wt385 lbs
SizeGear Ratio: 3.0:1
UPC443590348808
Warranty1 Year Pleasure, 6 Month Commercial
