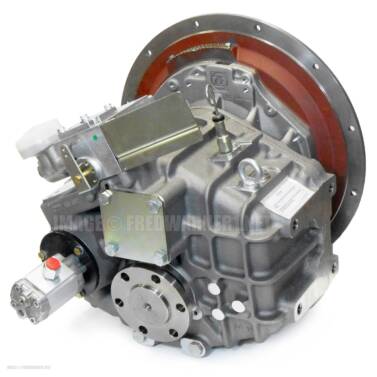

New and unpainted ZF 286A marine transmission. Part number 3227004105 (supersedes part number 3227004006).

Transmission Specifications

• Gear Ratio: 1.962:1
• Mechanical Shift (contact for electric shift availability and pricing)
• 7 Degree Down Angle
• Oil Filter Included
• SAE 2 Adapter Housing (can be configured with SAE 3 if needed)
• SAE 11.5 Centa CFR 178 Damper Plate (contact if a different damper plate is desired)
• For standard-rotation engines only (same as automotive rotation)
• Can be shifted either direction for forward (fully-reversing)

Owner's manual included. Sold by a ZF dealer with full warranty.

Important Guidelines
To improve transmission longevity and preserve the warranty, please follow these guidelines when installing and running your new transmission:

Oil Cooler
For transmissions that use an oil cooler, it is important to have it serviced or buy a new one (and flush the oil lines). If there had ever been water, metal particles, or other debris in the old transmission oil, or the old transmission failed or was slipping, reusing an old oil cooler can cause debris to enter the new transmission through the cooler circuit, which can void the warranty and lead to premature failure.

If you need a new oil cooler, you can view a list of coolers here. The oil cooler used by the transmission will vary depending on the engine make and model, so yours may not be listed. Contact for help if needed.

Oil Changes & Fluid Types
Check your transmission oil fluid level regularly and change it following the owner's manual guidelines. Never go more than a year between oil changes. If you aren't sure what oil type to use, here are recommendations:

• For ZF 12, 15, 25, 30, 45, 63, 68, 80, and 85 series, and Velvet Drive 71C, 72C, 73C, and 5000 series, use an ATF fluid which meets Detroit Diesel Allison C-4 specifications (e.g.: Dexron IIE, Dexron III).
• For ZF 220 and larger series, use a marine 30W transmission oil (no/low detergent, not multi-grade). In very hot climates 40W is okay.

Oil Filter
For transmissions with an oil filter, replace it as needed following the owner's manual guidelines. Find replacement oil filters here.
