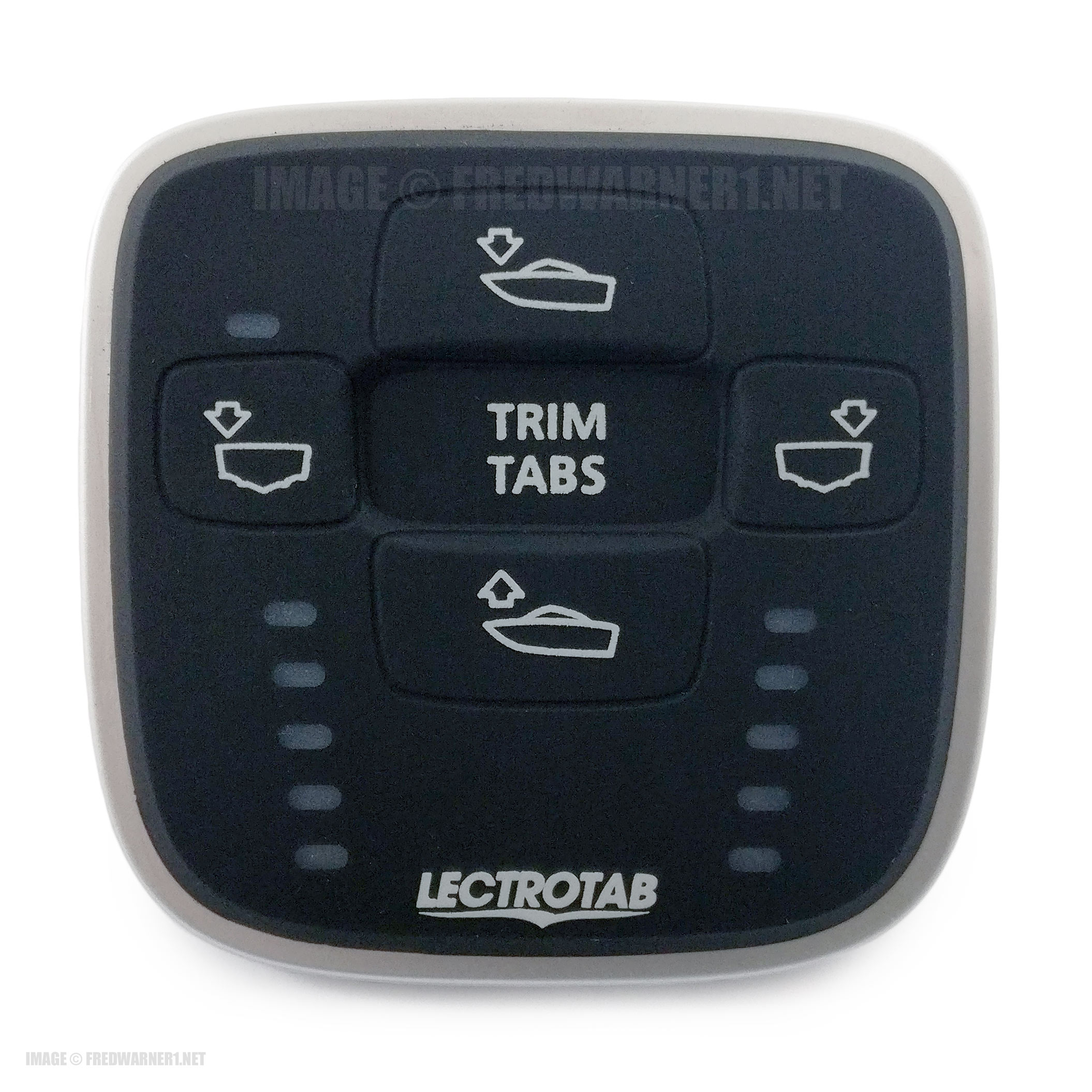

Lectrotab MLC-1 Manual Leveling Control for Trim Tabs Black LED Waterproof
By Lectrotab
Part #MLC-1
WarrantyLimited Lifetime
Made InUnited States
Shipping Wt0.5 lbs

$255.54 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

New Lectrotab MLC-1 manual leveling LED control for marine trim tabs.

Features
  • Microprocessor based trim tab control with LED tab position indicators
  • Single button press to move both tabs up or down simultaneously
  • Rubber overlay with a sleek bezel design
  • Automatic return to last tab position if ignition key is turned off and back on again
  • Completely sealed, completely waterproof and will not deteriorate in sunlight
  • Automatic tab retraction and calibration with key or accessory switch off
  • Easy upgrade from rocker switch style control or Oval control
  • No external power module required for one actuator per tab system
  • LED tab position indicators dim automatically in darkness and brighten in sunlight
  • Adjustable programming features located on back of specification sheet
  • Operates on 12 or 24 volt DC systems


Specifications
  • Model Number: MLC-1
  • Display Color: Black
  • Number of Stations/Actuators: Single Station/1 Actuator/tab(2 tab system)
  • Overall Width: 3.15" (80mm)
  • Overall Height/Thickness: 3.0"/77mm-.437"/11mm
  • Mounting Hole Cutout (Diameter): 2"/50mm
  • DC Voltage: 12/24
  • Fuse Size Power Input (1 Actuator per Tab): 12vdc = 15 or 20 amp, 24 vdc = 10 amp
  • Fuse Size Terminal 7 (Must Connect): 1 to 2 amp
Share this product:
PinterestTwitterFacebook

$255.54 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandLectrotab
Made InUnited States
Item Weight0.3 lbs
ManufacturerLectrotab
Manufacturer #MLC-1
Part #MLC-1
Product TypeControl
Shipping Dims5" x 4" x 3"
Shipping Wt0.5 lbs
UPC443590265235
WarrantyLimited Lifetime
