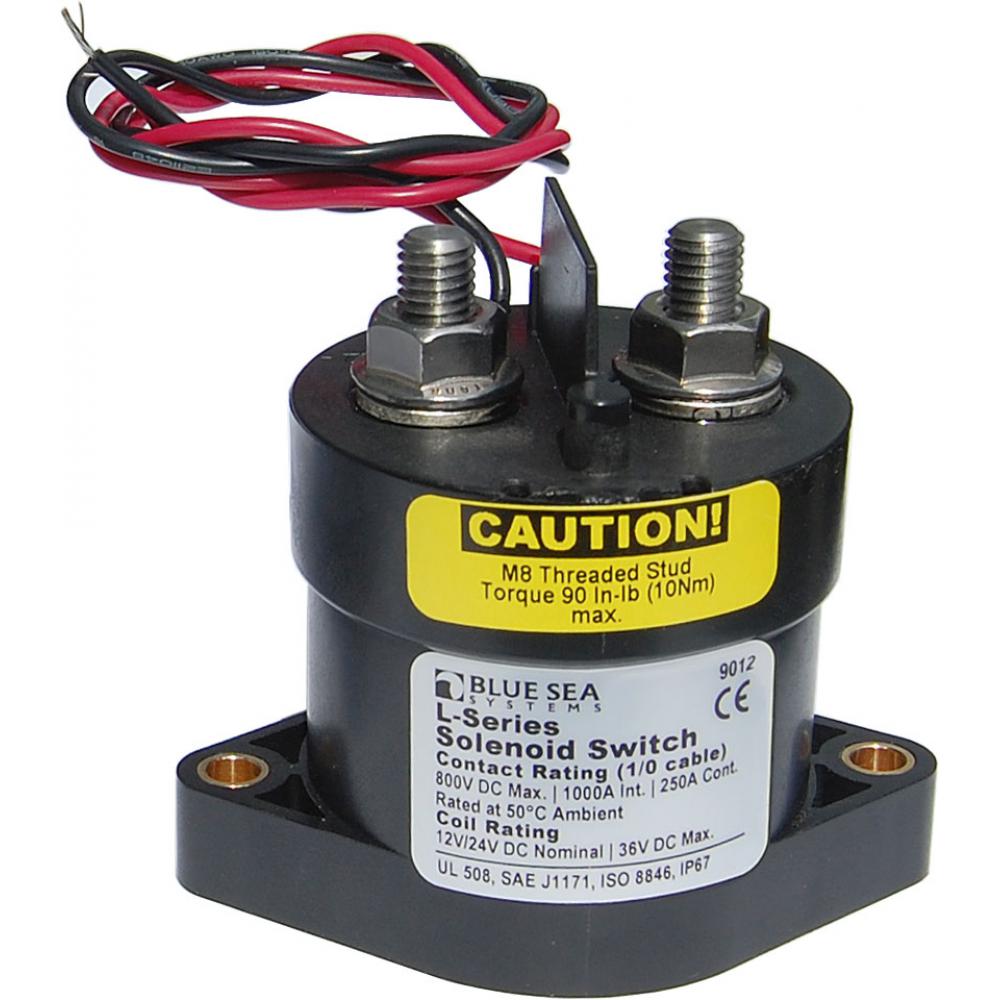

Blue Sea 9012 Marine Solenoid L-Series - 250A 12/24V

Features

• Continous duty, SPST - Normally Open
• Hermetically sealed contacts / vaporproof
• Ignition protected - safe for installation aboard gasoline powered boats
• 450 Amp Class
• Activated by a low amperage ON-OFF switch mounted anywhere
• Coil control circuit minimizes heating and amperage draw
• No external coil suppression required

Specifications

• Control Circuit Voltage: 9-36V DC (12/24V nominal)
• Contact Voltage: 800V DC
• Amperage Operating Current continuous: 0.13A @ 12 V
  0.07A @ 24 V
• Amperage Operating Current when changing state: 3.6A
• Terminal Stud: M8 (accepts 5/16" terminals)
• Terminal Stud Torque: 90 in-lb (10.17 Nm) max
• Continuous Rating: 250A (Using 1/0 Wire Size)
  300A (Using 2/0 Wire Size)
  400A (Using 4/0 Wire Size)
  450A (Using 2 x (2/0) Wire Size)
• Intermittent Rating: 275A (5 min) (Using 1/0 Wire Size)
  400A (5 min) (Using 2/0 Wire Size)
  500A (5 min) (Using 4/0 Wire Size)
  600A (5 min) (Using 2 x (2/0) Wire Size)
• Cranking Rating 30 sec: 1,000A (with 1/0 cable)
• Contact Form: SPST-NO
• Inrush Rating: 0.25 sec (10 repeats): 2000A
• Mounting Screw: #10 or M5
• Stud Material: Stainless Steel
• Terminal Stud Length: 0.66in (16.76 mm)
• Control Circuit Connection: 20 AWG Tinned Wire
• Weight: 1.00lb (0.45 kg)
