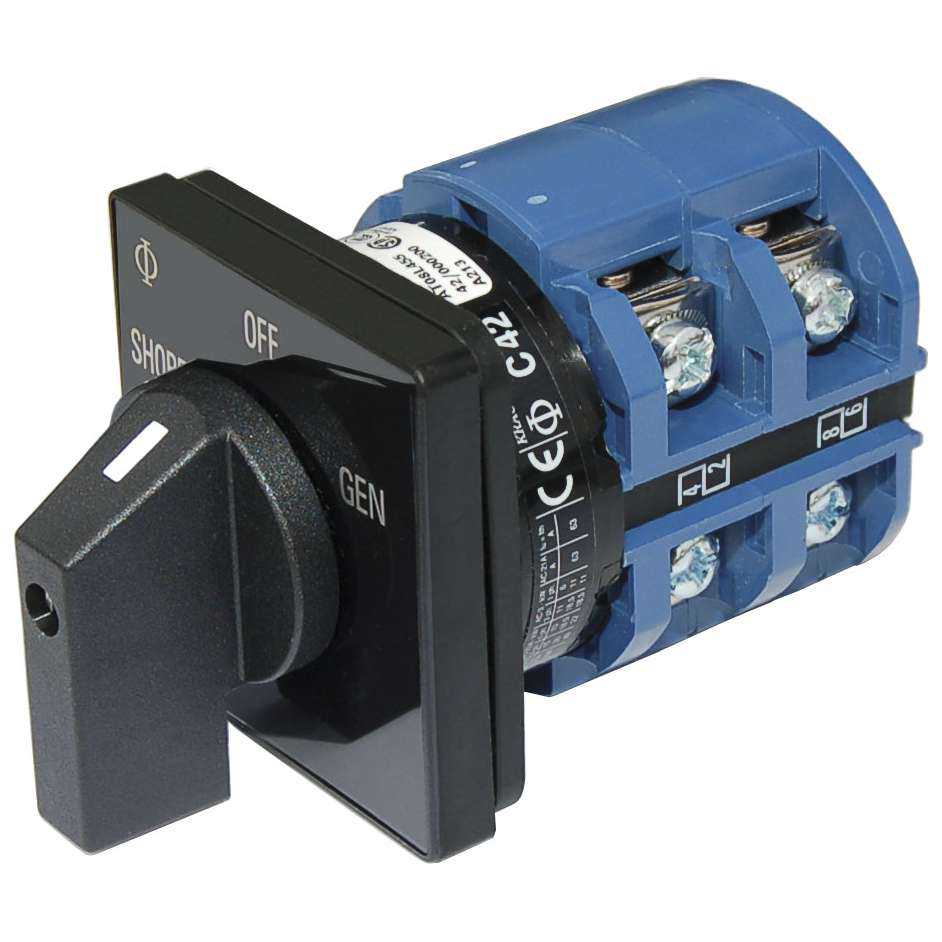

Blue Sea 9011 AC Rotary Switch Off + 2 Position 120V 230V AC 65A Marine Boat
By Blue Sea
Part #9011
Warranty5 Year
Made InUnited States
Shipping Wt2 lbs

$271.28 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems 120V/230V AC rotary switch with off + 2 position and 65A max. Part number 9011.

Features
  • Switches 2 - 120 or 230 Volt AC sources
  • Compact solution when circuit protection is provided elsewhere
  • Allows connecting one of two different AC sources to one circuit
  • Mounts in panels up to 0.16" (4.00mm) thick
  • Heavy duty industrial rated switch
  • Intuitive function - One hand operation
  • UL listed

Specifications
  • Positions: 2 + OFF
  • Source Selection: 2
  • Nominal Voltage: 120V
  • Poles: 2
  • Load Circuits Out: 1
  • Maximum Amperage: 65A
  • Maximum Voltage: 600V AC
  • Source In: 2
  • Height: 2.52in (64.01 mm)
  • Width: 2.52in (64.01 mm)
  • Depth: 2.41in (61.21 mm)
  • Weight: 1.25lb (0.57 kg)
Share this product:
PinterestTwitterFacebook

$271.28 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InUnited States
Item Weight0.8 lbs
ManufacturerBlue Sea Systems
Manufacturer #9011
ModelBlue Sea 9011
Part #9011
Product TypeAC Rotary Switch
Shipping Dims5" x 3" x 3"
Shipping Wt2 lbs
UPC632085090111
Warranty5 Year
