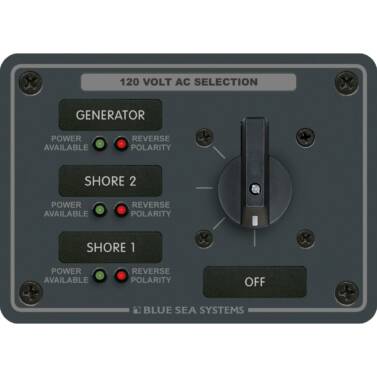

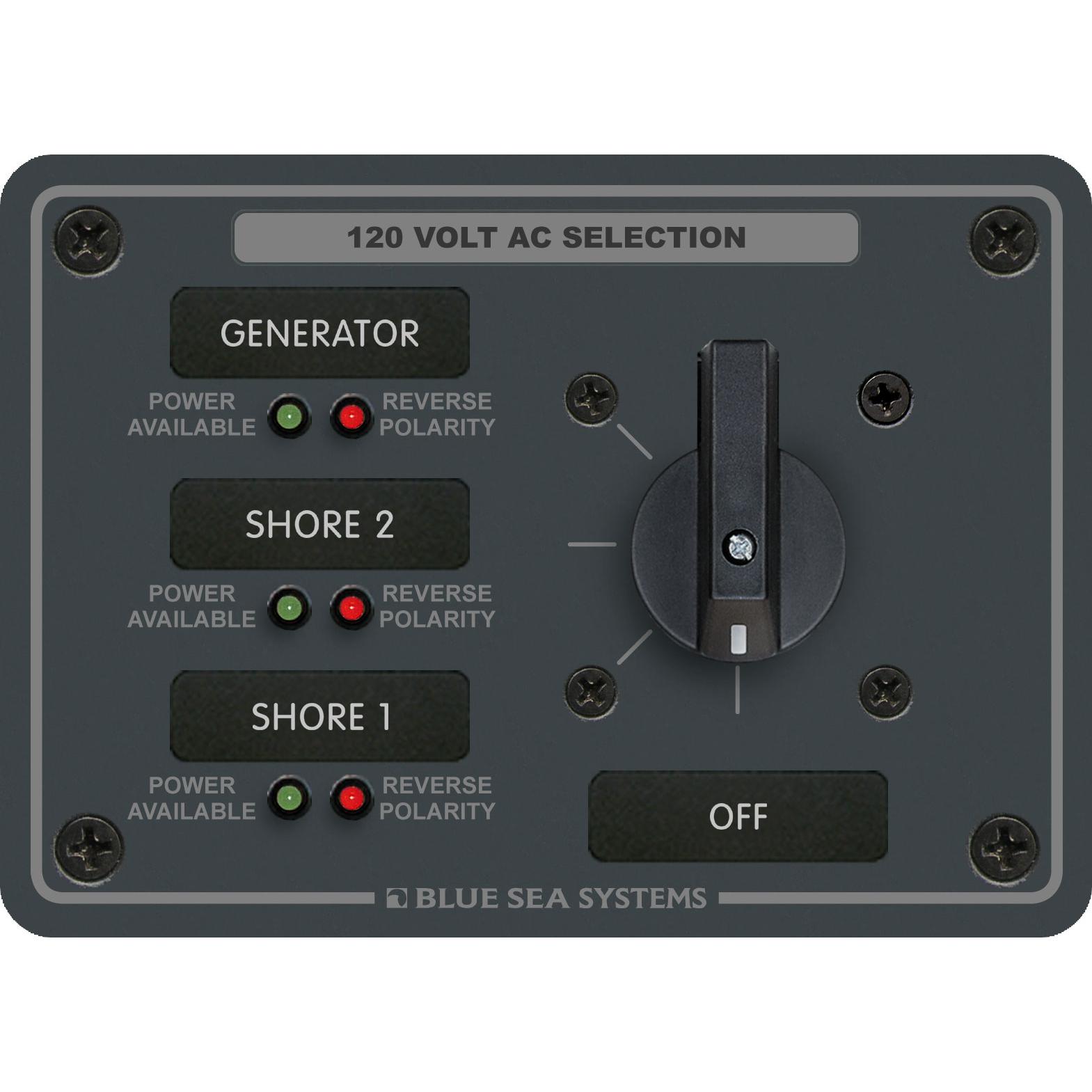

Blue Sea 8366 Marine AC Rotary Switch Panel 30 Ampere 3 positions + OFF, 2 Pole
By Blue Sea
By Blue Sea
| Part # | 8366 |
|---|---|
| Warranty | 5 Year |
| Made In | United States |
| Shipping Wt | 2 lbs |
$223.25 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 8366 Marine AC Rotary Switch Panel 30 Ampere 3 positions + OFF, 2 Pole
Features
Specifications
Features
- Switches 3 - 120 Volt AC sources
- Includes 9010 heavy duty industrial rated switch
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Switches AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Includes heavy duty industrial-rated switch
- Red reverse polarity LED indicators
- Green power-available LED indicators
- Includes 9583 AC Rotary Panel 9 Label Set
Specifications
- Positions: 3 + OFF
- Nominal Voltage: 120V AC
- Poles: 2
- Maximum Amperage: 30A
- Source In: 3
- Height: 3.75in (95.25 mm)
- Width: 5.25in (133.35 mm)
- Depth: 2.41in (61.21 mm)
- Weight: 1.63lb (0.74 kg)
$223.25 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | United States |
| Item Weight | 0.78 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8366 |
| Part # | 8366 |
| Product Type | AC Panel |
| Shipping Dims | 10" x 7" x 5" |
| Shipping Wt | 2 lbs |
| UPC | 632085083663 |
| Warranty | 5 Year |
