Blue Sea 8282 Contura Switch SPST Black OFF-ON 12V 24V Marine Boat Sealed
By Blue Sea
By Blue Sea
Part # | 8282 |
---|---|
Warranty | 5 Year |
Made In | Mexico |
Shipping Wt | 0.3 lbs |
$14.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

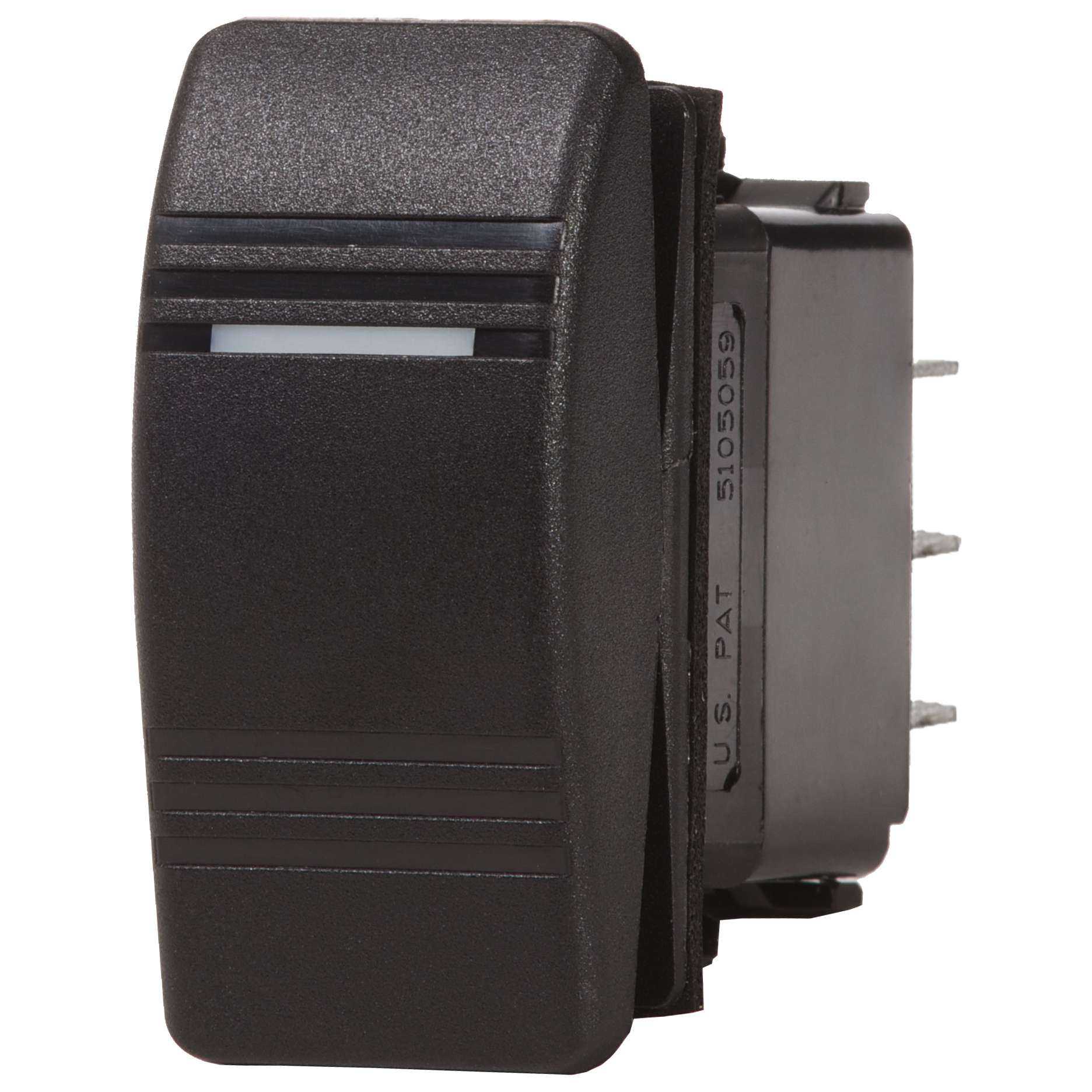

New Blue Sea Systems Contura Switch SPST Black. Switch positions are: OFF-ON. Part number 8282.
Features
Specifications
Features
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Specifications
- Action: OFF-ON
- Pole / Throw: SPST
- Actuator Color: Black - Contura III
- Common Applications: lights
- Maximum Amperage: 20A @ 12V, 15A @ 24V
- Amperage Operating Current: 18mA (LED)
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Actuator Position to Light LED: ON
- Embedded LEDs: 1 (clear white)
- Lighting: LED rated 100,000 hours 1/2 half
- Seals: Internal and external gasket panel seal
- Weight: 0.09lb (0.04 kg)
$14.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
Brand | Blue Sea |
---|---|
Color | Black |
Made In | Mexico |
Item Weight | 0.08 lbs |
Manufacturer | Blue Sea Systems |
Manufacturer # | 8282 |
Model | Blue Sea 8282 |
Part # | 8282 |
Product Type | Contura Switch |
Shipping Dims | 6" x 4" x 4" |
Shipping Wt | 0.3 lbs |
UPC | 632085082826 |
Warranty | 5 Year |
