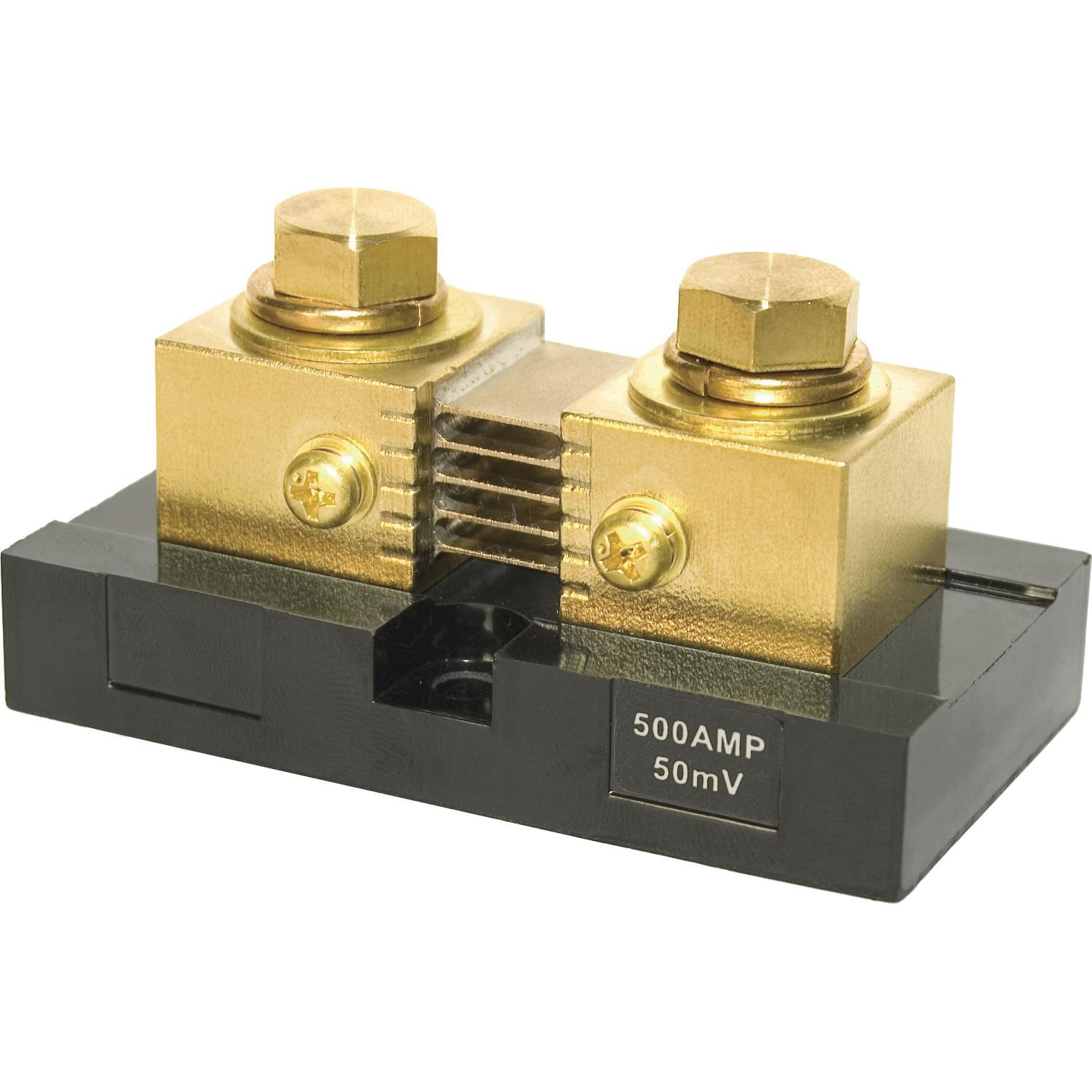

Blue Sea 8255 Marine DC Digital Current Shunt - 500A
By Blue Sea
By Blue Sea
| Part # | 8255 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.8 lbs |
$57.94 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 8255 Marine DC Digital Current Shunt - 500A
Features
Specifications
Features
- For use with DC Ammeters
- For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
Specifications
- Continuous Duty: 66% of Rated Current
- Full Scale: 50 Milivolts
- Intermittent Duty: 300% @ 3 Seconds, 100% @ 5 Minutes
- Ratio: 500A DC/50mV DC
- Recommended Torque: 7 in-lb (0.79 Nm) Brass Fittings, 190 in-lb (21.47 Nm) M10 Bolts
- Shunt Type: Resistive, Manganin Metal Element
- Weight: 0.71lb (0.32 kg)
$57.94 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.64 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8255 |
| Part # | 8255 |
| Product Type | Current Shunt |
| Shipping Dims | 5" x 5" x 4" |
| Shipping Wt | 0.8 lbs |
| UPC | 632085082550 |
| Warranty | 5 Year |
