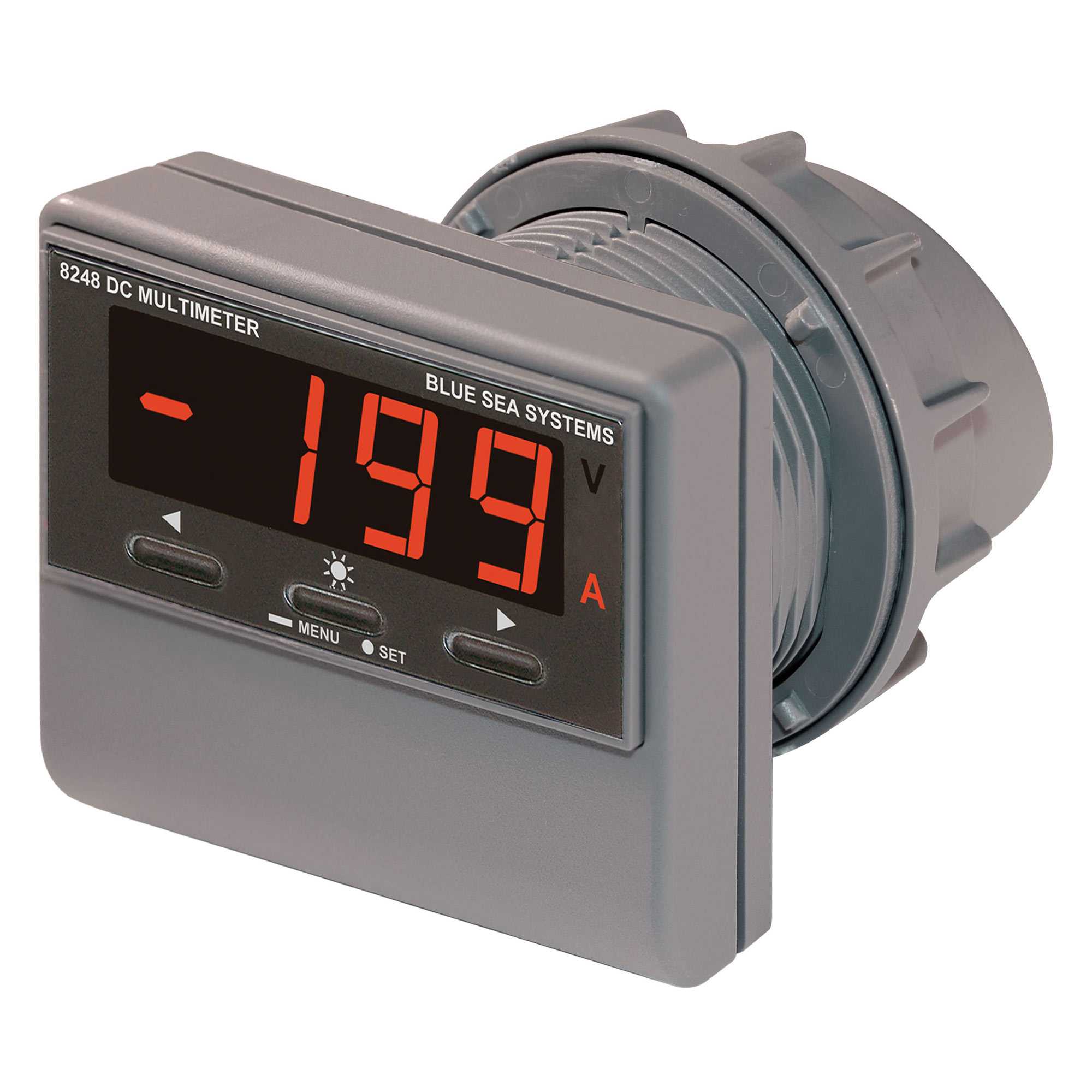

New Blue Sea Systems DC digital multi-function multimeter with alarm. Part number 8248. Features the spin-on mounting system. Surface or flush mount in any Blue Sea Systems panel.

Features

• Displays amperage from -500 to +500 Amps
• Displays voltage from 0 to 60 Volts in 0.01 Volt increments
• High and low voltage, audio and visual alarms
• Standard meter operates in negative side of circuit only. Shunt Shifter required for positive side installation such as alternators
• 3 levels of display brightness
• Programmable sleep mode blanks display for power conservation
• Splashproof front
• Includes 500 Amp shunt

Specifications

• Meter: Current, Voltage
• Alarms: High and low voltage
• Input Voltage: 7-60V DC
• Maximum Power Consumption: 1 Watt
• Minimum Power Consumption: 0.60 Watt
• Sleep Mode: Programmable
• Weight: 1.10lb (0.5 kg)
