Blue Sea 8230 Contura Switch SPST Gray OFF-ON 12V 24V Marine Boat Sealed
By Blue Sea
By Blue Sea
| Part # | 8230 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.3 lbs |
$15.19 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
16 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

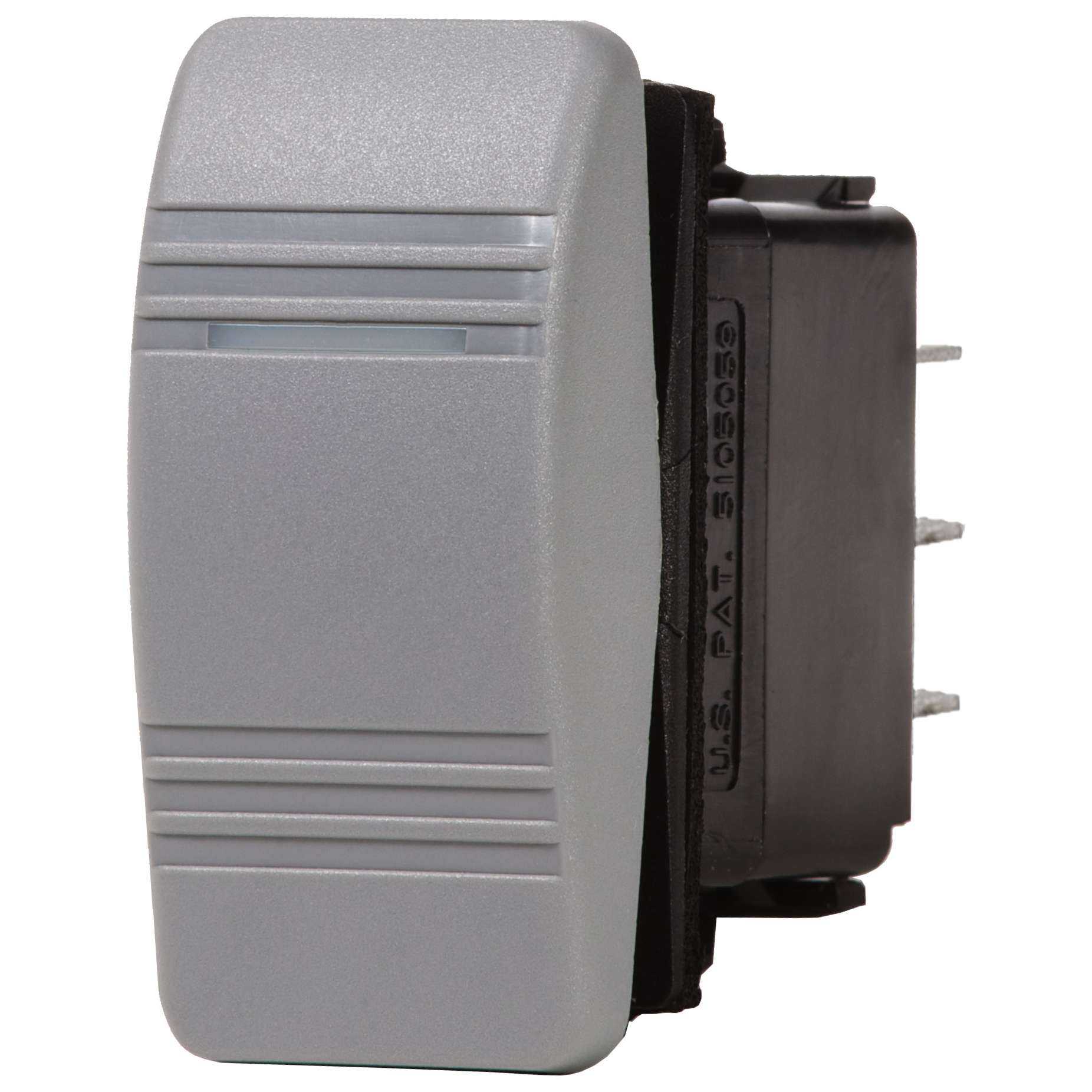

New Blue Sea Systems Contura Switch SPST Gray - OFF-ON. Part number 8230.
Features
Specifications
Features
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Specifications
- Action: OFF-ON
- Pole / Throw: SPST
- Actuator Color: Gray - Contura III
- Common Applications: lights
- Maximum Amperage: 20A @ 12V, 15A @ 24V
- Amperage Operating Current: 18mA (LED)
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Actuator Position to Light LED: ON
- Embedded LEDs: 1
- Lighting: LED rated 100,000 hours 1/2 half
- Seals: Internal and external gasket panel seal
- Weight: 0.09lb (0.04 kg)
$15.19 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
16 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.1 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8230 |
| Model | Blue Sea 8230 |
| Part # | 8230 |
| Product Type | Contura Switch |
| Shipping Dims | 8" x 5" x 4" |
| Shipping Wt | 0.3 lbs |
| UPC | 632085082307 |
| Warranty | 5 Year |
