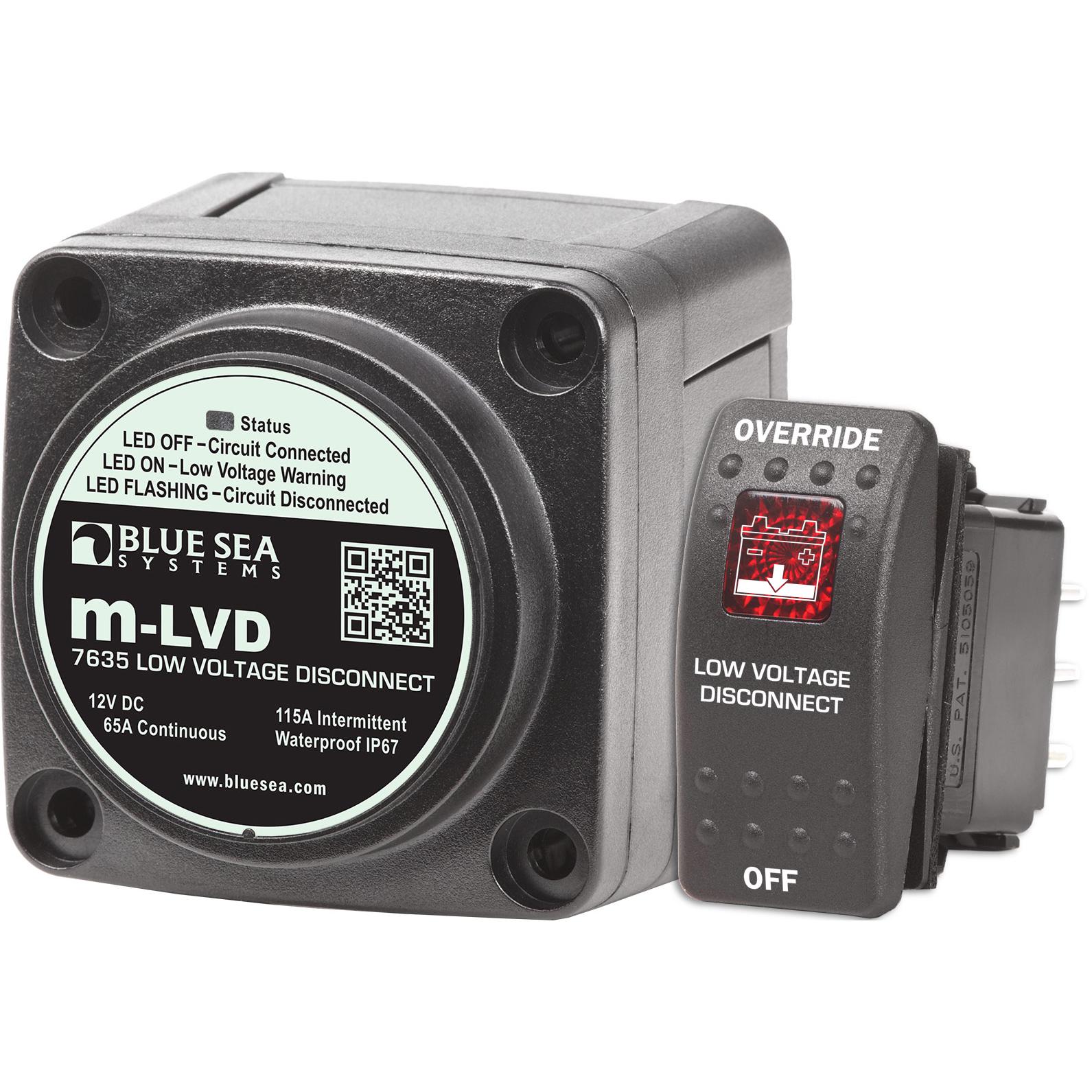

Blue Sea 7635 Marine m-LVD Low Voltage Disconnect
By Blue Sea
Part #7635
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$82.48 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
9 in stock
Pay in 4 interest-free payments with

Product Description

Blue Sea 7635 Marine m-LVD Low Voltage Disconnect

Overview
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery lifeA dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Features
  • Status light in both m-LVD and Remote Control Switch provides visual warning of lowvoltage state prior to disconnect
  • Alarm output available for audible warning of low voltage stateprior to disconnect (optional alarm required)
  • Case design allows surface, front panel, or rear panel mounting
  • Rear insulating cover protects rear contacts
  • Waterproof - rated IP67 for temporary immersion
  • Remote Control Switch Functions:
  • - Disconnect Voltage Adjustment - Sets desired disconnect voltage
  • - Override - Temporarily delays circuit disconnect for 10 minutes
  • - OFF - Temporarily disconnects circuits until voltage rises
  • - Override or OFF - Silences alarm (optional alarm required)

Specifications
  • Nominal Voltage: 12V DC
  • Amperage Operating Current: 95mA (Connected)
    4mA (Open)
  • Terminal Stud Torque: 60 in-lb (6.78 Nm)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 Min)
  • Maximum Cable Size: 1/0 AWG (50mm2)
  • Stud Material: Tinned Brass
  • Terminal Stud Length: 7/16 in (11.11 mm)
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Weight: 0.77lb (0.35 kg)
