Blue Sea 7532 Marine P12 Battery Charger - 12V DC 40A
By Blue Sea
Part #7532
Warranty5 Year
Shipping Wt13 lbs

$787.99 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

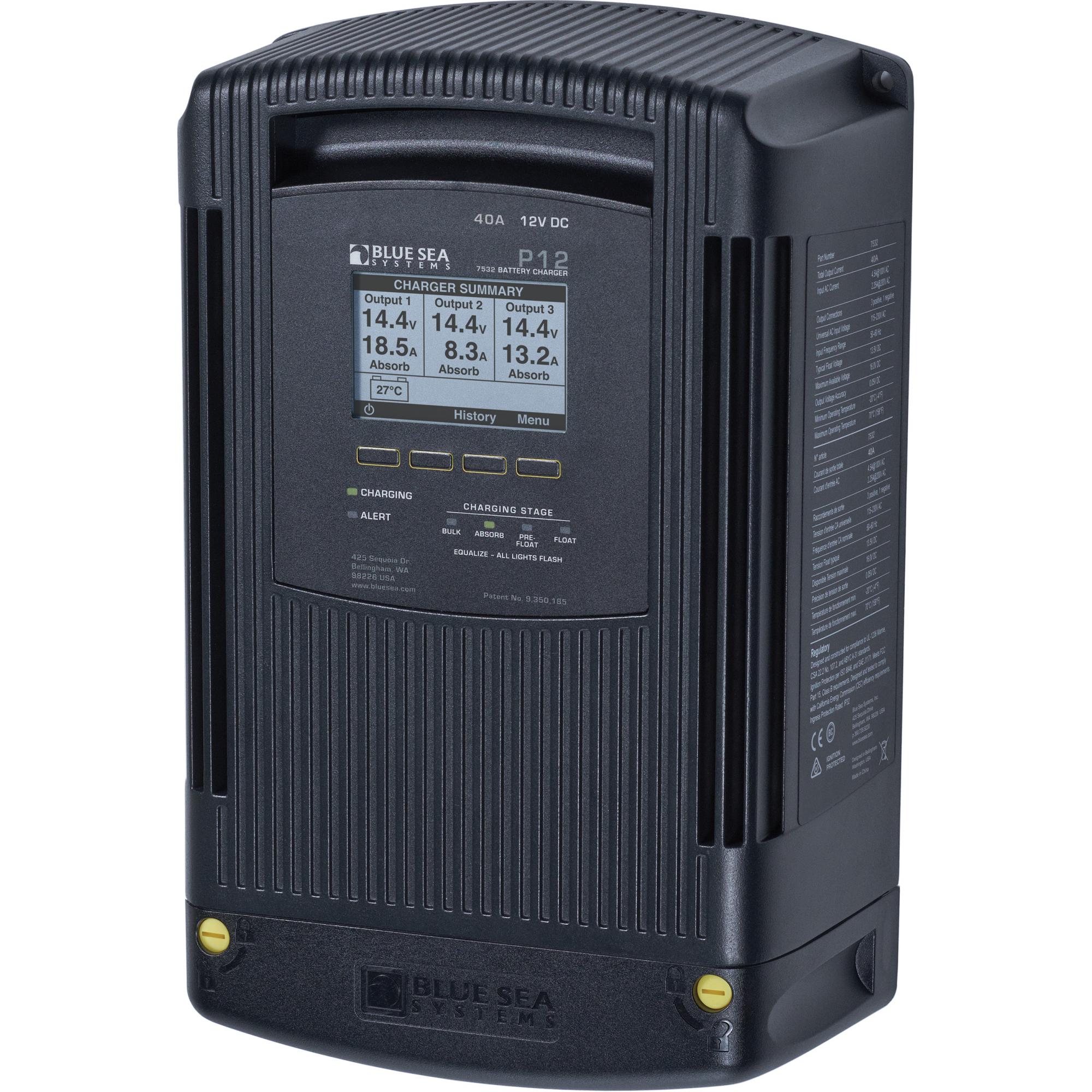

Blue Sea 7532 Marine P12 Battery Charger - 12V DC 40A

Overview
Four stage, three output, dry mount design, for use in harsh environments.

Features
  • Rugged, finned aluminum case
  • PreFloat stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection

Specifications
  • Total Output Current: 40A
  • Input AC Current: 7.5A @ 100V AC
    3.75A @ 200V AC
  • Maximum Output Voltage: 16V DC
  • Nominal Voltage: 12V DC
  • Ignition Protected: Yes
  • Number of Outputs: 1 negative
    3 positive
  • Stud Size: M6
  • Universal AC Input Voltage: 115-230V AC
  • AC Input Frequency: 45-65Hz
  • Output Voltage Accuracy: 0.05V
  • Typical Float Voltage: 13.5V DC
  • Minimum Operating Temperature: -20 degree C
  • Maximum Operating Temperature: 70 degree C
  • Minimum Storage Temperature: -30 degree C
  • Maximum Storage Temperature: 80 degree C
  • Battery Types: AGM
    Flooded Lead Acid
    Gel
    TPPL (Thin Plate Pure Lead)
  • Recommended for Battery Bank Sizes: 440Ah Maximum (Example: 4 x Group 31)
    60Ah Minimum (Example: 2 x Group 31)
  • Screw Terminal Torque: 10 in-lb (1.13 Nm) M3
    15 in-lb (1.69 Nm) M4
  • Stud Torque: 80 in-lb (9.04 Nm)
  • Height: 13.03in (330.96 mm)
  • Width: 8.46in (214.88 mm)
  • Depth: 3.66in (92.96 mm)
  • Warranty: 5 Year
  • Weight: 12.00lb (5.44 kg)
