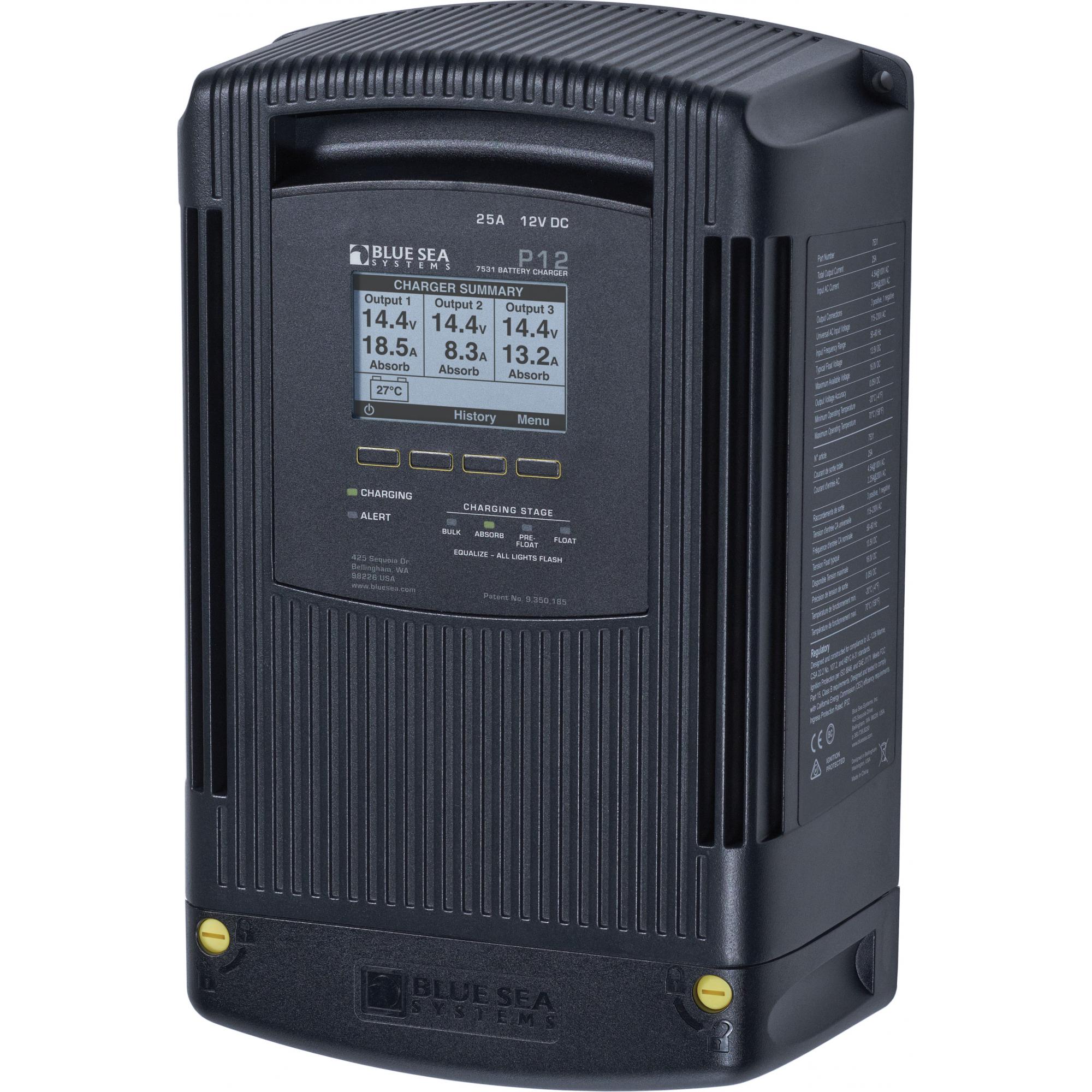

Blue Sea 7531 Marine P12 Battery Charger - 12V DC 25A

Overview
Four stage, three output, dry mount design, for use in harsh environments.

Features

• Rugged, finned aluminum case
• PreFloat stage prevents over charging
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications

• Total Output Current: 25A
• Input AC Current: 4.5A @ 100V AC
  2.25A @ 200V AC
• Maximum Output Voltage: 16V DC
• Nominal Voltage: 12V DC
• Ignition Protected: Yes
• Number of Outputs: 1 negative
  3 positive
• Stud Size: M6
• Universal AC Input Voltage: 115-230V AC
• AC Input Frequency: 45-65Hz
• Output Voltage Accuracy: 0.05V
• Typical Float Voltage: 13.5V DC
• Minimum Operating Temperature: -20 degree C
• Maximum Operating Temperature: 70 degree C
• Minimum Storage Temperature: -30 degree C
• Maximum Storage Temperature: 80 degree C
• Battery Types: AGM
  Flooded Lead Acid
  Gel
  TPPL (Thin Plate Pure Lead)
• Recommended for Battery Bank Sizes: 330Ah Maximum (Example: 3 x Group 31)
  60Ah Minimum (Example: 2 x Group 27)
• Screw Terminal Torque: 10 in-lb (1.13 Nm) M3
  15 in-lb (1.69 Nm) M4
• Stud Torque: 80 in-lb (9.04 Nm)
• Height: 13.03in (330.96 mm)
• Width: 8.46in (214.88 mm)
• Depth: 3.66in (92.96 mm)
• Warranty: 5 Year
• Weight: 12.00lb (5.44 kg)
