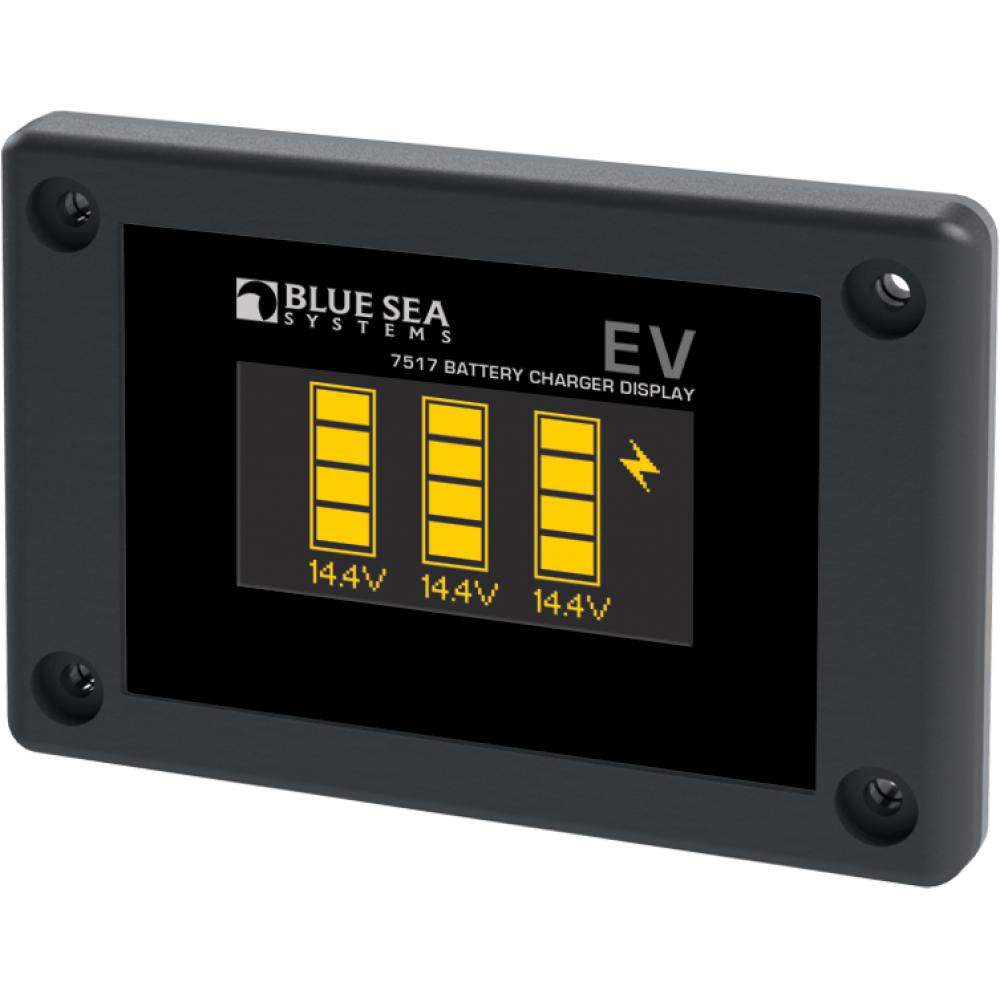

Blue Sea 7517 Marine EV Battery Charger Display

Overview
Intuitive Battery Monitoring. The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger's Summary screen, displaying voltage, current charging stage, and faults from the charger.

Features

• Drop in replacement for traditional rectangular displays
• Automatically detects 1-3 battery banks
• AC charge indication verifies that power is connected and the battery charger is charging
• Plain language fault indication relays if there is a fault with the battery charger
• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
• Displays voltage bar graphs even when AC power is not present
• Optional standby mode shuts off screen after 4 hours of inactivity
• Automatic ON based on motion with integrated knock sensor
• Bright, daylight readable, OLED display

Specifications

• Accuracy: +/- 1% at 36 Volts DC
• Battery Inputs: 3 with common reference
• Display Size: 55mm x 28mm
• Display Type: Yellow OLED
• Input Voltage Range: 6-36V DC
• Maximum Current Draw: 50mA
• Minimum Current Draw: <1mA in Standby Mode (The 7517 has the option of a power saving Standby Mode which turns the display off after 4 hours of being stationary. The 7517 will resume normal function upon movement of the vehicle or by tapping the unit several times in succession.)
• Weight: 0.67lb (0.3 kg)
