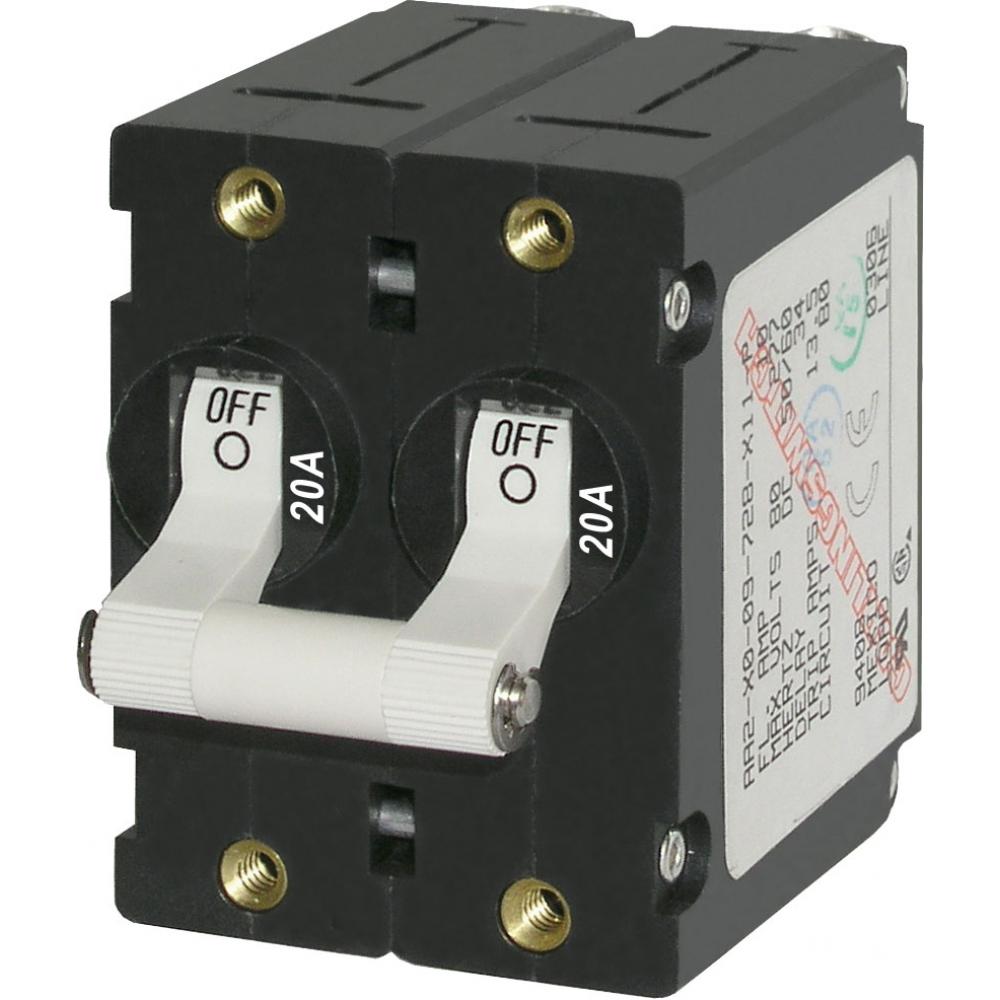

Blue Sea 7260 Marine A-Series White Toggle Circuit Breaker - Double Pole 20A

Features

• Meets American Boat and Yacht Council (ABYC) standards
• UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada
• The industry standard circuit breaker for Blue Sea Systems electrical panels
• Combines switching and circuit protection into a single device
• Used as AC Main circuit protection
• "Trip Free" design cannot ben held "ON" during fault current condition
• For circuit breaker mounting panel, see 8173

Specifications

• Amperage: 20A AC
  20A DC
• Color: White
• Actuator Style: Toggle
• Poles: 2
• Maximum Voltage: 120V AC
  240V AC
  32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 120V AC
  3000A @ 240V AC
  1500A @ 240V AC [TUV]
  3000A @ 240V AC [UL 1077]
  7500A @ 65V DC
• Minimum Operating Temperature: -40 degree C
• Maximum Operating Temperature: 85 degree C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screws: #10-32 Stainless Steel
• Weight: 0.30lb (0.14 kg)
• Weight: 0.34lb (0.15 kg)
