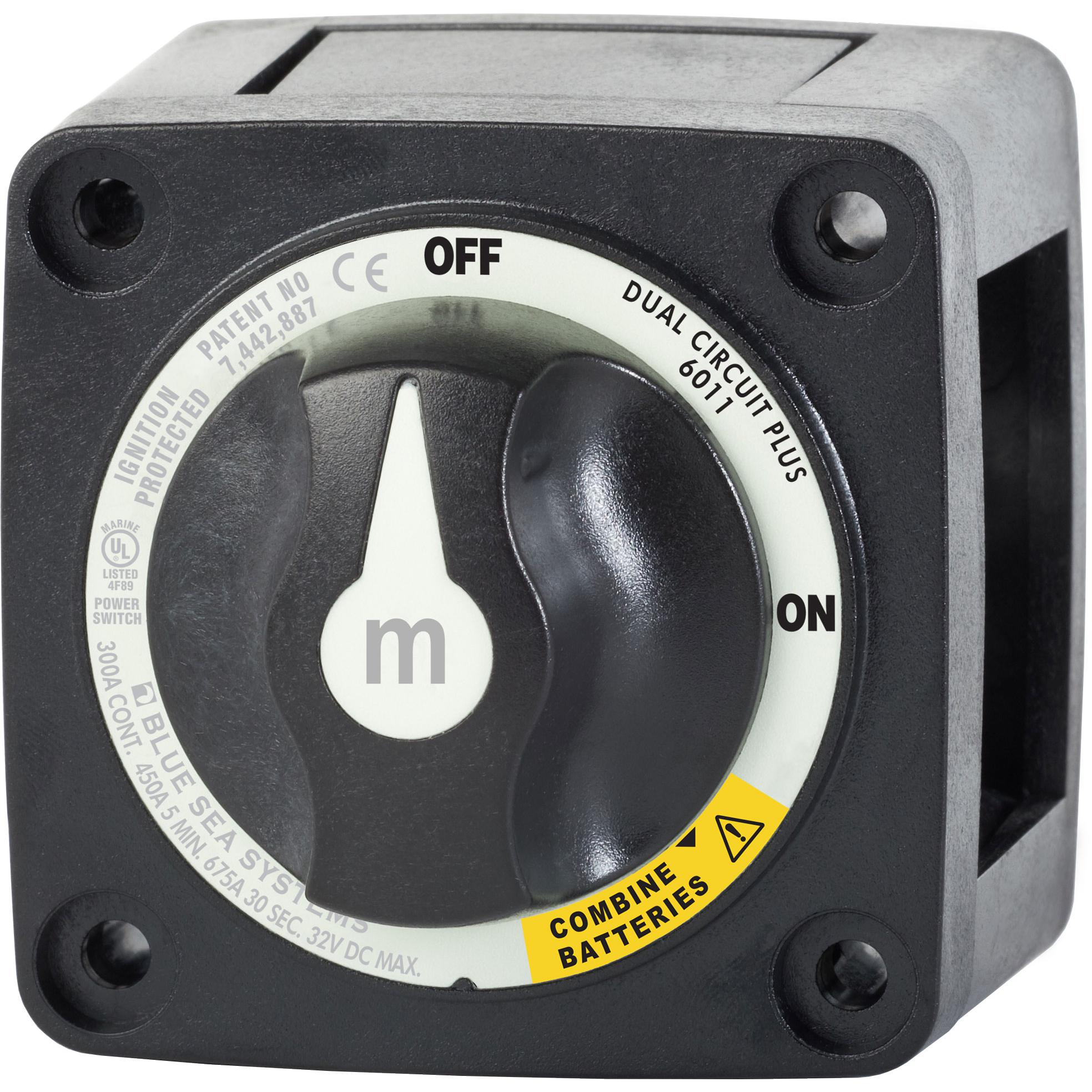

Blue Sea 6011200 m-Series Mini Dual Circuit Plus Battery Switch - Black
By Blue Sea
By Blue Sea
| Part # | 6011200 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 1 lbs |
$48.35 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 6011200 m-Series Mini Dual Circuit Plus Battery Switch - Black
Overview
Simultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.
Specifications
Overview
Simultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.
Specifications
- Switch Type: Dual Circuit Plus
- Color: Black
- Switch Positions: 3
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8"
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 450A (5 min)
- Cranking Rating 30 sec: 675A per circuit
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 0.80lb (0.36 kg)
- Weight: 0.80lb (0.36 kg)
$48.35 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.8 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 6011200 |
| Part # | 6011200 |
| Product Type | m-Series Battery Switch |
| Shipping Dims | 8" x 4" x 4" |
| Shipping Wt | 1 lbs |
| UPC | 632085601126 |
| Warranty | 5 Year |
