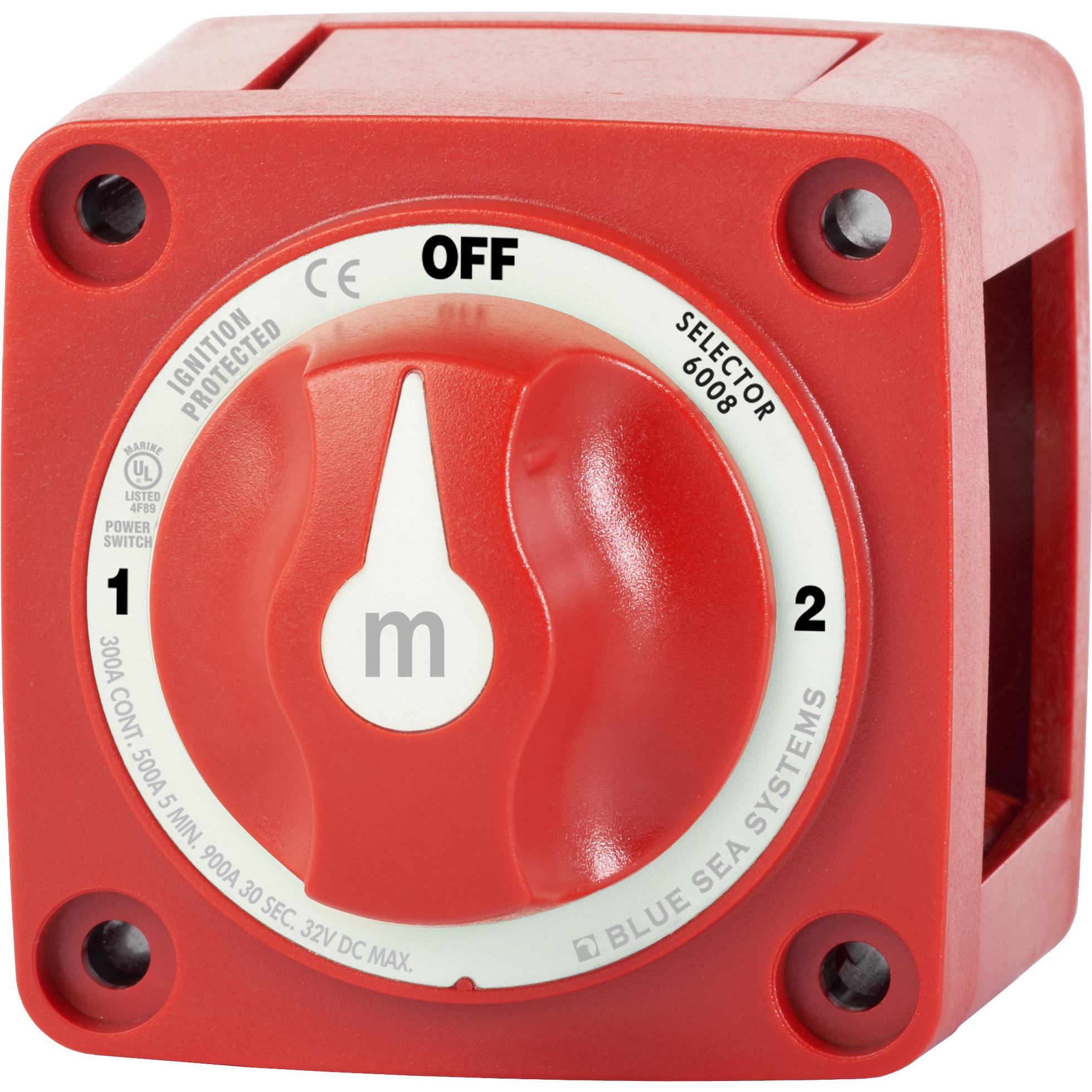

Blue Sea 6008 Marine m-Series Selector 3 Position Battery Switch - Red
By Blue Sea
Part #6008
Warranty5 Year
Made InMexico
Shipping Wt1 lbs

$48.35 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock
Pay in 4 interest-free payments with

Product Description

Blue Sea 6008 Marine m-Series Selector 3 Position Battery Switch - Red

Overview
Switches a single battery to a single load group.

Features
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Specifications
  • Switch Type: Selector 3 Position
  • Color: Red
  • Switch Positions: 3
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Stud Size: 3/8"
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 500A (5 Min)
  • Cranking Rating 30 sec: 900A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
    4/0 AWG (130mm²)
  • Mounting Holes: Accept #10 Screw
  • Stud Material: Tinned Copper
  • Stud Torque: 120 in-lb (13.56 Nm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.77lb (0.35 kg)
Share this product:
PinterestTwitterFacebook

$48.35 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.77 lbs
ManufacturerBlue Sea Systems
Manufacturer #6008
Part #6008
Product Typem-Series Battery Switch
Shipping Dims8" x 4" x 4"
Shipping Wt1 lbs
UPC632085060084
Warranty5 Year
