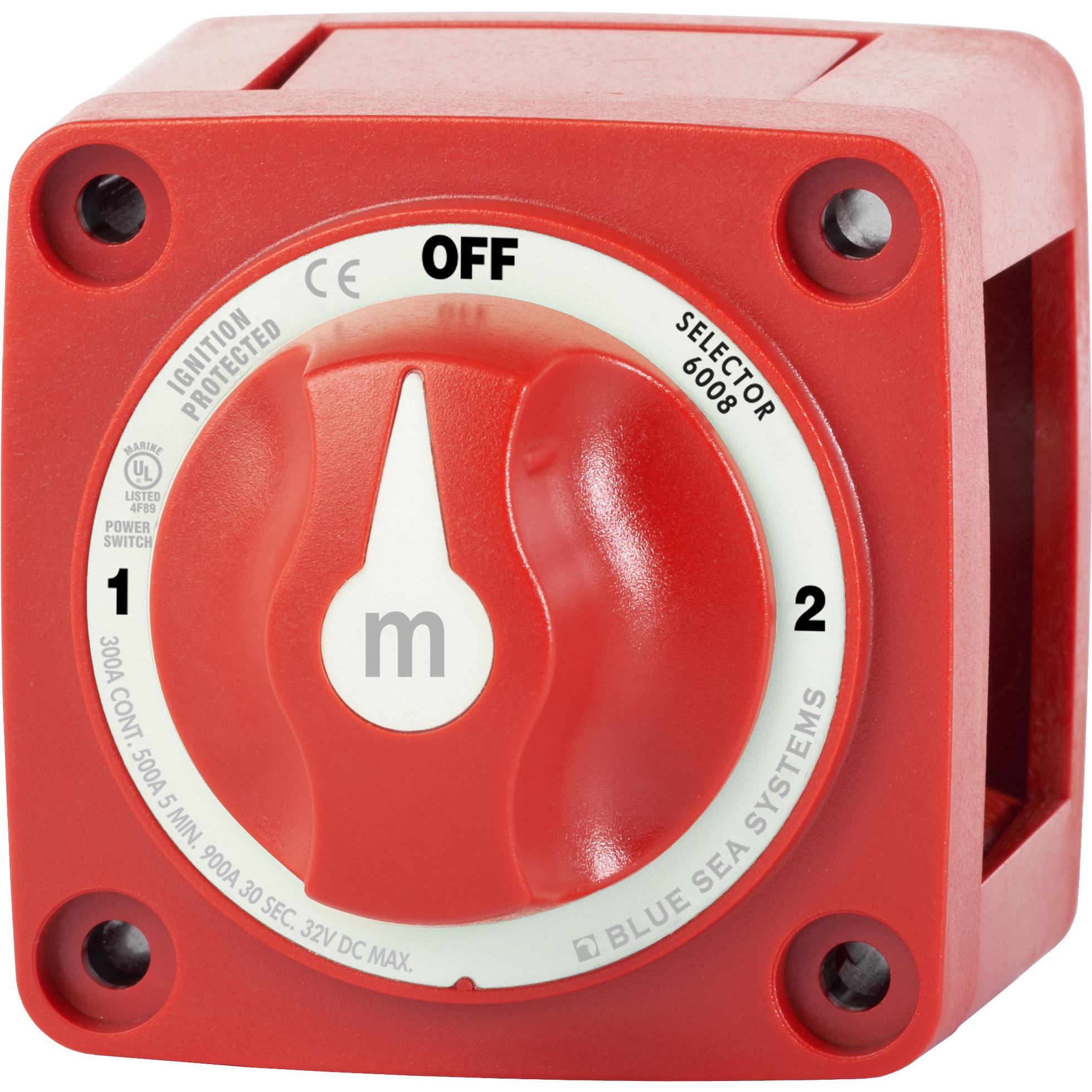

Blue Sea 6008 Marine m-Series Selector 3 Position Battery Switch - Red
By Blue Sea
By Blue Sea
| Part # | 6008 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 1 lbs |
$45.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 6008 Marine m-Series Selector 3 Position Battery Switch - Red
Overview
Switches a single battery to a single load group.
Features
Specifications
Overview
Switches a single battery to a single load group.
Features
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
- Switch Type: Selector 3 Position
- Color: Red
- Switch Positions: 3
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8"
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 Min)
- Cranking Rating 30 sec: 900A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
4/0 AWG (130mm²) - Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 0.77lb (0.35 kg)
$45.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.77 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 6008 |
| Part # | 6008 |
| Product Type | m-Series Battery Switch |
| Shipping Dims | 8" x 4" x 4" |
| Shipping Wt | 1 lbs |
| UPC | 632085060084 |
| Warranty | 5 Year |
