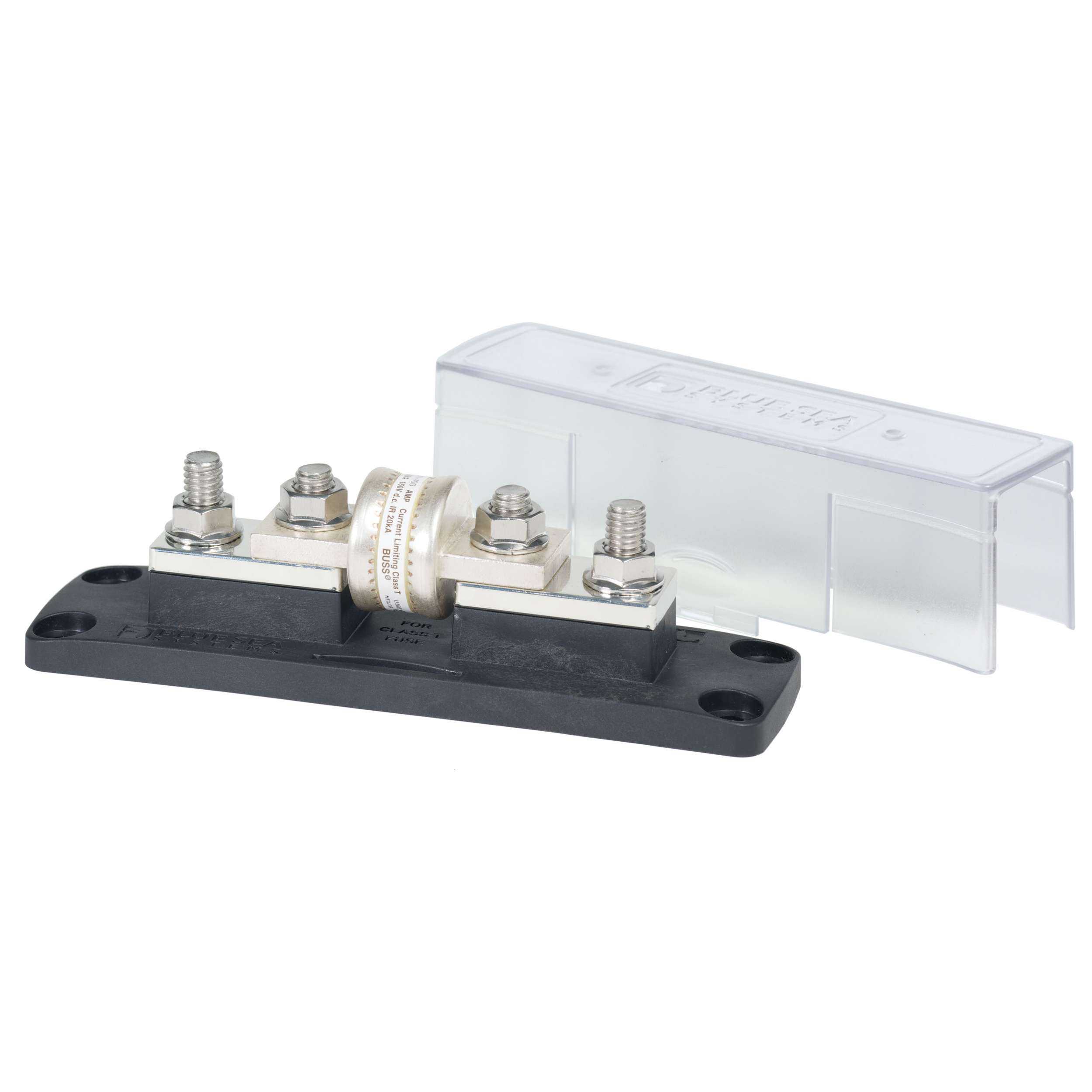

Blue Sea 5502 Class T Fuse Block with Insulating Cover Large 225A-400A DC Marine
By Blue Sea
Part #5502
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$53.66 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
16 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems class T fuse block for larger battery banks. Part number 5502. High interrupt capacity. Accepts class T fuses from 225A to 400A DC. Fuse sold separately.

Features
  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat dissipating tin-plated copper mounting blocks
  • Two #8 accessory terminals located on each end
  • Fuse sold separately

Specifications
  • Maximum Amperage: 400A
  • Maximum Voltage: 160V DC
  • Fuse Mounting Blocks: Tin-Plated Copper
  • Maximum Cable Size: 4/0 AWG
  • Maximum Torque: 190 in-lb (21.47 Nm)
  • Mounting Holes: Accept 1/4 (M6) Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.10lb (0.5 kg)
Share this product:
PinterestTwitterFacebook

$53.66 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
16 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorClear
Made InMexico
Item Weight1.1 lbs
ManufacturerBlue Sea Systems
Manufacturer #5502
ModelBlue Sea 5502
Part #5502
Product TypeClass T Fuse Block
Shipping Dims9" x 7" x 3"
Shipping Wt2 lbs
UPC632085055028
Warranty5 Year
