Blue Sea 5136 ANL Fuse 400 Amp Marine 12V 24V 32V DC Boat Circuit 400A
By Blue Sea
Part #5136
Warranty5 Year
Made InMexico
Shipping Wt0.3 lbs

$25.95 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Description

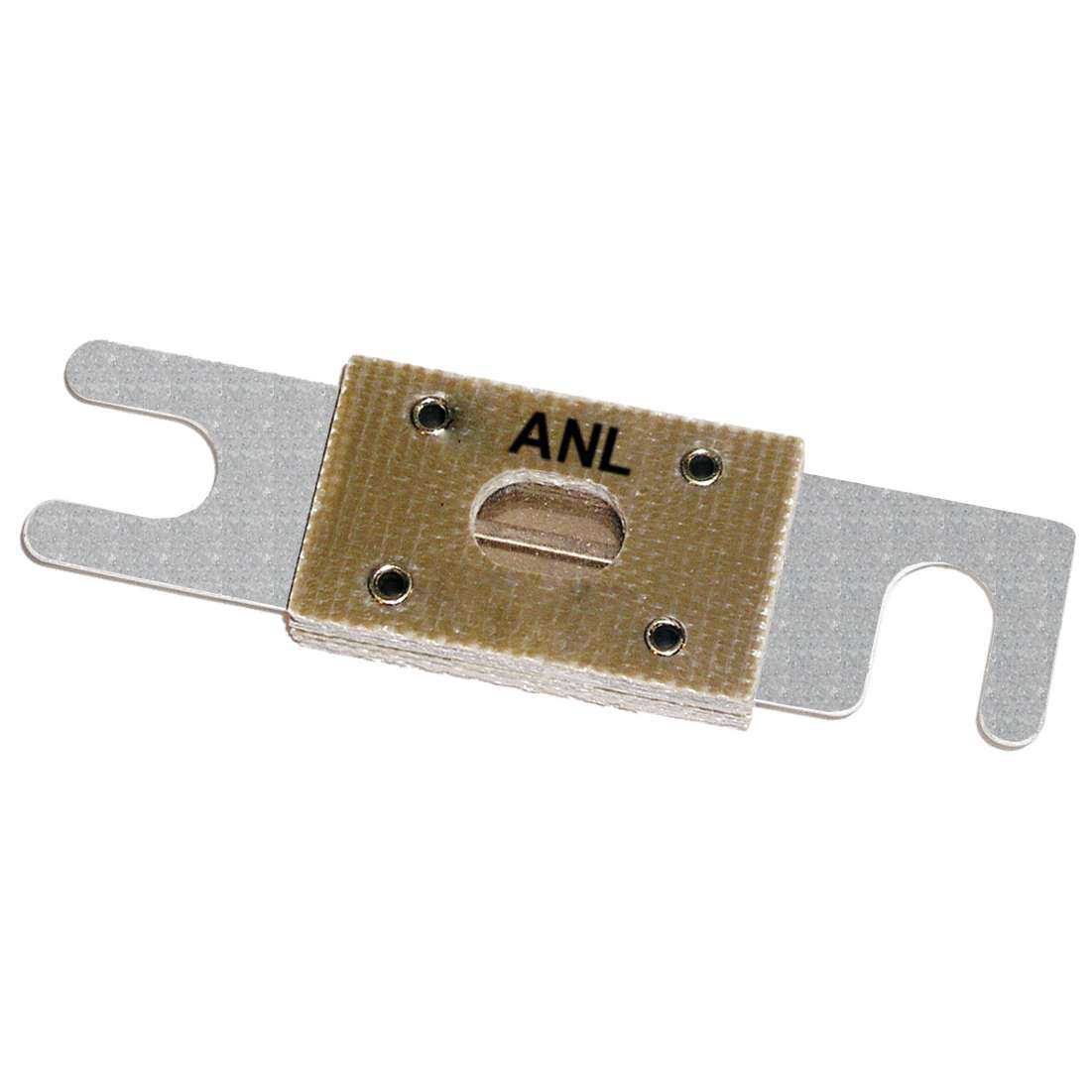

New Blue Sea Systems ANL Fuse - 400 Amp. Part number 5136.

Features
  • Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
  • Silver-plated connector blades for corrosion resistance
  • Visible indication of blown condition
  • 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
  • For use with Blue Sea Systems' ANL Fuse Blocks

Specifications
  • Amperage: 400A
  • Ignition Protected: Yes
  • Maximum Voltage: 32V DC
  • Interrupt Capacity: 6000A @ 32V DC
  • Weight: 0.08lb (0.04 kg)
Share this product:
PinterestTwitterFacebook

$25.95 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.1 lbs
ManufacturerBlue Sea Systems
Manufacturer #5136
ModelBlue Sea 5136
Part #5136
Product TypeANL Fuse
Shipping Dims7" x 4" x 3"
Shipping Wt0.3 lbs
Size400A
UPC632085051365
Warranty5 Year
