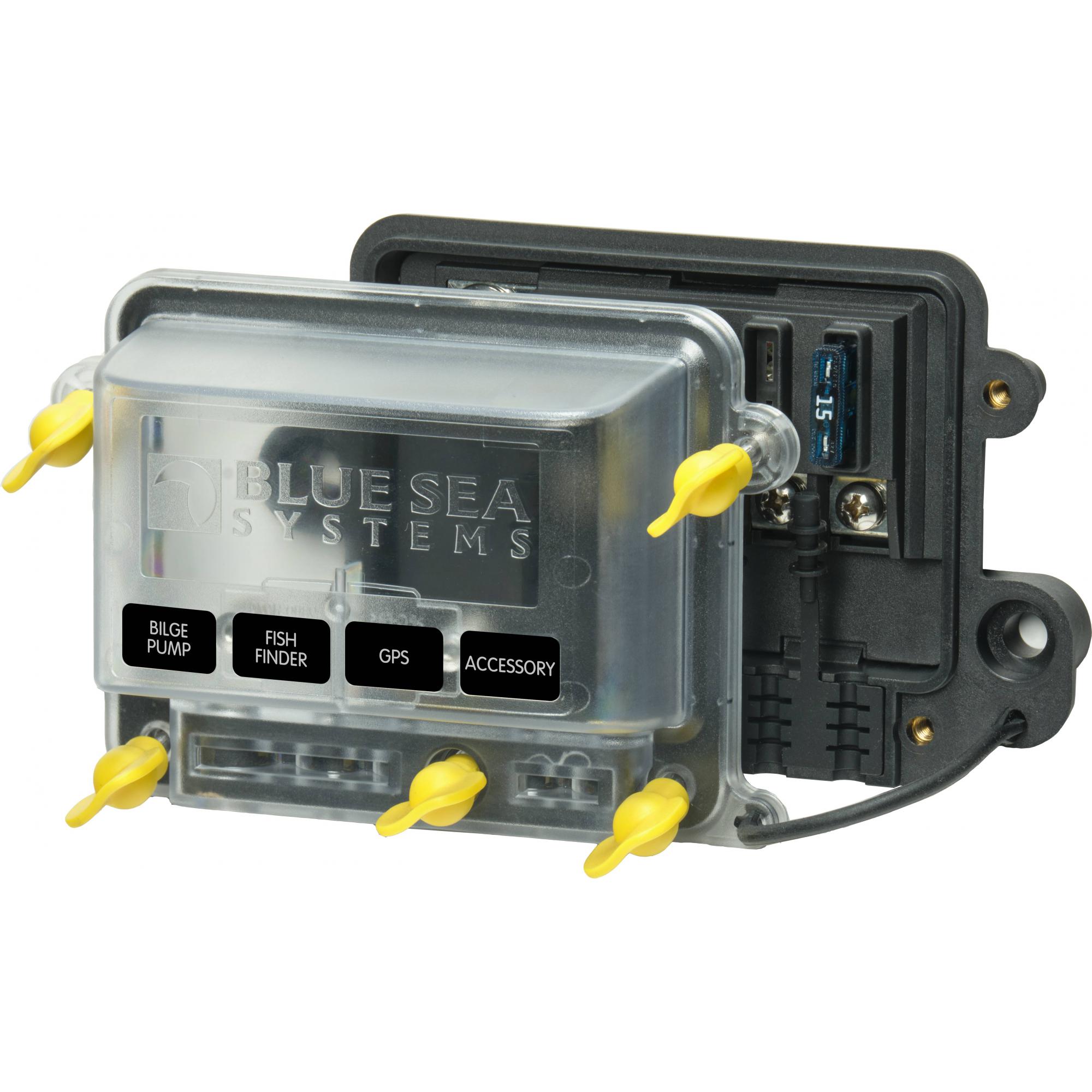

Blue Sea 5056100 Marine ST-Blade Water-Resistant Fuse Block: Manual Cover

Overview
Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint.

Features

• Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast-acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• 5056100 meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Spare fuse and fastener storage in cover
• Fuses and circuit breakers sold separately
• Wing-screws designed for tool-free installation of cover to meet ABYC compliance

Specifications

• Amperage: 80A per block
  25A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Clearance for 1/4" (6mm) screws
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Wire Size: (1) 8 AWG to 4 AWG - Input
  (4) 16 AWG to 10 AWG - Load
