Blue Sea 4180 Marine 15A Backlit Push Button Switch OFF-ON Boat Electrical
By Blue Sea
By Blue Sea
| Part # | 4180 |
|---|---|
| Warranty | 5 Year |
| Shipping Wt | 0.6 lbs |
$53.44 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

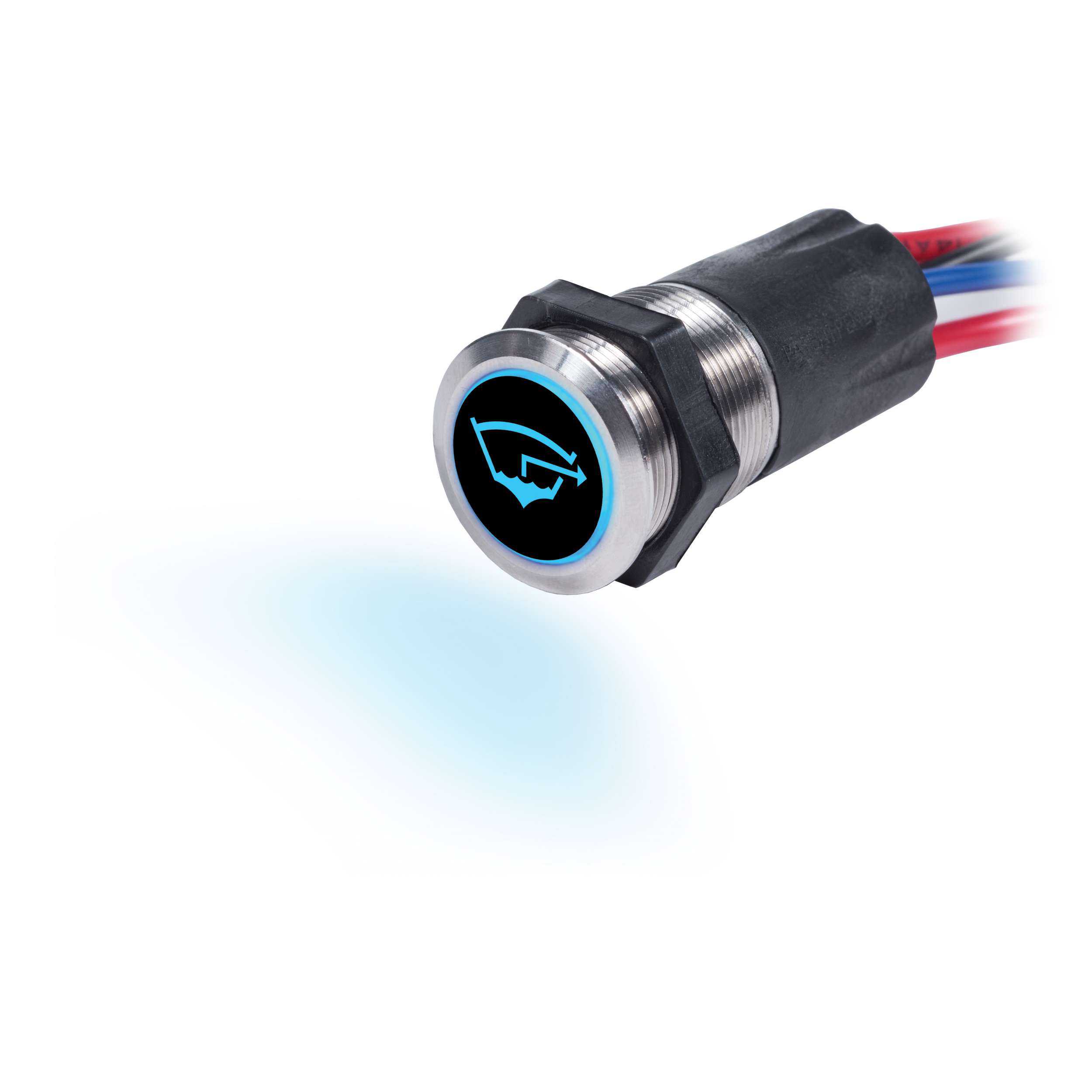

Blue Sea Systems 4180. 15A Backlit Push Button Switch OFF-ON.
Features
Specifications
Features
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications
- Action: OFF-ON
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20 degreeC to 55 degreeC
- Termination: 3" - Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG, Red & Red/White Wires 14AWG
$53.44 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | China |
| Item Weight | 0.4 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 4180 |
| Model | Blue Sea 4180 |
| Part # | 4180 |
| Product Type | Switch |
| Shipping Dims | 9" x 3" x 2" |
| Shipping Wt | 0.6 lbs |
| UPC | 632085041809 |
| Warranty | 5 Year |
