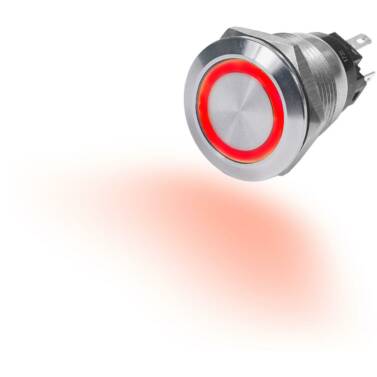

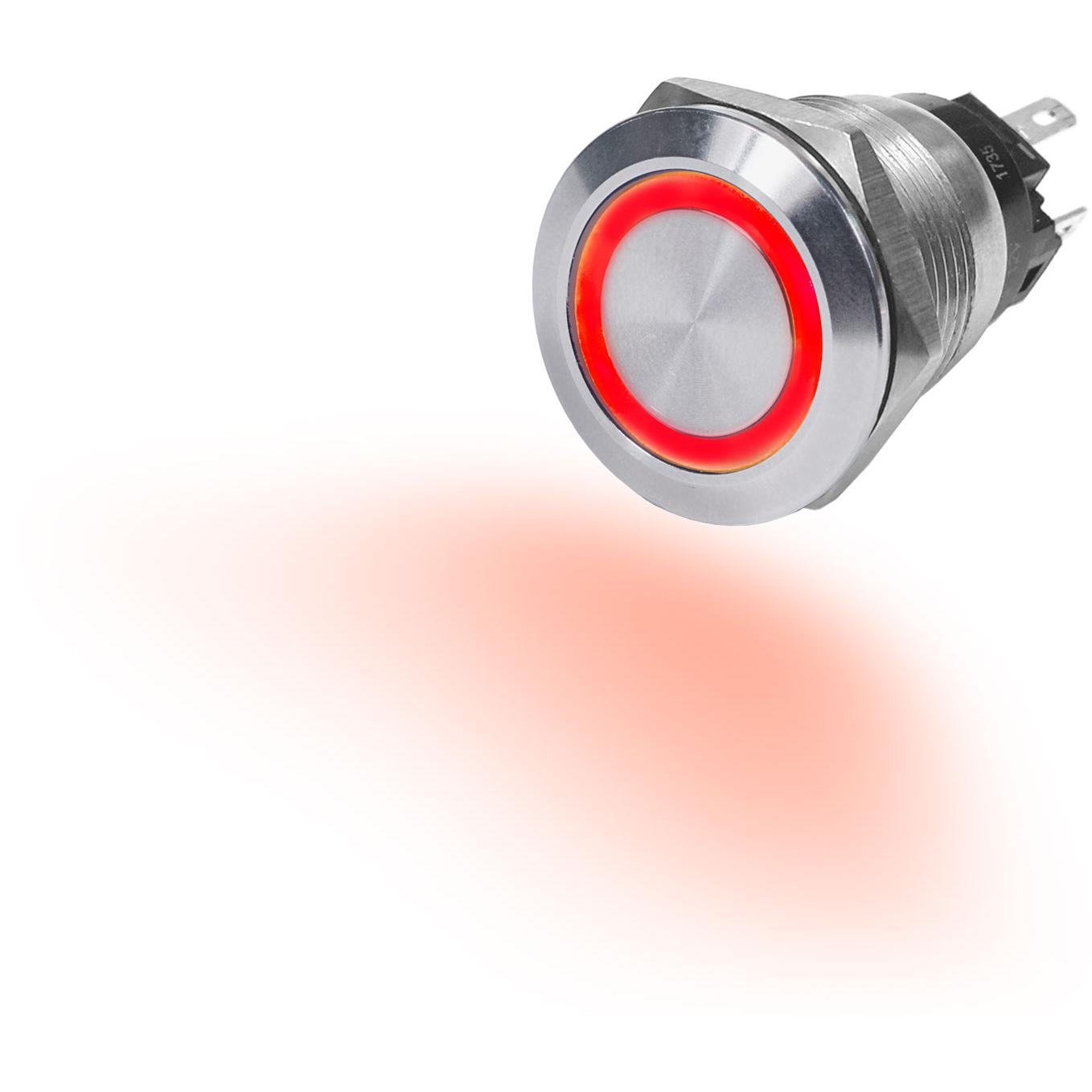

Blue Sea 4163 Marine 10A Push Button LED Ring Switch OFF-(ON) Red
By Blue Sea
Part #4163
Warranty5 Year
Shipping Wt0.4 lbs

$23.59 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock
Pay in 4 interest-free payments with

Product Description

Blue Sea 4163 Marine 10A Push Button LED Ring Switch OFF-(ON) Red

Features
  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Available in Blue & Red
  • Available in momentary and non-momentary
  • Installs with .110inch quick connects (included in retail package)

Specifications
  • Action: OFF-(ON)
  • Amperage: 10A @ 12V DC Resistive
    3A @ 12V Inductive
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -30 degree C
  • Maximum Operating Temperature: 70 degree C
  • Minimum Storage Temperature: -55 degree C
  • Maximum Storage Temperature: 85 degree C
  • Illumination: Independent - Separate contacts for LED power
  • Max Panel Thickness: 0.31in (7.87 mm)
  • Mounting Hole: -3/4 " (19mm)
  • Switching Cycles: 40,000
  • Termination: 5 - 0.110inch Quick Connect terminals
  • Weight: 0.20lb (0.09 kg)
Share this product:
PinterestTwitterFacebook

$23.59 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InChina
Item Weight0.2 lbs
ManufacturerBlue Sea Systems
Manufacturer #4163
Part #4163
Product TypePush Button Switch
Shipping Dims6" x 4" x 4"
Shipping Wt0.4 lbs
UPC632085041632
Warranty5 Year
