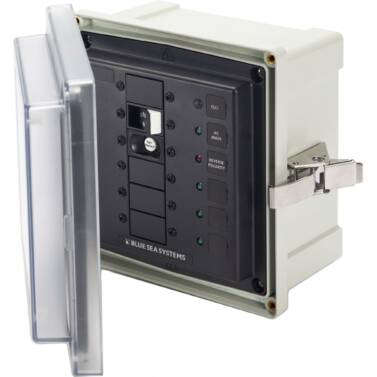

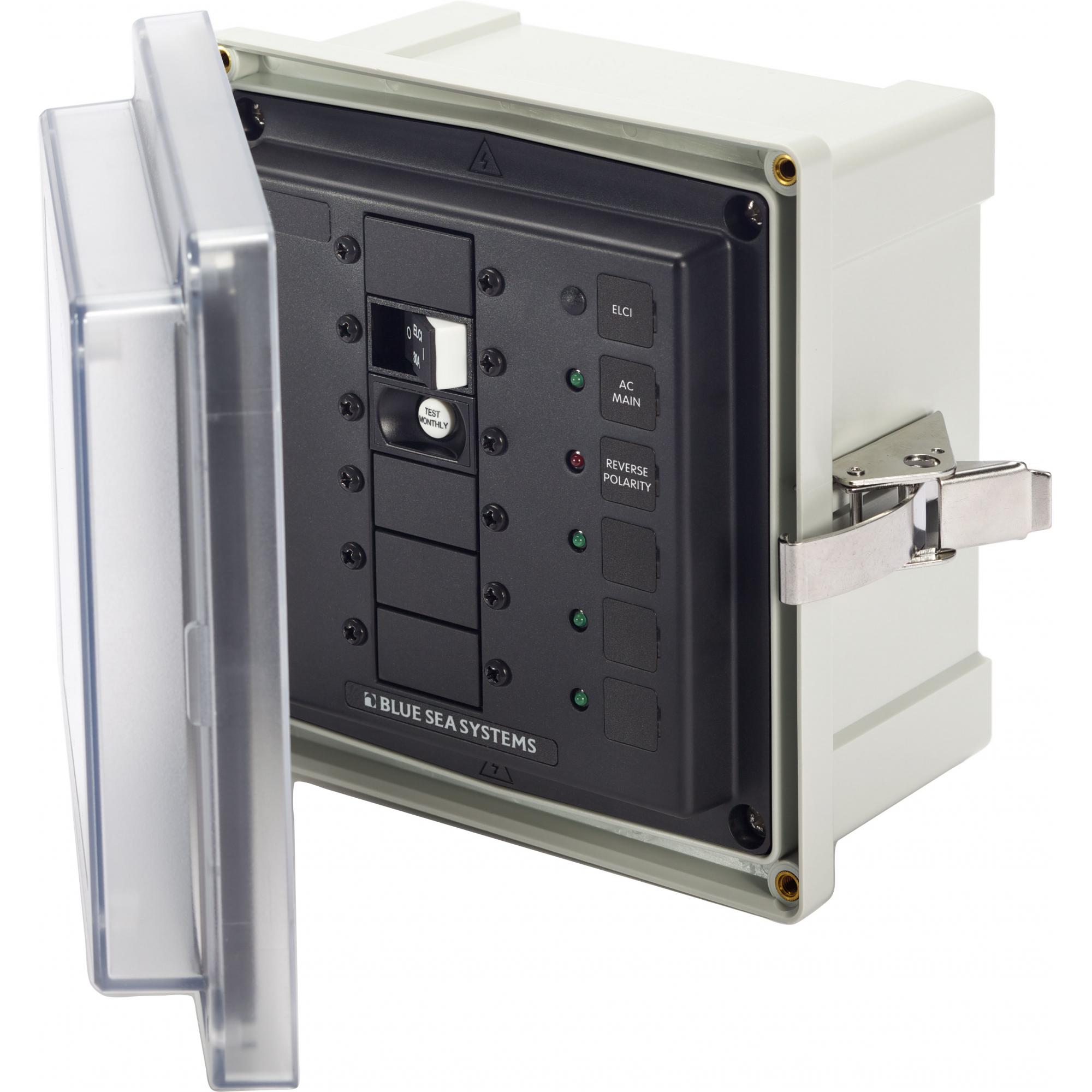

Blue Sea 3116 Surface Mount System Panel Enclosure 120V AC / 30A ELCI Main

Overview
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet.

Features

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Specifications

• Minimum Operating Temperature: -40 degree C
• Maximum Operating Temperature: 85 degree C
• Cover Screws and Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0" x 6.0" x 4.0"
  (152mm x 152mm x 102mm)
• Exterior Overall Dimensions: 7.6" x 7.4" x 4.7"
  (192mm x 188mm x 120mm)
• Mounting Hardware: 1/4" Diameter, #12 (6 mm)
• Weight: 7.00lb (3.18 kg)
