Blue Sea 2702 DualBus 100A BusBar 10 Circuit Marine 12V 24V 32V 48V DC 240V AC
By Blue Sea
Part #2702
Warranty5 Year
Made InMexico
Shipping Wt0.5 lbs

$21.66 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Description

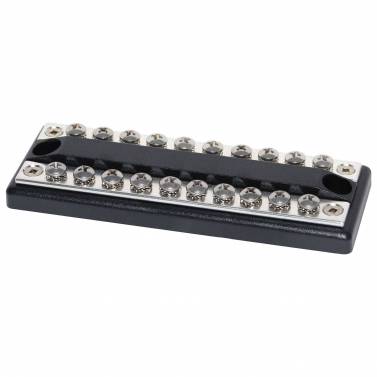

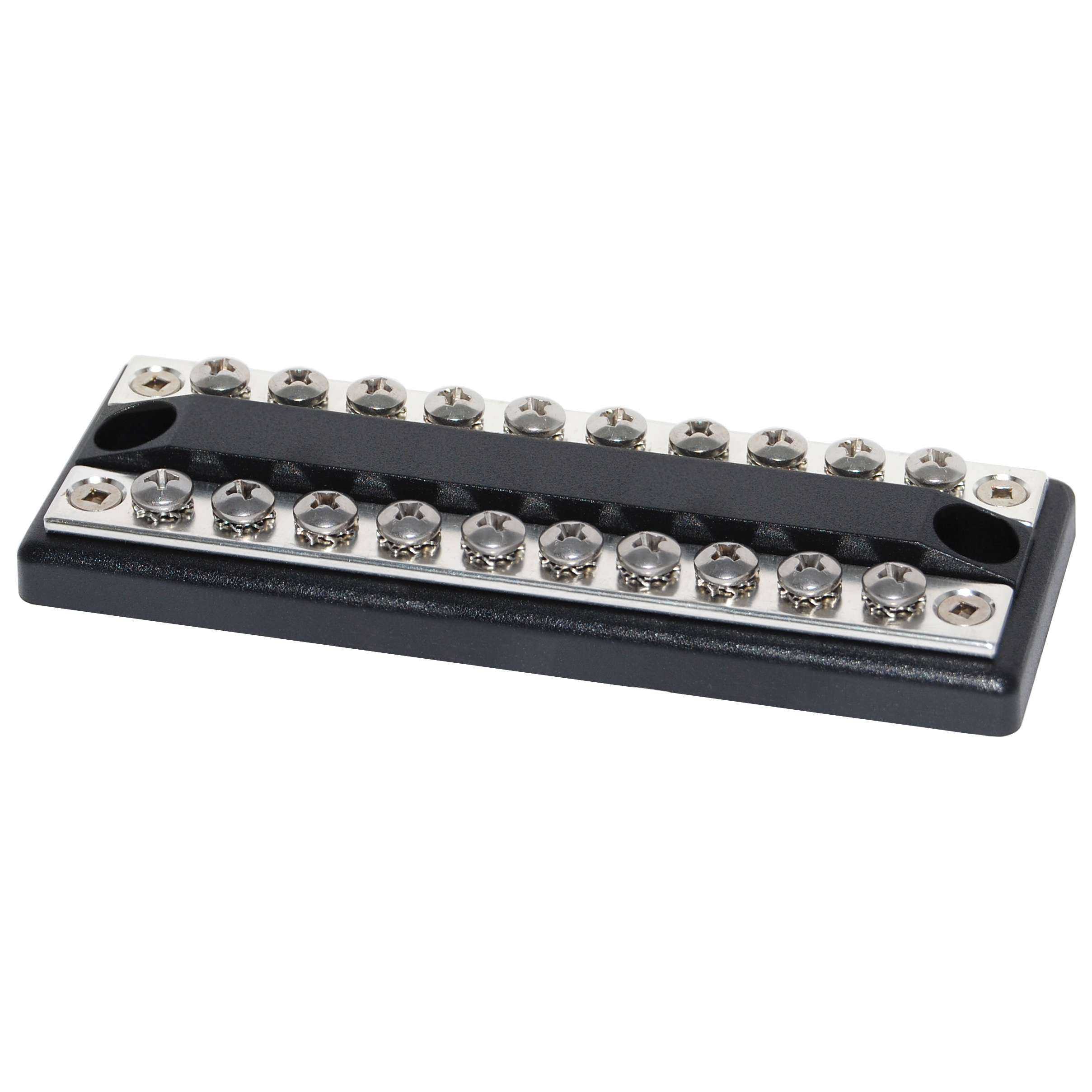

New Blue Sea Systems DualBus 100A BusBar - 10 Circuit. Part number 2702.

Features
  • Combines negative and positive buses on one block

Specifications
  • Maximum Voltage: 300V AC, 48V DC
  • Number of Screw Terminals: 10 per bus
  • Terminal Type: #8-32 Screw
  • Continuous Rating: 100A
  • Base Material: ABS
  • Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
  • Height: 58 in (15.88 mm)
  • Weight: 0.30lb (0.14 kg)
Share this product:
PinterestTwitterFacebook

$21.66 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.3 lbs
ManufacturerBlue Sea Systems
Manufacturer #2702
ModelBlue Sea 2702
Part #2702
Product TypeBusBar
Shipping Dims10" x 3" x 3"
Shipping Wt0.5 lbs
UPC632085027025
Warranty5 Year
