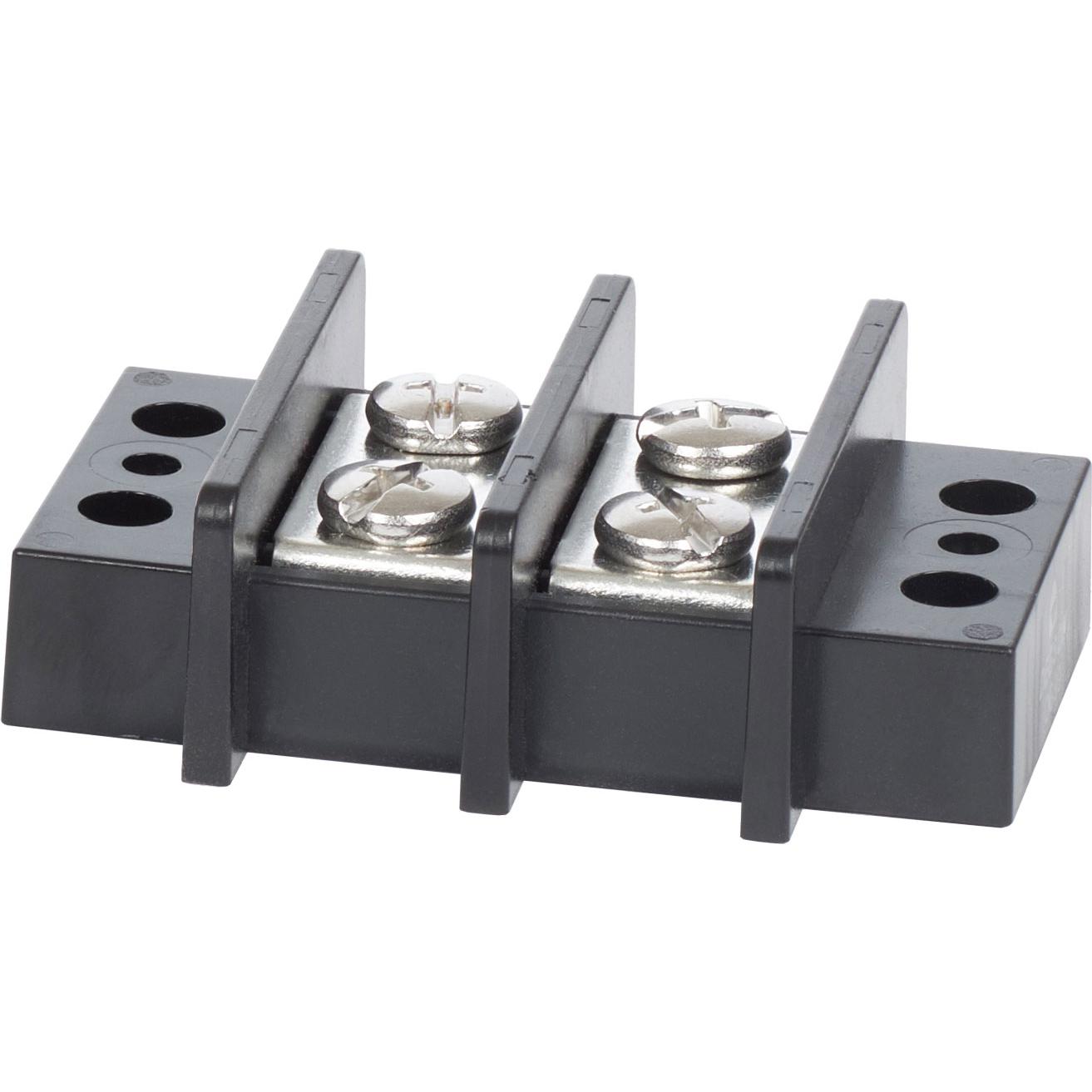

Blue Sea 2602 Marine Terminal Block 65A - 2 Circuit
By Blue Sea
Part #2602
Warranty5 Year
Shipping Wt0.4 lbs

$13.79 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Secured by:

Product Description

Blue Sea 2602 Marine Terminal Block 65A - 2 Circuit

Features
  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits

Specifications
  • Circuits: 2
  • Length: 2.51in (63.75 mm)
  • Maximum Voltage: 600V AC/DC
  • Continuous Rating: 65A
  • Base Material: UL 94 V0, PC
  • Bus Material: Nickel-Plated Brass
  • Mounting Screw: #10 [M5]
  • Screw Material: Stainless Steel
  • Screw Size: #10-32
  • Screw Terminal Torque: 17.5 in-lb (1.98 Nm)
  • Terminal Screws: M5
  • Wire Terminal Size: #10 [M5]
  • Weight: 0.15lb (0.07 kg)
Share this product:
PinterestTwitterFacebook

$13.79 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Secured by:

Product Specifics

BrandBlue Sea
Made InChina
Item Weight0.15 lbs
ManufacturerBlue Sea Systems
Manufacturer #2602
Part #2602
Product TypeTerminal Block
Shipping Dims8" x 6" x 2"
Shipping Wt0.4 lbs
UPC632085026028
Warranty5 Year
