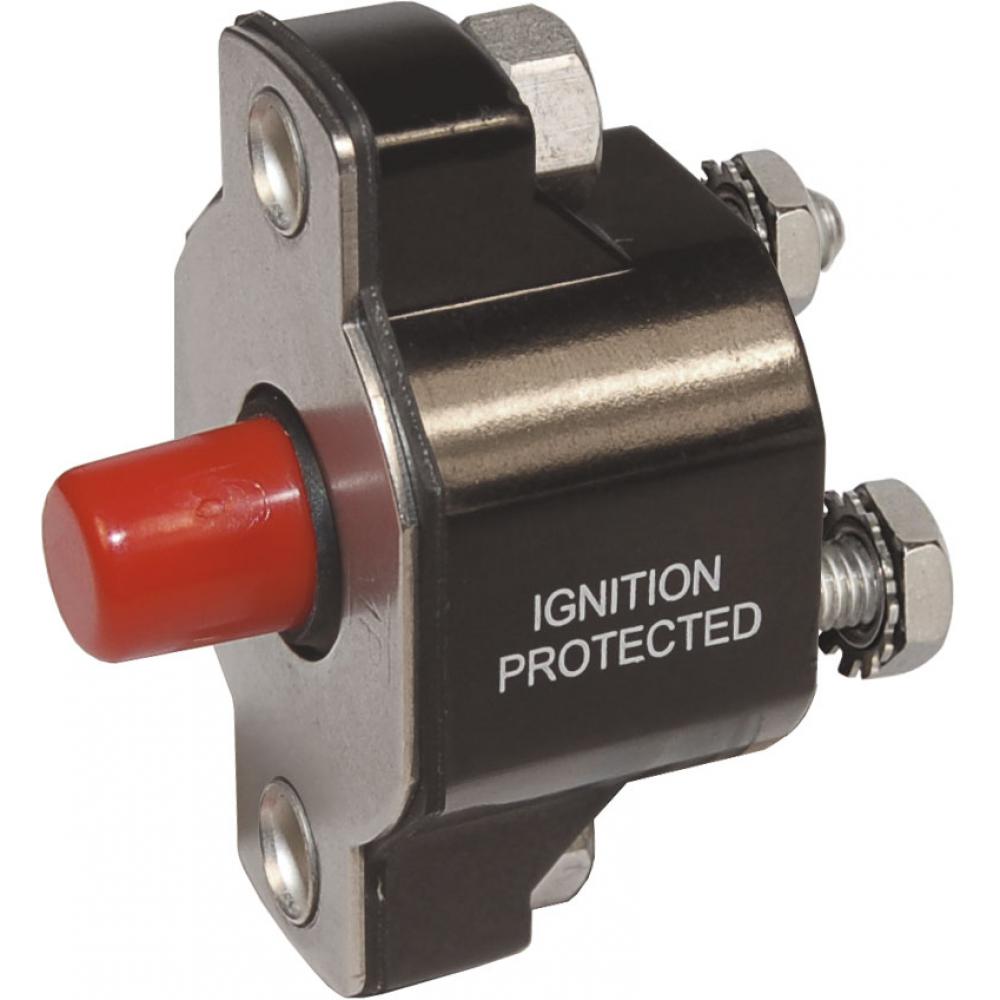

Blue Sea 2138 Marine Medium Duty Push Button Reset Only Circuit Breaker - 15A
By Blue Sea
By Blue Sea
Part # | 2138 |
---|---|
Warranty | 5 Year |
Shipping Wt | 0.4 lbs |
$41.59 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Description
Blue Sea 2138 Marine Medium Duty Push Button Reset Only Circuit Breaker - 15A
Features
Specifications
Features
- Weatherproof
- Can be used as Main, Branch, or 24 hour circuit protection
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
Specifications
- Amperage: 15A
- Maximum Voltage: 120V AC
32V DC - Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Stud: #10-32 Stainless Steel
- Terminal Stud Torque: 30 in-lb (3.39 Nm)
- Interrupt Capacity: 3000A @ 120V AC
5000A @ 32V DC - Minimum Operating Temperature: -54 degree C
- Maximum Operating Temperature: 74 degree C
- Mounting Screw Thread: #8-32
- Weight: 0.16lb (0.07 kg)
$41.59 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Specifics
Brand | Blue Sea |
---|---|
Made In | China |
Item Weight | 0.16 lbs |
Manufacturer | Blue Sea Systems |
Manufacturer # | 2138 |
Part # | 2138 |
Product Type | Circuit Breaker |
Shipping Dims | 8" x 6" x 2" |
Shipping Wt | 0.4 lbs |
UPC | 632085021382 |
Warranty | 5 Year |
