Blue Sea 2126 MaxiBus 250A BusBar Six 5/16"-18 Studs
By Blue Sea
By Blue Sea
| Part # | 2126 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$60.88 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

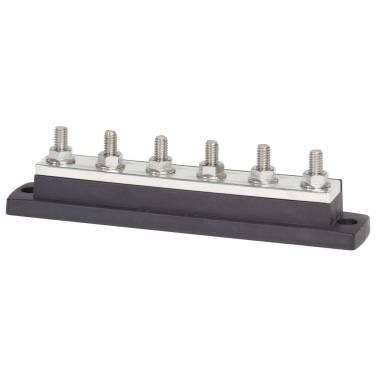

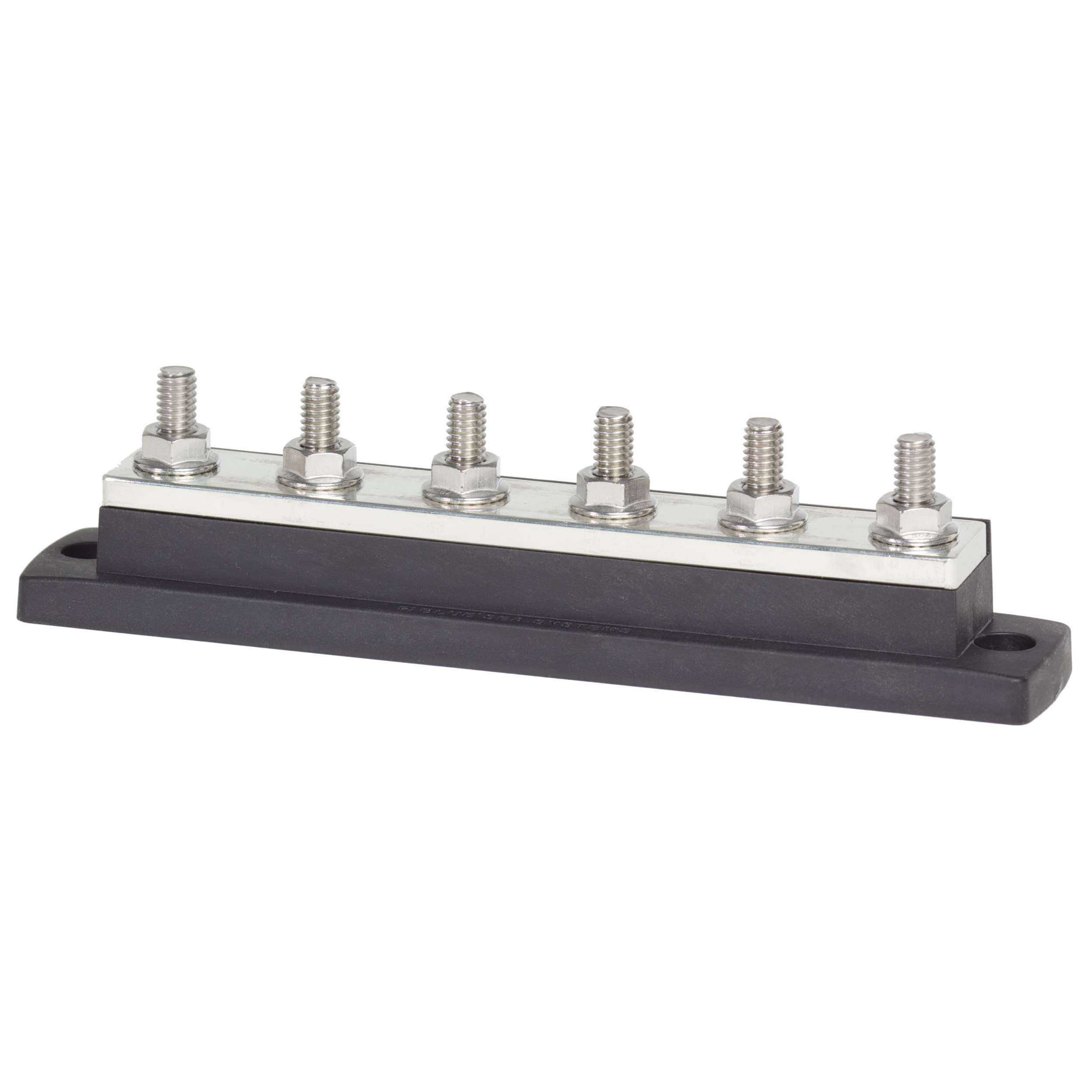

New Blue Sea Systems MaxiBus 250A BusBar - Six 5/16"-18 Studs. Part number 2126. Busbars are used to consolidate multiple wires or feed multiple circuits.
Features
Specifications
Features
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
Specifications
- Maximum Voltage: 300V AC, 48V DC
- Number of Terminal Studs: 6
- Terminal Type: 5/16"-18 Stud
- Continuous Rating: 250A
- Base Material: UL 94-V0
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Recommended Torque: 132 in-lb (14.91 Nm)
- Weight: 0.80lb (0.36 kg)
$60.88 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1 lb |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2126 |
| Model | Blue Sea 2126 |
| Part # | 2126 |
| Product Type | BusBar |
| Shipping Dims | 9" x 3" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085021269 |
| Warranty | 5 Year |
