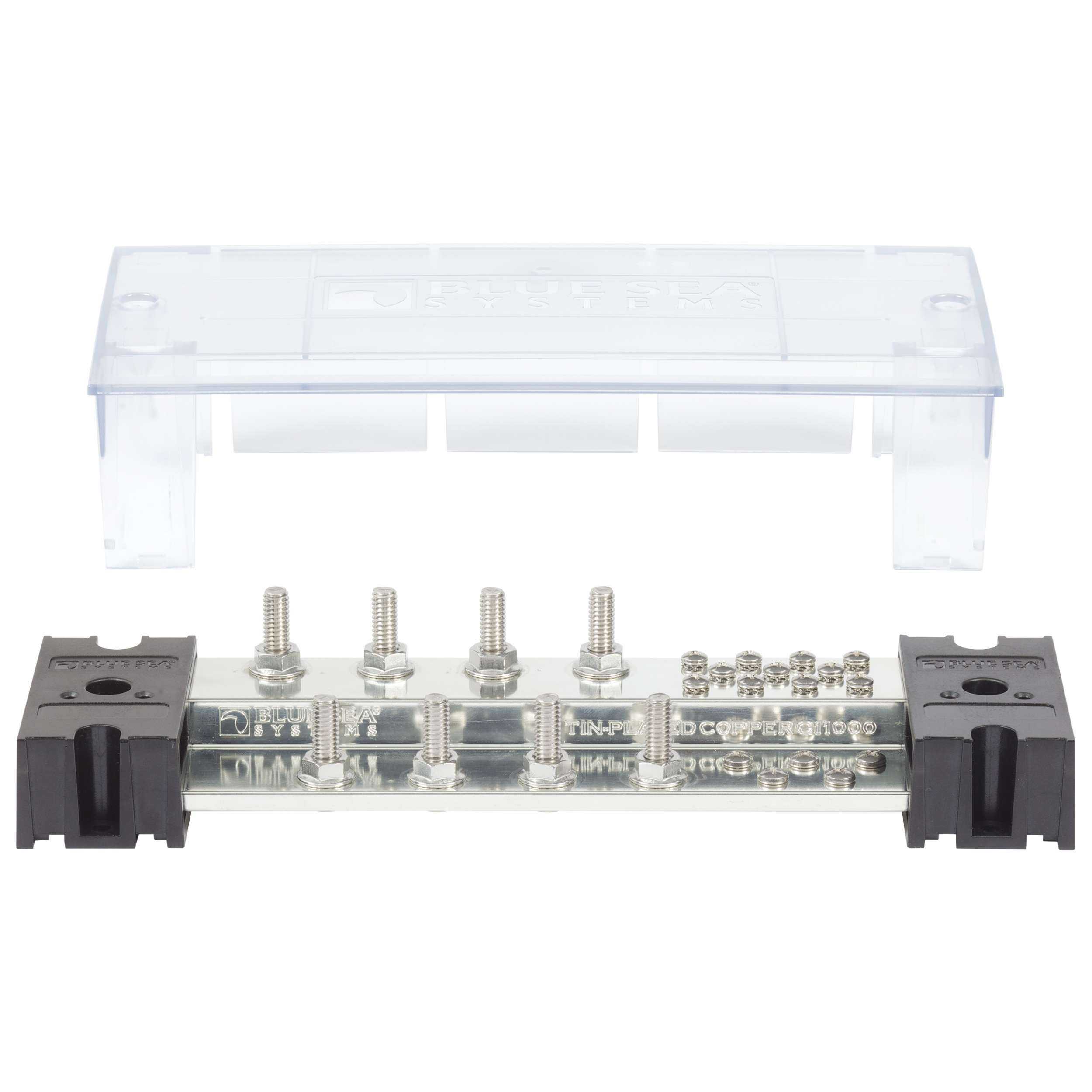

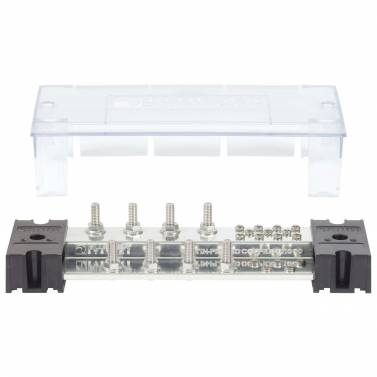

Blue Sea Systems 1992. PowerBar 1000 - 8 5/16" Terminal Studs. Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features

• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity
• Stepped bus design offers two elevations for conductors which doubles
the density of the wire loom compared to traditional bus bars
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• One-piece serrated flange nuts ensure correct and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Busbar may be cut to a shorter length to accommodate constricted spaces
• Bi-directional busbar end caps allow the ganging of additional busbars
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specifications

• Maximum Voltage: 150V
• Number of Terminal Studs: 8
• Terminal Type: 5/16" - 18 Stud
• Continuous Rating: 1000A
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts #10 (M5) Screws
