Blue Sea 1838 M2 AC Multimeter OLED Display Circuit Voltage Current Monitor Boat
By Blue Sea
Part #1838
Warranty5 Year
Made InUnited States
Shipping Wt2 lbs

$287.78 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

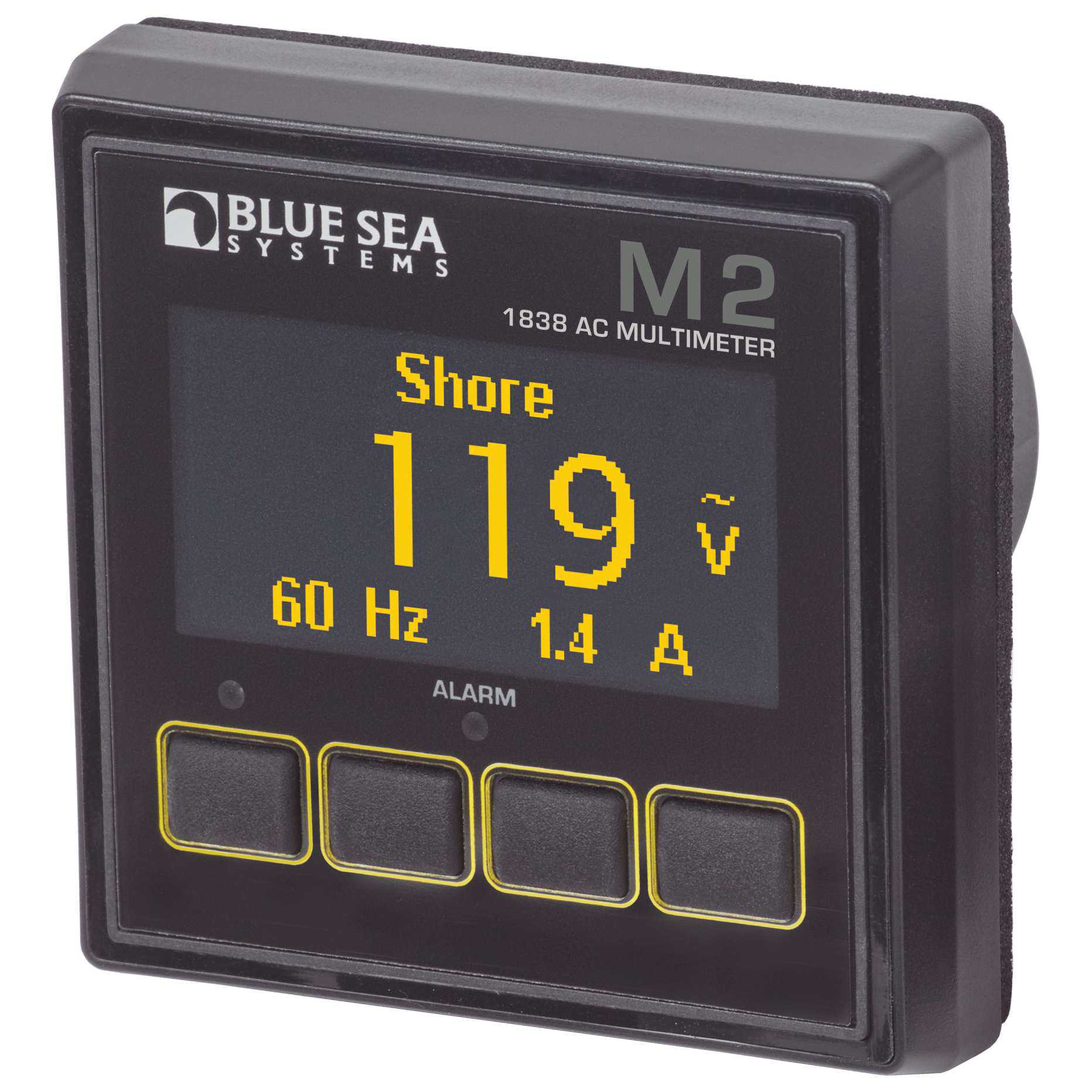

New Blue Sea Systems M2 AC multimeter. Part number 1838. Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage, and Hz (measures 2 voltages and 2 circuits).

Features
  • Auto-dimming, bright OLED display is easy to read
  • Easy to adjust
  • 80dB alarm on all models
  • Isolated MOSFET relay

Specifications
  • Meter: Current, Frequency, Power, Voltage
  • Function: 50 to 250V, to 300A
  • Resolution: 1V AC
  • Alarms: High/Low Current, High/Low Frequency, High/Low Voltage
  • Current Accuracy: +/- 2.0%
  • Display Size: 55mm x 28mm
  • Frequency Range: 40-90Hz
  • Frequency Resolution: 1Hz
  • Input Voltage: 7-70V DC
  • Maximum Power Consumption: 1.00 Watt
  • Minimum Power Consumption: 0.3 Watt
  • Power Range: 0-45kW
  • Power Resolution: 10W (0-9990W), 0.1kW (10-45kW)
  • Voltage Accuracy: +/- 2.0%
Share this product:
PinterestTwitterFacebook

$287.78 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandBlue Sea
ColorBlack
Made InUnited States
Item Weight0.8 lbs
ManufacturerBlue Sea Systems
Manufacturer #1838
ModelBlue Sea 1838
Part #1838
Product TypeAC Multimeter
Shipping Dims8" x 6" x 3"
Shipping Wt2 lbs
UPC632085018382
Warranty5 Year
