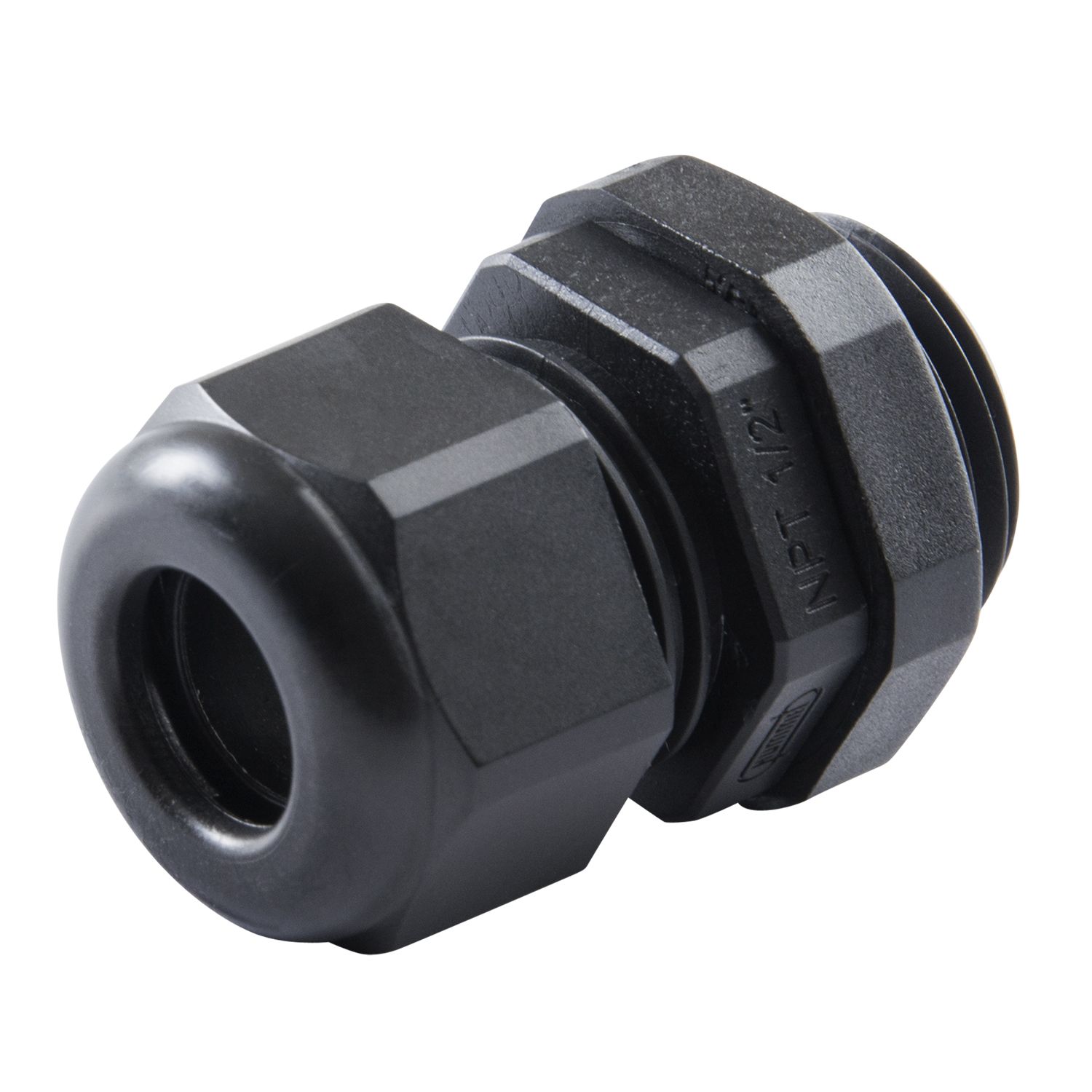

Ancor 765000 Wire Seal, Round Cable, 10-2 AWG, 1/2" NPT
By Ancor
Part #765000
Warranty1 Year
Shipping Wt0.2 lbs

$15.55 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock
Pay in 4 interest-free payments with

Product Description

New Ancor 765000 Wire Seal, Round Cable, 10-2 AWG, 1/2" NPT. Wire seals provide low cost cable entries into panels and junction boxes. They are made of Nylon 6/6 flame resistant, self extinguishing Buna-N form seal. Strain relief fittings are resistant to salt water, acids, alkalis, alcohol, oils and are non-corrosive for use in the marine environment. They are good underwater to 300 feet /91.4 m (150 PSIG) provided there is a liquid tight seal between body and housing. Overlapping clamping spines allow for superior pull-out protection and resistance.

  • All seals exceed NEMA 4 x or 6 specs
  • UL 94 v-0
  • Cable range 0.20-0.47 inches (5 - 12 mm)
  • Thread size 1/2" NPT
  • Thread length 0.51 inches
  • Clearance hole 0.83 inches
Share this product:
PinterestTwitterFacebook

$15.55 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandAncor
Made InChina
Item Weight0.06 lbs
ManufacturerAncora
Manufacturer #765000
MaterialNylon
Part #765000
Product TypeWire Seal
Shipping Dims4" x 4" x 4"
Shipping Wt0.2 lbs
Size1 Piece
UPC091887765007
Warranty1 Year
