ZF 3207199509 Rebuild Kit MB15 Marine Transmission Mechanical Control Block
By ZF
By ZF
| Part # | 3207199509 |
|---|---|
| Warranty | 1 Year |
| Made In | Italy |
| Shipping Wt | 0.9 lbs |
$139.28 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
Genuine new ZF 3207199509 (3207-199-509) rebuild kit for MB15 mechanical control blocks.
Must be installed by a trained professional.
Sealed Kit
This is a sealed kit containing sensitive components. Please confirm it is the correct part number before ordering, and open carefully. A restocking fee will apply to opened returns.

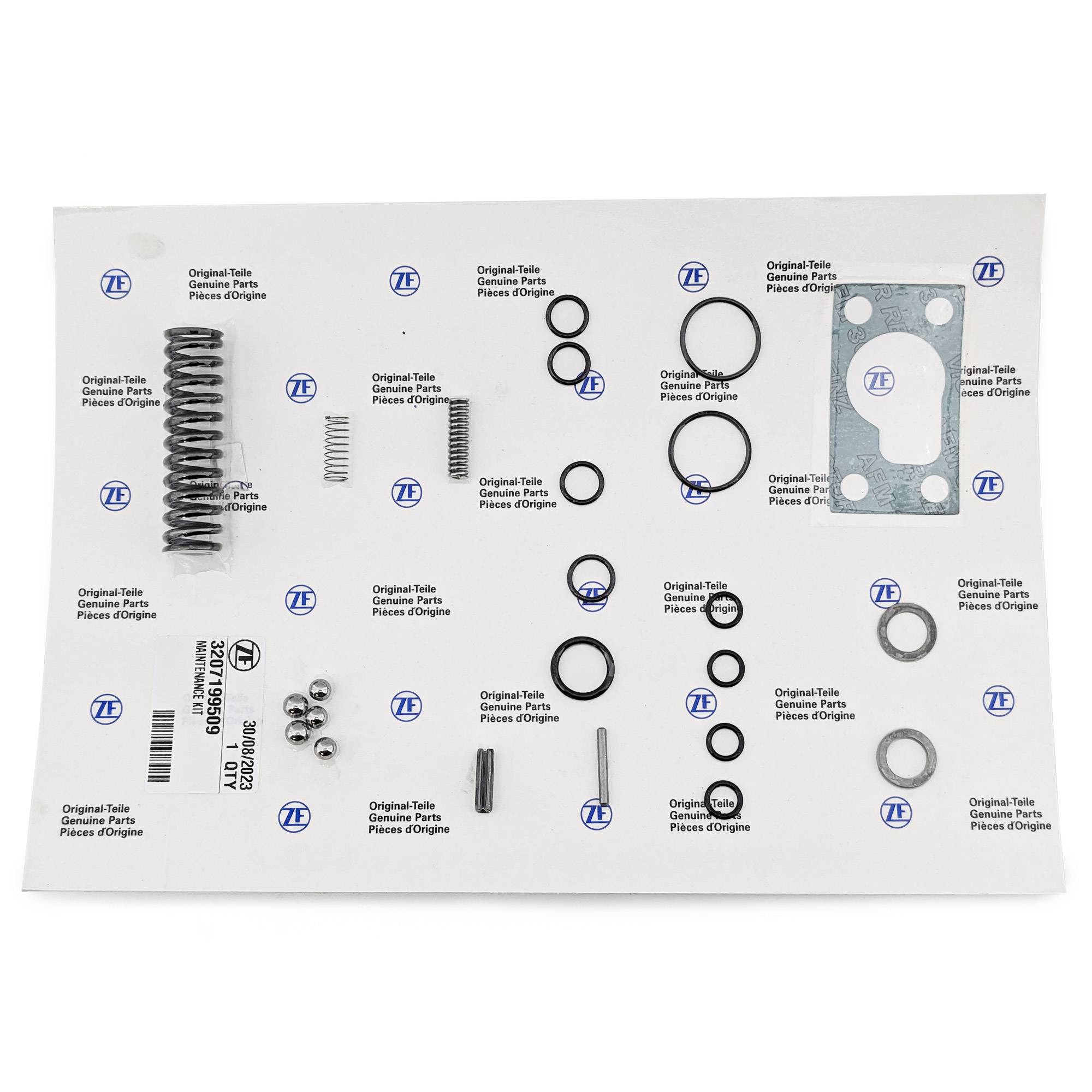

Kit Contents
ZF Transmission Compatibility
Must be installed by a trained professional.
Sealed Kit
This is a sealed kit containing sensitive components. Please confirm it is the correct part number before ordering, and open carefully. A restocking fee will apply to opened returns.
Kit Contents
| Part number | Description | Qty |
|---|---|---|
| 0630004298 (0630-004-298) | Shim 13X19X1,00 DIN988 | 2 |
| 0630004316 (0630-004-316) | Shim 13X19X0,50 DIN988 | 2 |
| 0631302184 (0631-302-184) | Cylindrical Pin 3x24 ISO2338-B-ST | 1 |
| 0631329048 (0631-329-048) | Slotted Pin 5X20 ISO8752-A-ST | 1 |
| 0634303193 (0634-303-193) | O-Ring 10,82X1,78 NBR70-10 | 2 |
| 0634303194 (0634-303-194) | O-Ring 12,42X1,78 NBR70-10 | 1 |
| 0634303812 (0634-303-812) | O-Ring 11,11X1,78 NBR70-10 | 1 |
| 0634304008 (0634-304-008) | O-Ring 15,54X2,62 NBR70-10 | 1 |
| 0634304368 (0634-304-368) | O-Ring 8,73X1,78 NBR70-10 | 4 |
| 0634304369 (0634-304-369) | O-Ring 23,52X1,78 NBR70-10 | 2 |
| 0635460035 (0635-460-035) | Ball 7,144 G20 DIN5401 | 3 |
| 0635460036 (0635-460-036) | Ball 7,938 G20 DIN5401 | 2 |
| 3207308021 (3207-308-021) | Gasket | 1 |
| 3207308024 (3207-308-024) | Spring | 1 |
| 3207308025 (3207-308-025) | Spring | 1 |
| 3217308063 (3217-308-063) | Spring | 1 |
ZF Transmission Compatibility
- 220
- 280, 280A
- 301A, 301C
- 380
$139.28 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | ZF |
|---|---|
| Made In | Italy |
| Item Weight | 0.24 lbs |
| Manufacturer | ZF |
| Manufacturer # | 3207199509 |
| Part # | 3207199509 |
| Product Type | Repair Kit |
| Shipping Dims | 13" x 10" x 5" |
| Shipping Wt | 0.9 lbs |
| UPC | 443590469534 |
| Warranty | 1 Year |
