ZF 15MIV 2.7:1 Marine Boat Transmission V-Drive Hurth HBW150V 3306003003
By ZF
Part #3306003003
Warranty2 Year (1 Year Commercial)
Made InItaly
Shipping Wt52 lbs

$4,404.45 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

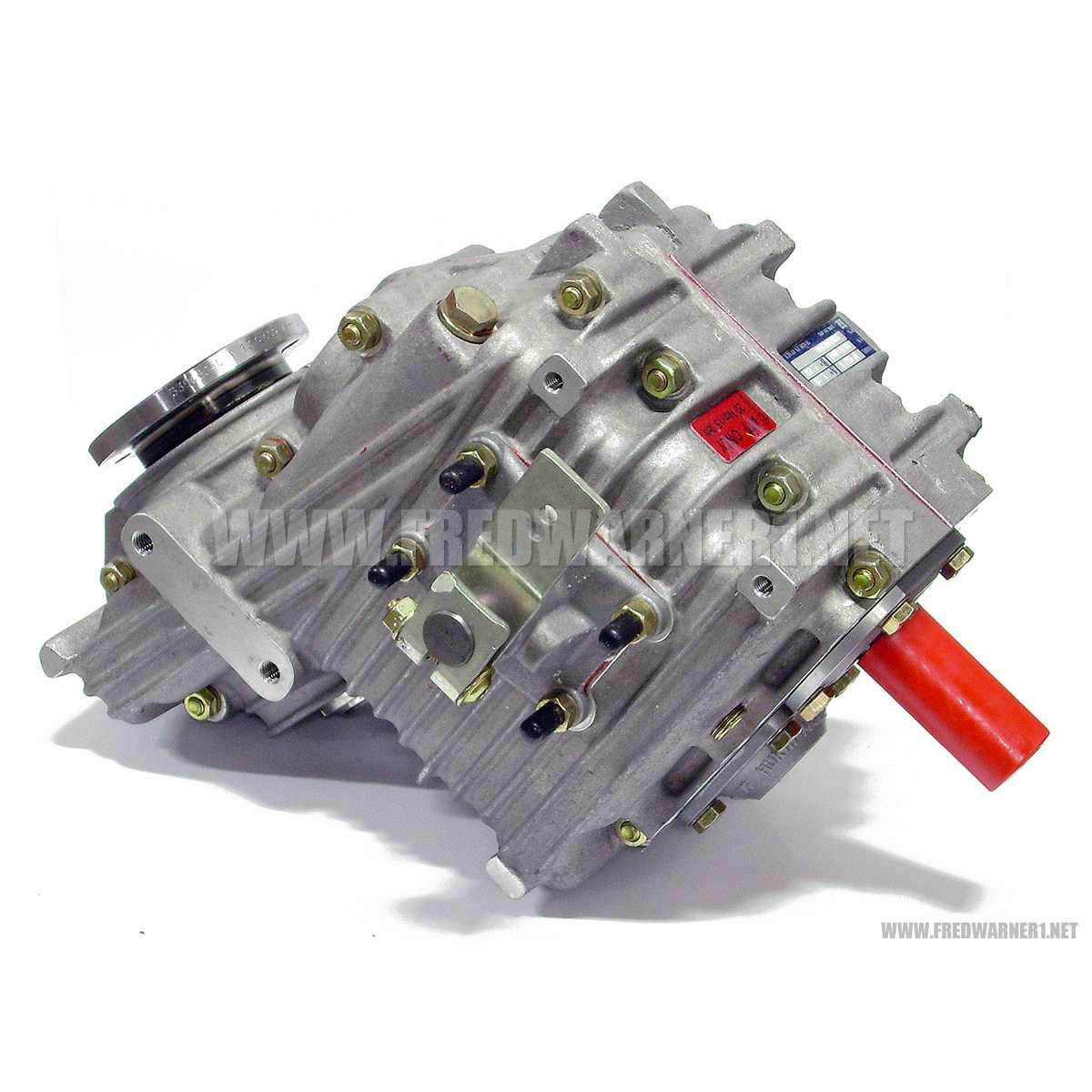

New and unpainted ZF 15MIV marine V-Drive mechanical transmission. Part number 3306003003.

Transmission Specifications
  • Gear Ratio: 2.718:1 (A), 2.224:1 (B)
  • Mechanical Shift
  • 15 Degree Down Angle
  • For standard-rotation engines only (same as automotive rotation)
  • "A" shift position is usually ahead forward; "B" shift position is usually reverse
  • If using "B" for forward, 10-20% reduced power capacity and oil cooler must be used
  • If using 1, 2, or 3 cylinder engine, reduced power capacity due to shock factor (see spec sheet)

Owner's manual included. Sold by a ZF dealer with full warranty. Does not come with any accessories.

Important Guidelines
To improve transmission longevity and preserve the warranty, please follow these guidelines when installing and running your new transmission:

Oil Cooler
For transmissions that use an oil cooler, it is important to have it serviced or buy a new one (and flush the oil lines). If there had ever been water, metal particles, or other debris in the old transmission oil, or the old transmission failed or was slipping, reusing an old oil cooler can cause debris to enter the new transmission through the cooler circuit, which can void the warranty and lead to premature failure.

If you need a new oil cooler, you can view a list of coolers here. The oil cooler used by the transmission will vary depending on the engine make and model, so yours may not be listed. Contact for help if needed.

Damper Plate
Also called a drive plate, this bolts to the flywheel and engages the transmission input splines. It dampens the engine torsional firing impulses to protect the transmission. An old, damaged, or worn out damper plate may not dampen the torsionals as well, leading to premature wear and tear, or in the worst case a complete failure. If you need a new damper, you can view a list of dampers here.

If you're changing from a Volvo MS-series transmission to a ZF, you'll also need to switch from the original spring type to a Centa bushing type damper.

Oil Changes & Fluid Types
Check your transmission oil fluid level regularly and change it following the owner's manual guidelines. Never go more than a year between oil changes. If you aren't sure what oil type to use, here are recommendations:
  • For ZF 12, 15, 25, 30, 45, 63, 68, 80, and 85 series, and Velvet Drive 71C, 72C, 73C, and 5000 series, use an ATF fluid which meets Detroit Diesel Allison C-4 specifications (e.g.: Dexron IIE, Dexron III).
  • For ZF 220 and larger series, use a marine 30W transmission oil (no/low detergent, not multi-grade). In very hot climates 40W is okay.

Oil Filter
For transmissions with an oil filter, replace it as needed following the owner's manual guidelines. Find replacement oil filters here.

Adapter Housing
The adapter housing is what connects the transmission to the engine bellhousing. You can usually reuse your existing one as long as it is not damaged. If you need a new one, see here for a list of common adapter housings.
Share this product:
PinterestTwitterFacebook

$4,404.45 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandZF
ColorUnpainted
Made InItaly
FitsMechanical Shift
Item Weight44.2 lbs
ManufacturerZF
Manufacturer #3306003003
MaterialAluminum
Model15MIV
Part #3306003003
Product TypeBoat Transmission, 15 Degree Down Angle
ReplacesZF 15MIV, Hurth HBW150V
Shipping Dims18" x 14" x 10"
Shipping Wt52 lbs
SizeGear Ratio: 2.7:1
UPC443590350962
Warranty2 Year (1 Year Commercial)
