SeaStar HK6400TS-3 Tilt Hydraulic Steering Kit w/ 28ft Hose HO5128 Outboard Boat
By SeaStar Solutions
Part #HK6328TS-3
Warranty2 Year
Made InCanada
Shipping Wt33 lbs

$2,052.99 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

New SeaStar Solutions HK6400TS-3 SeaStar Tilt hydraulic outboard steering system with SeaStar HO5128 28ft hose kit.

Features
  • 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
  • Standard 3/4" Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8"-18UNF)
  • Patented No FeedBack™ (NFB) Lock Valves
  • Exceeds NMMA and ABYC Standards

Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.

Cylinder/Ram
The HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If your outboards needs the HO5090 spacer kit, you can find it here.

Hoses
This SeaStar kit comes with a 28 foot hose kit, part number HO5128. If you're unsure what length you need, use the measuring guide in the product images. For different lengths go here.

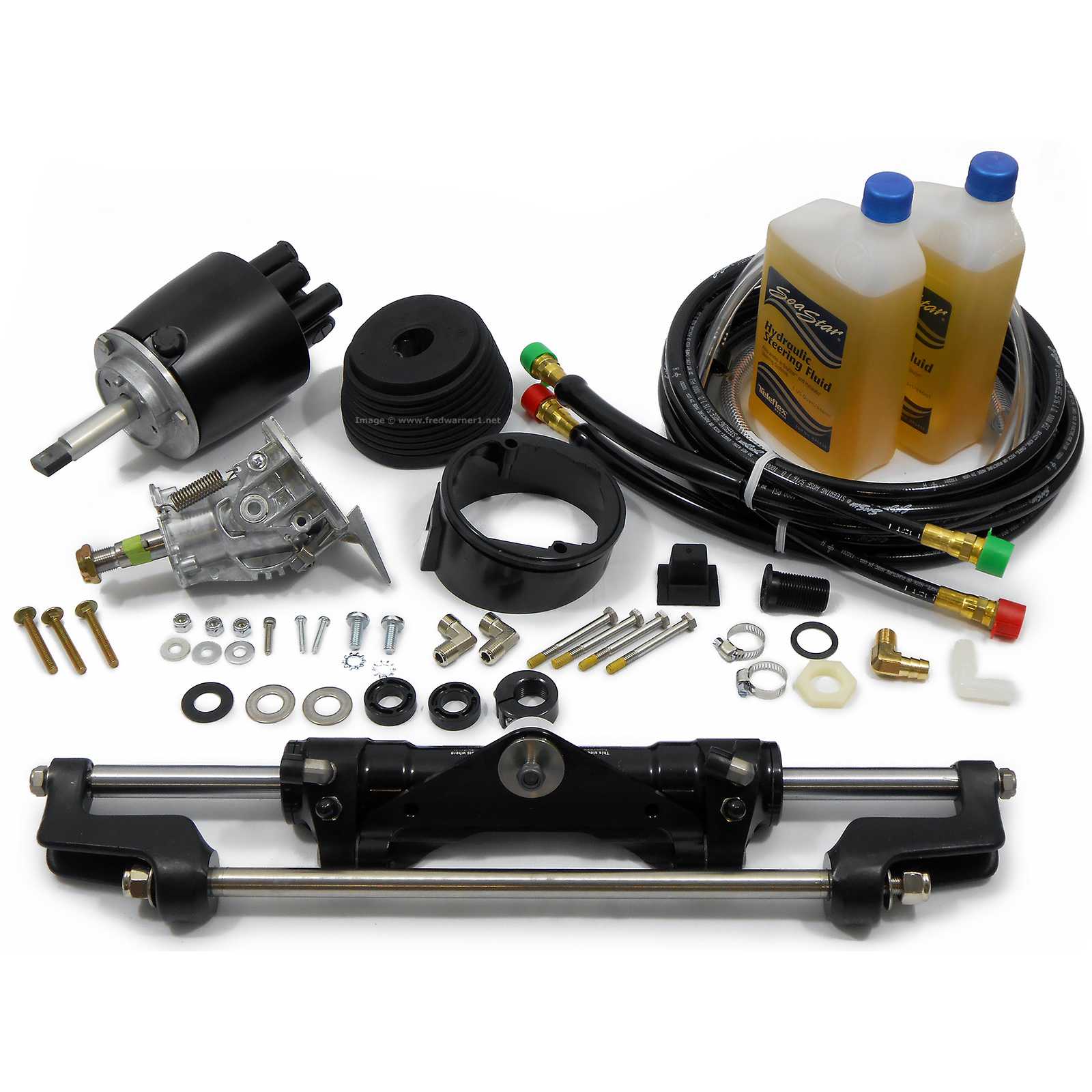

DescriptionPart NumberQty
HelmHH6191-31
CylinderHC5345-31
Hose KitHO5128
Fluid/OilHA5430H2 quarts
Filler KitHA54381
Instructions1
Share this product:
PinterestTwitterFacebook

$2,052.99 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandSeaStar Solutions
Made InCanada
FitsPlease see application guide
Item Weight29.7 lbs
ManufacturerSeaStar Solutions
Manufacturer #HK6400TS-3, HO5128
ModelSeaStar Tilt
Part #HK6328TS-3
Product TypeBoat Steering Kit
ReplacesTeleflex Marine HK6328TS-3
Shipping Dims24" x 12" x 12"
Shipping Wt33 lbs
Size28 Foot
UPC491546000751
Warranty2 Year
