New SeaStar (Teleflex Marine) Safe-T QC mechanical rotary steering system. Part number SS13715. Includes cable, helm, and bezel to fully replace an existing steering system or as part of a new installation. Features a quick-response 3.0-turn lock-to-lock helm and a common 3/4" tapered keyed steering shaft for wheels up to 16". Suitable for most outboards up to 60 HP that have a tilt tube and link arm.

Cable Length (Important!)
This system comes with a 15 foot cable (SS13715). Read the measuring guide in the product photos thoroughly to make sure it is what you need. The 15ft is measured from the helm connector to the end of the stainless shaft that connects to the link arm. If measuring an existing cable and you only measure the cable jacket, it will be too short!

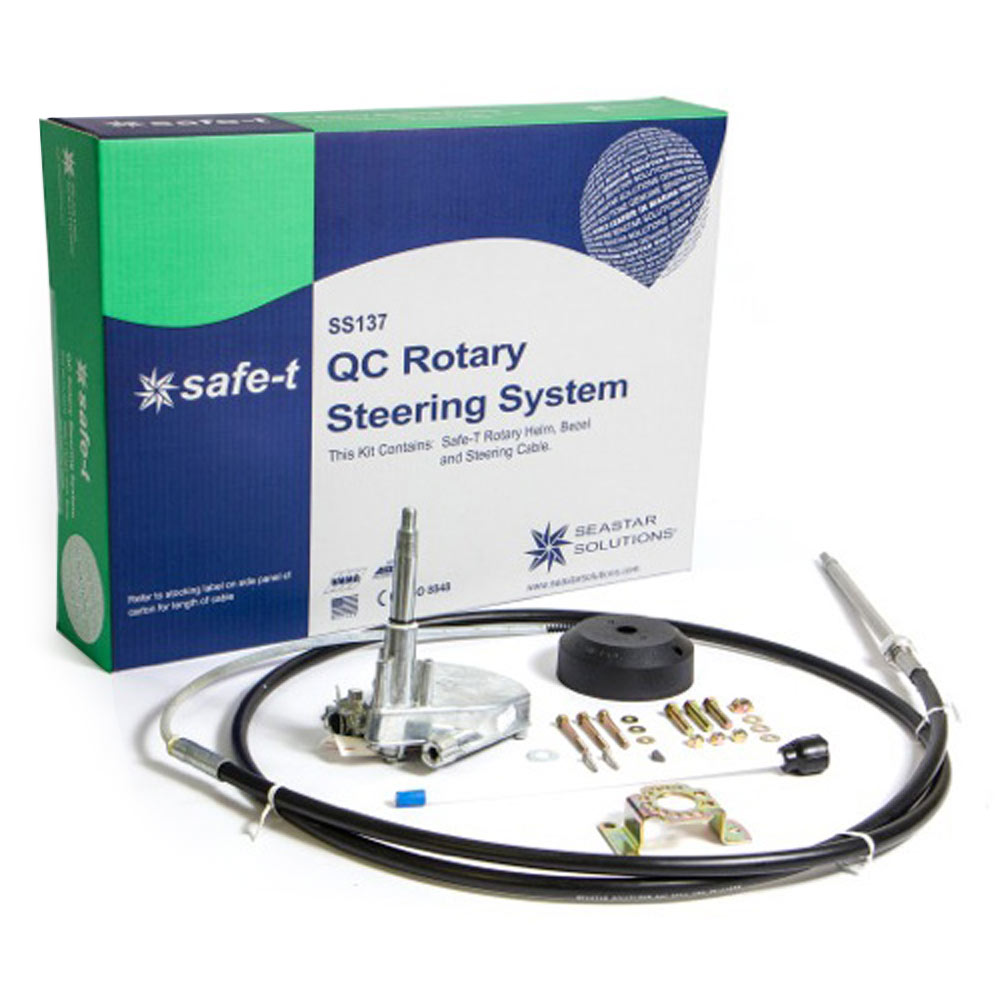

Kit Contents for SS13715
Name	Part Number	Qty
Helm	SH5094-1P	1
Bezel	SB27484P	1
Cable	SSC6215	1
Hardware Kit	-	1
Instructions	-	1

SeaStar Steering Reference Guide Learn about this and other mechanical steering systems
Series	Type	Turns	NFB	Model	Cable	Max HP	Max MPH
SS132	Rotary	3.0	Y	NFB Safe-T II	SSC62	100 HP	50 MPH
SS137	Rotary	3.0	N	Safe-T QC	SSC62	60 HP	-
SS147	Rotary	4.2	Y	NFB 4.2	SSC62	130 HP	50 MPH
SS141	Rack & Pinion	4.0	N	The Rack	SSC134	75 HP	-
SS151	Rack & Pinion	4.0	Y	NFB Rack	SSC134	150 HP	50 MPH
SS152	Rack & Pinion	4.0	Y	Dual Rack	SSC135	300 HP	55+ MPH
