SeaStar Steering Kit w/ HC5358-3 Cylinder HH5271-3 Helm Outboard Steering
By SeaStar Solutions
By SeaStar Solutions
Part # | HH5271-3,HC5358-3,HA5430H |
---|---|
Warranty | 2 Year |
Made In | Canada |
Shipping Wt | 22 lbs |
$1,371.99 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New SeaStar hydraulic outboard steering system. This is the same as the HK6400A-3 SeaStar kit, but includes the alternate HC5358-3 cylinder used on some specific outboard applications (more information below).
Features
Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
The SeaStar kit normally comes with an HC5345-3 cylinder, but this kit includes the HC5358-3 alternate cylinder to fit 1998-Date Johnson/Evinrude 40-140 HP 4-stroke outboards (requires HO5090 spacer kit), 2000-Date Johnson/Evinrude 115 HP Ficht outboards (requires HO5090 spacer kit), 1998-Date Suzuki 40-140 HP 4-stroke outboards (requires HO5090 spacer kit), and 2011-2013 Yamaha F115A outboards. Verify that your outboard needs the HC5358-3 cylinder using the application guide in the product images prior to ordering. If your outboard needs a different cylinder, view the other SeaStar listings. If your outboard requires the HO5090 spacer kit, view it here.
Hoses
This SeaStar kit does not include a hose kit. If you need one with a hose kit, please choose one from here. You can use the measuring guide in the product images to see what length your boat requires.
Features
- 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
- Standard 3/4" Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8"-18UNF)
- Patented No FeedBack™ (NFB) Lock Valves
- Exceeds NMMA and ABYC Standards
Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
The SeaStar kit normally comes with an HC5345-3 cylinder, but this kit includes the HC5358-3 alternate cylinder to fit 1998-Date Johnson/Evinrude 40-140 HP 4-stroke outboards (requires HO5090 spacer kit), 2000-Date Johnson/Evinrude 115 HP Ficht outboards (requires HO5090 spacer kit), 1998-Date Suzuki 40-140 HP 4-stroke outboards (requires HO5090 spacer kit), and 2011-2013 Yamaha F115A outboards. Verify that your outboard needs the HC5358-3 cylinder using the application guide in the product images prior to ordering. If your outboard needs a different cylinder, view the other SeaStar listings. If your outboard requires the HO5090 spacer kit, view it here.
Hoses
This SeaStar kit does not include a hose kit. If you need one with a hose kit, please choose one from here. You can use the measuring guide in the product images to see what length your boat requires.

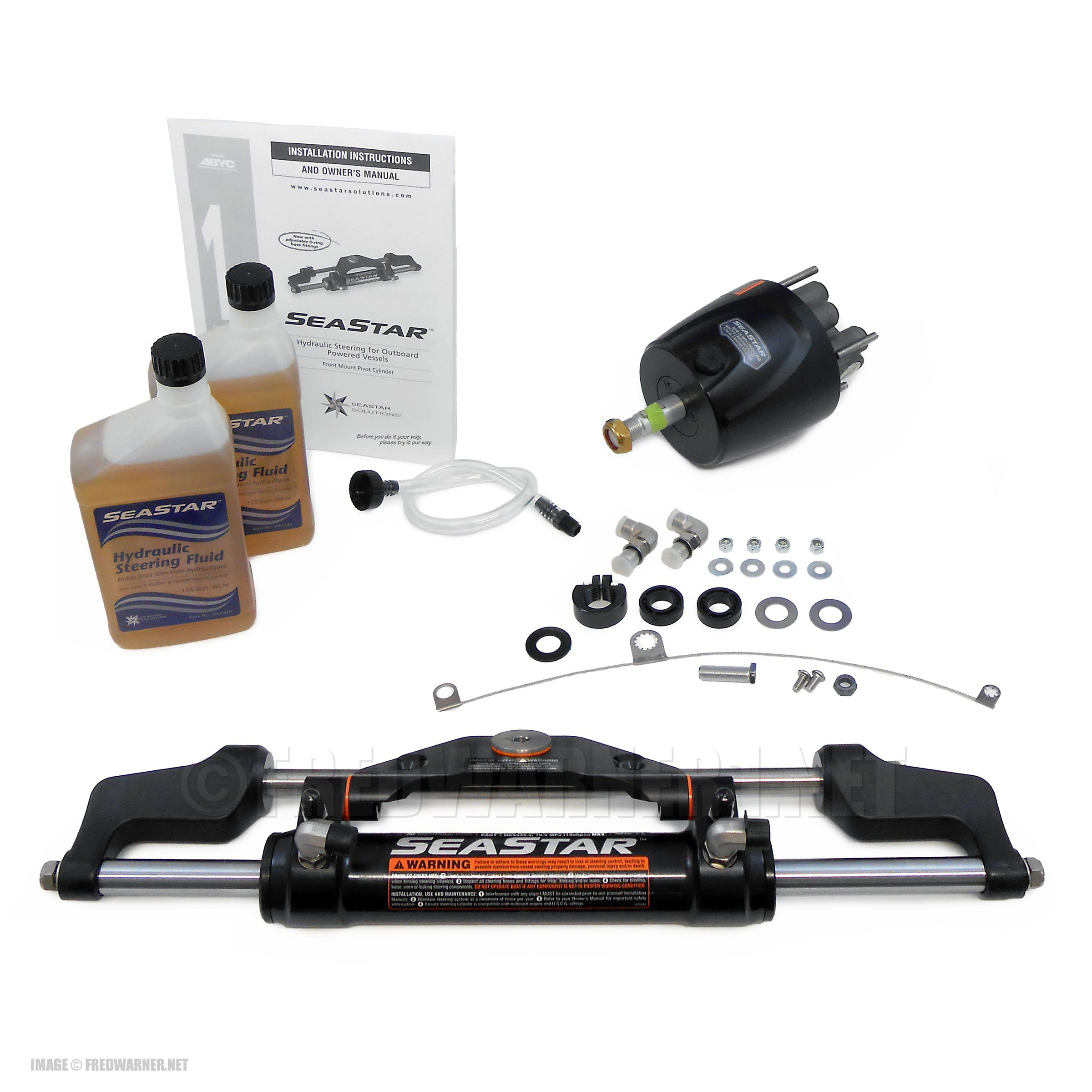

Description | Part Number | Qty |
---|---|---|
Helm | HH5271-3 | 1 |
Cylinder | HC5358-3 | 1 |
Hose Kit | Not included | |
Fluid/Oil | HA5430H | 2 quarts |
Filler Kit | HA5438 | 1 |
Instructions | 1 |
$1,371.99 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
Brand | SeaStar Solutions |
---|---|
Made In | Canada |
Fits | Please see application guide |
Item Weight | 19.8 lbs |
Manufacturer | SeaStar Solutions |
Manufacturer # | HH5271-3,HC5358-3,HA5430H |
Model | SeaStar |
Part # | HH5271-3,HC5358-3,HA5430H |
Product Type | Boat Steering Kit |
Shipping Dims | 22" x 14" x 5" |
Shipping Wt | 22 lbs |
UPC | 491546002526 |
Warranty | 2 Year |
