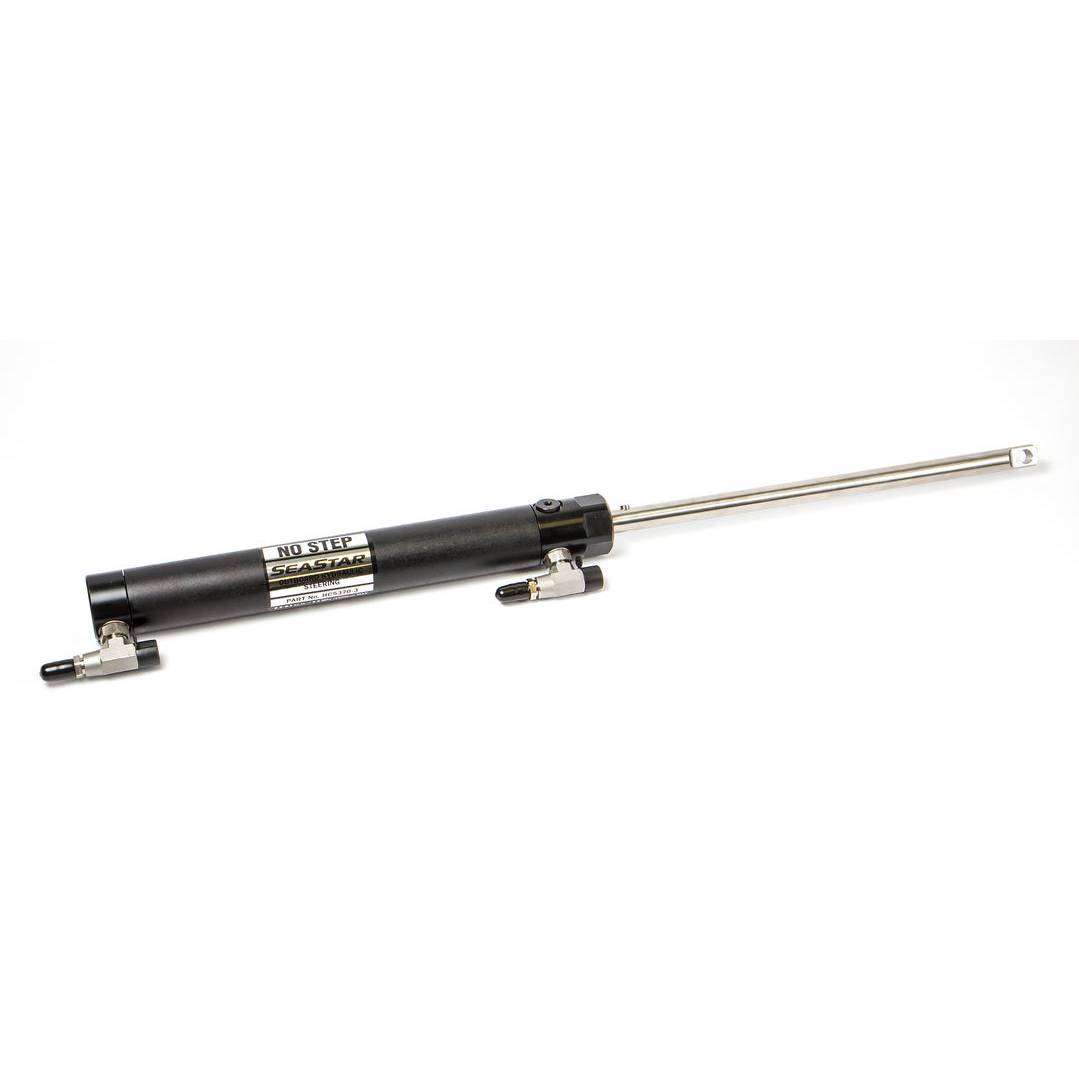

SeaStar HC5370-3 side mount hydraulic outboard steering cylinders offer excellent resistance to repeated compression set and are designed to better withstand the harsh marine environment. They also feature independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection. The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with positionable stainless steel O-ring (ORB) fittings for easy hose routing.

Specifications

• Unbalanced cylinder with 4.8/5.7 turns lock-to-lock
• For single/multiple O/B engine installations w/ total power to 600HP in counter rotating application
• Meets ABYC and NMMA certification standards
• Positionable stainless steel O-Ring (ORB) fittings for easy hose routing
• Suitable for installation in shallow splash wells

NOTE:
Not for use with SeaStar PRO helms.
Not recommended for boats that exceed 75 MPH or run surface piercing props.
