Ford Lehman 120 Oil Cooler 2C212 Marine Diesel Engine Transmission Copper-Nickel
By Seakamp
Part #2C212
Warranty1 Year
Made InUnited States
Shipping Wt4 lbs

$163.75 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Description

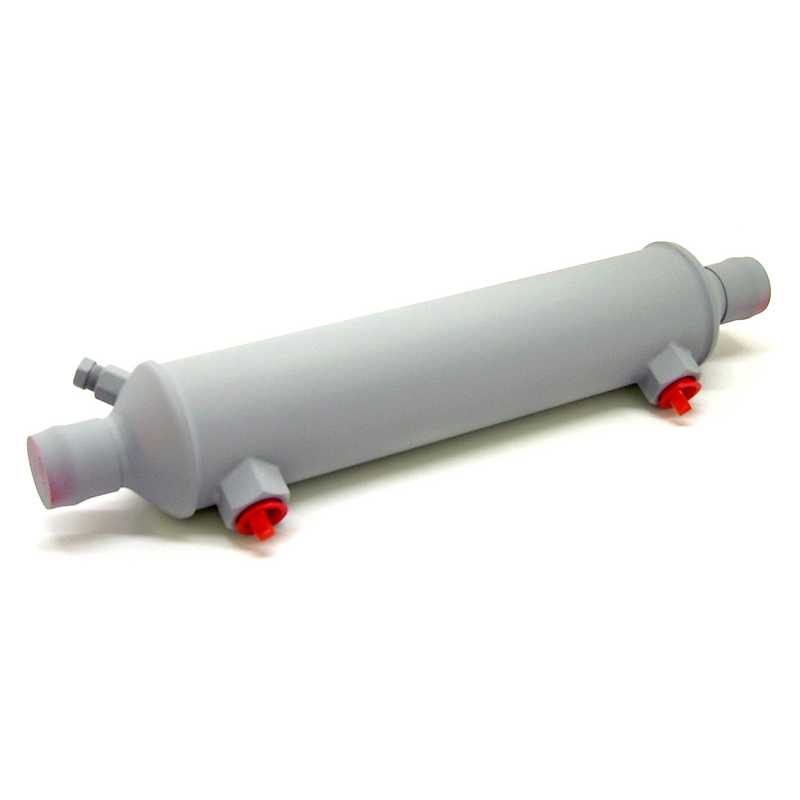

New copper-nickel/cupronickel oil cooler for Ford Lehman marine diesel engines. This cooler will replace either engine or transmission cooler (purchase two coolers if you need to replace both). It is manufactured by Seakamp Engineering, and is a replacement for Ford Lehman part number 2C212 (2C212CN). View the below chart for model applications:

Engine ModelLehman ModelHPDisplacementCylindersSeries
2701E4D24280242 cu. in.4Dorset
2711E4D25480254 cu. in.4Dorset
2712E4D25480254 cu. in.4Dorset
2704E6D363120363 cu. in.6Dorset
2713E6D362120362 cu. in.6Dorset
2714E6D380120380 cu. in.6Dorset
2715E6D380120380 cu. in.6Dorset

This cooler comes in primer gray. The dimensions are 2 inch diameter body, 1 inch water ports, 9 inch core length, 12.5 inch overall length, and 3/8 inch NPT pipe thread for oil line fittings. For maximum cooling, coolers should be setup so that water and oil flow in opposite directions. This cooler does not have a zinc. Look for Seakamp 29133CNZ if you need a copper-nickel with zinc cooler.

If you need any other Ford Lehman parts, such as an expansion tank, heat exchanger, water pump, or elbow, or would like the copper version of this cooler (2C207), view all Ford Lehman listings here.
Share this product:
PinterestTwitterFacebook

$163.75 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandSeakamp
Made InUnited States
FitsFord Lehman 120 (2715E) & 80 (2712E)
Item Weight3.4 lbs
ManufacturerSeakamp
Manufacturer #2C212CN
MaterialCopper-Nickel
Part #2C212
Product TypeOil Cooler
Shipping Dims14" x 4" x 4"
Shipping Wt4 lbs
UPC443590485947
Warranty1 Year
