Ford Lehman 120 & 80 Exhaust Elbow 3.5″ 1A371 + 1C26 Gasket Marine Diesel Engine

By Ford Lehman

Share this product:
PinterestTwitterFacebook

See more: Ford Lehman 120, Ford Lehman 80

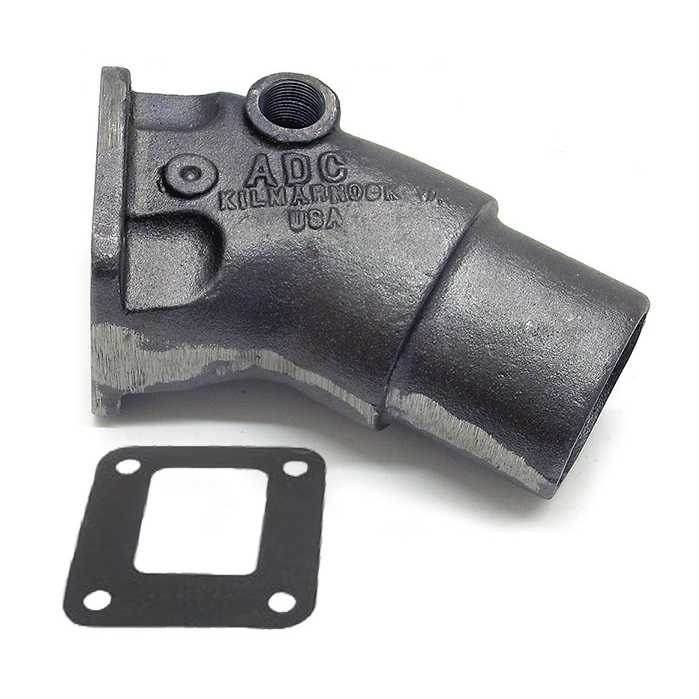

New exhaust elbow for Ford Lehman 80 and 120 marine diesel engine manifolds. Part number 1A371. This elbow has a 3.5-inch outside diameter outlet (for 3.5-inch inside diameter hose) and comes with Lehman 1C26 gasket. View the below chart for model applications for this elbow:

Engine Model	Lehman Model	HP	Displacement	Cylinders	Series
2715E	6D380	120	380 cu. in.	6	Dorset
2714E	6D380	120	380 cu. in.	6	Dorset
2712E	4D254	80	254 cu. in.	4	Dorset
2711E	4D254	80	254 cu. in.	4	Dorset

Important Notes

• Mounting bolt center-to-center measurements are 3-1/2" x 2-11/16" (uses 1-1/4" x 3/8" bolts)
• Does not directly replace the screw-on type exhaust elbow
• Has 3.5" outlet, measured on the O.D. of the elbow outlet or the I.D. of the exhaust hose

If you need any other Ford Lehman parts, such as an expansion tank, heat exchanger, water pump, or coolers, or would like the 3" version of this elbow (1A372), view all Ford Lehman listings here.
