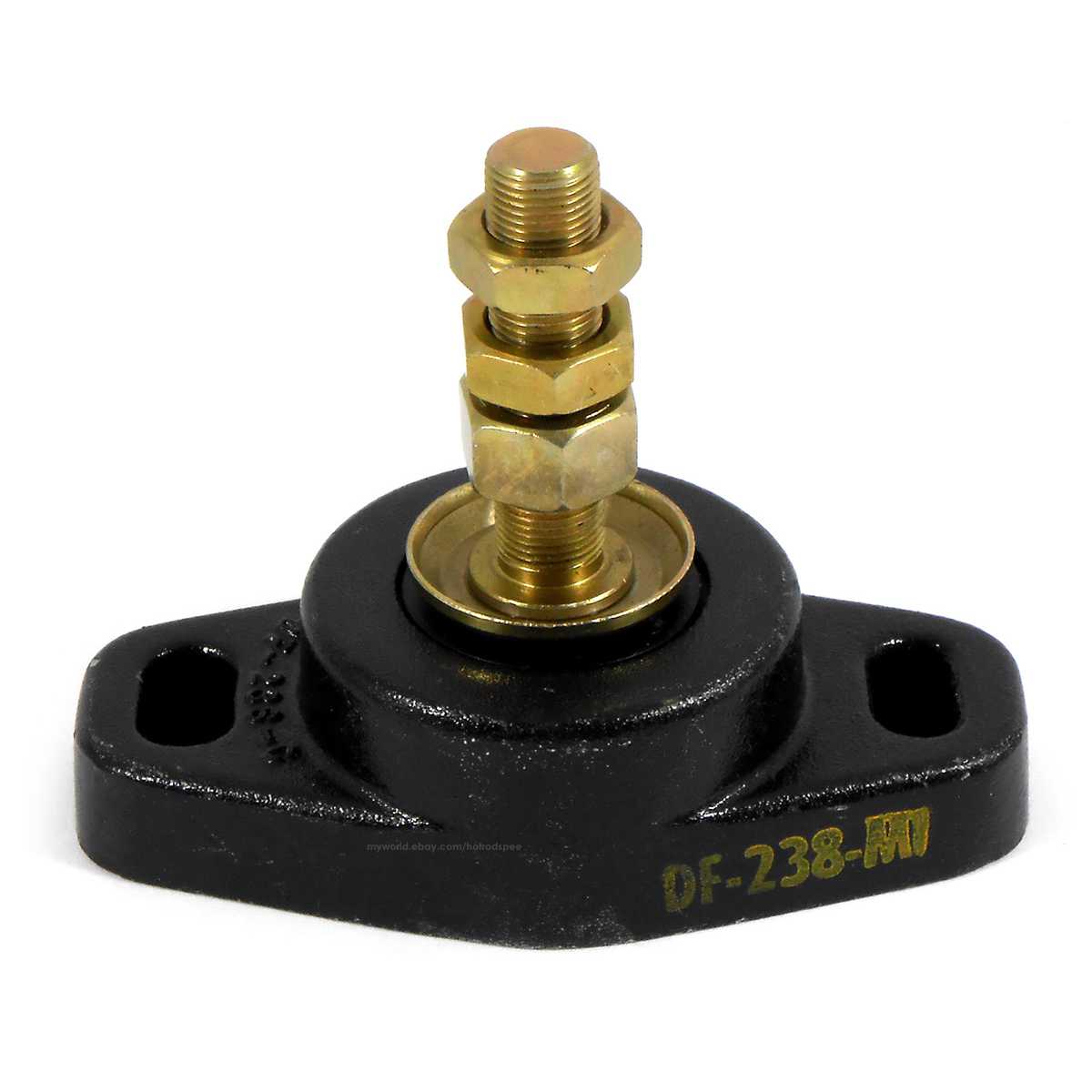

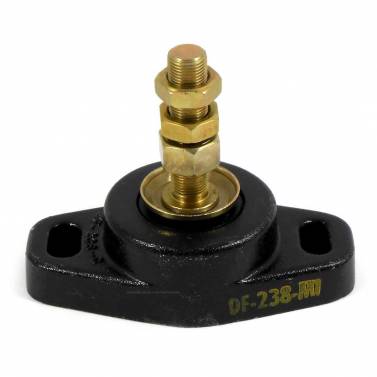

Bushings Inc Dual Flex engine mount DF-238-M1 for diesel boat engines 1800 to 2200 lb.

This mount is built from heavy-duty aluminum alloy and features an integrated lip at the top of the casting to help resist the engine's upward pull. The mount also includes a durable, oil and fuel resistant elastomer element, and is finished with a black corrosion resistant coating for long-lasting performance in harsh marine environments. Each purchase is for one mount. Most applications will require 2 or 4 mounts.

Features

• Mount-requires only 2 5/8" minimum clearance from casting base to top of leveling nut
• Bottom pad prevents excessive impact
• 3/4" threaded stud for vertical height and slotted casting for horizontal adjustment

Specifications

• Stud furnished with three nuts, leveling, locking and secondary lock
• Aluminum base cast with 1/2" slotted holes for 1/2" bolts or lag screws on 5" centers
• All steel parts are zinc trivalent plated for corrosion resistance
• 3/4" - 16 threads stud

Make	Engine Model
Caterpillar	3208, 3304B
Cummins	V-504/55-M
Detroit Diesel	6.2, 4-53, 8.2, 6V53, 6V53T, 471N
John Deere	7.6 & 8.1 Liter
Peninsular Engines	All models

Warning: Handling marine and automotive parts can expose you to chemicals that can cause cancer and reproductive harm. To minimize exposure, work in a well-ventilated area, wear gloves, and wash your hands. For more information see: www.P65Warnings.ca.gov/marine-vessel-parts
