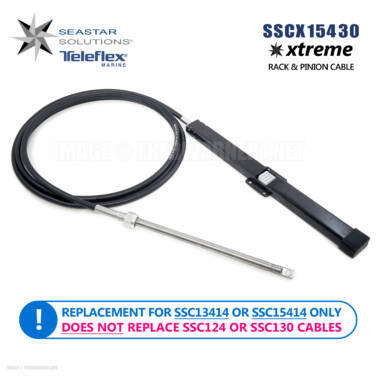

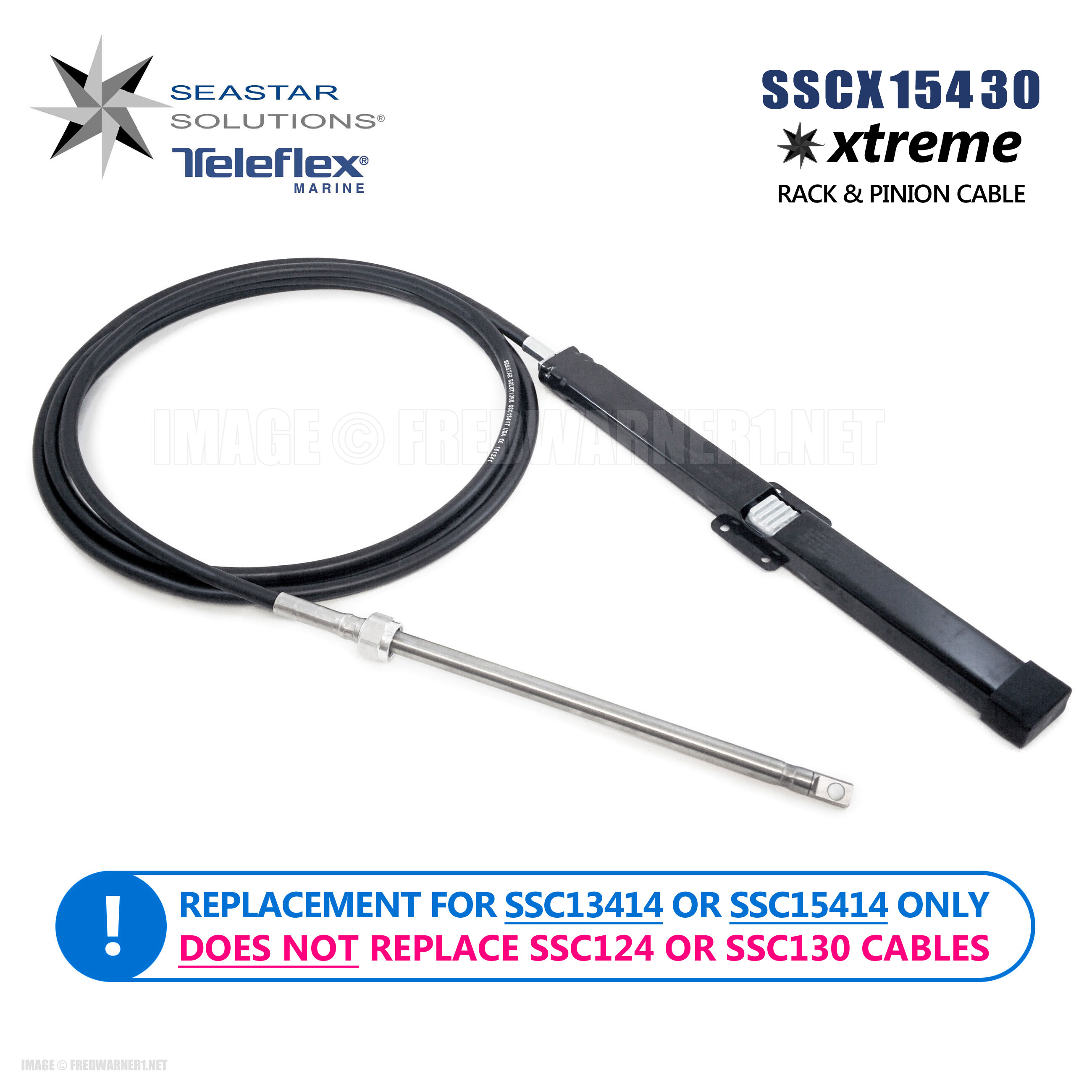

New SeaStar (Teleflex Marine) mechanical rack & pinion XTREME steering cable. Part number SSCX15430. This is the XTREME version of the SSC13430 cable (also called TFXtreme). XTREME cables reduce steering effort, especially at long lengths.

Specifications

• Cable Series: SSCX 154
• Cable Length: 30 Foot (measured from center of rack to end of stainless shaft)

Compatibility

• Compatible with helm and bezel kits SH5210P/SB39526P and SH5230P/SB39544P (NFB).
• The SSCX15430 can directly replace SSC13430 and SSC15430 cables, and be used with SS14130 and SS15130 steering systems.

Important Notes Before Ordering

• Does not replace SSC 124, SSC 130, or Detmar cables.
• For single-cable systems only (not dual-cable).
• On your existing cable, find the part number printed on the cable jacket, and match it to SSC13430 or SSC15430.
• Can't find the part number? Here's how you can determine if this is the correct cable:
  • Rack-to-helm mounting is 1-5/8" by 2-1/4" bolt centers (see photos). Make sure this is an exact match.
  • Make sure distance from center of rack (where gear is visible) to the end of the stainless shaft is 30 foot.
