Sea-Dog 420400-1 Stamped Brass Three Position Two Circuit Push Pull Switch
By Sea-Dog
By Sea-Dog
| Part # | 420400-1 |
|---|---|
| Warranty | 1 Year |
| Made In | Taiwan |
| Shipping Wt | 0.4 lbs |
$20.77 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description

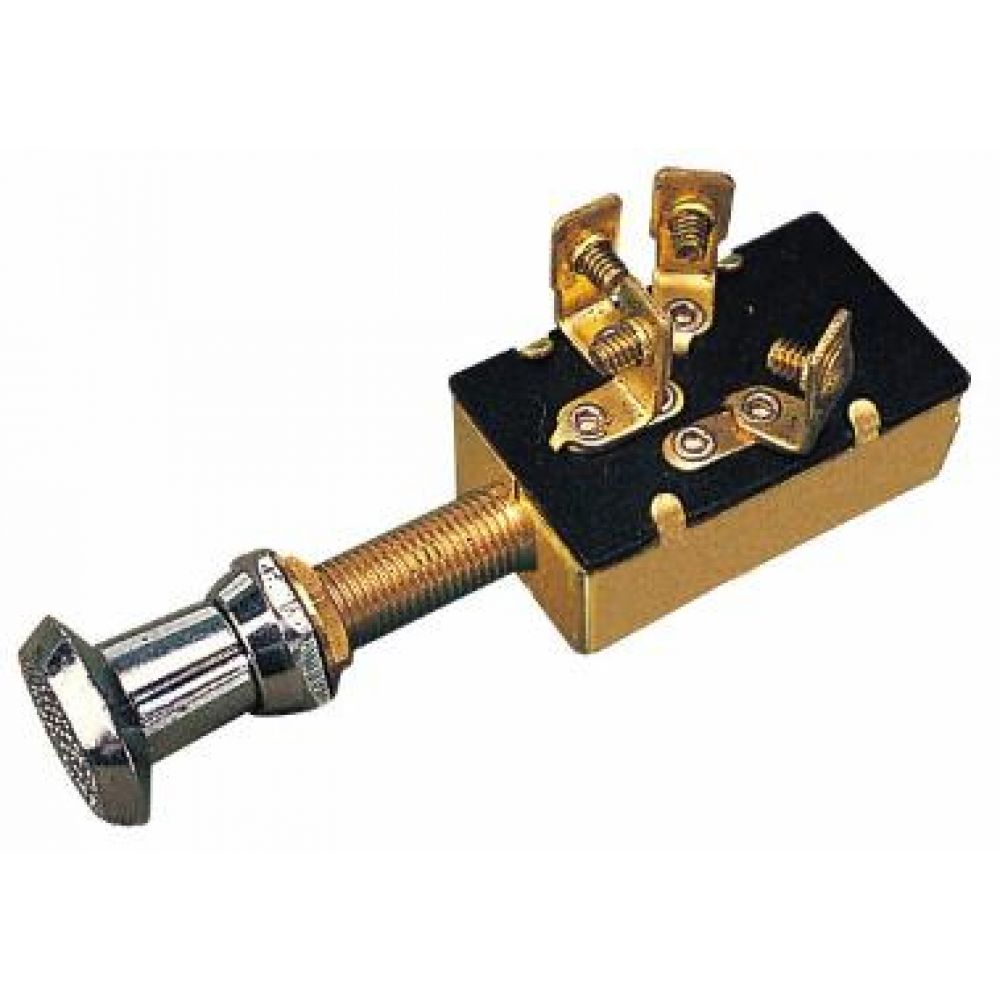

New Sea-Dog 420400-1 Stamped Brass Three Position Two Circuit Push Pull Switch.
Three Position Two Circuit Push-Pull Switch features two circuits (normally Off) three position: Off/On/On. When pushed in all the way, the switch is turned off. When pulled to the first position, the first circuit is activated. At the second position, the first circuit is deactivated and the second circuit is activated. Maximum panel thickness: 1". Constructed of corrosion resistant stamped brass. 15A @ 12VDC.
Size (see photos for dimensions):
A: 1"
B: 3/8"
Volts: 12
Amps: 15
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Three Position Two Circuit Push-Pull Switch features two circuits (normally Off) three position: Off/On/On. When pushed in all the way, the switch is turned off. When pulled to the first position, the first circuit is activated. At the second position, the first circuit is deactivated and the second circuit is activated. Maximum panel thickness: 1". Constructed of corrosion resistant stamped brass. 15A @ 12VDC.
Size (see photos for dimensions):
A: 1"
B: 3/8"
Volts: 12
Amps: 15
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
$20.77 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Sea-Dog |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.22 lbs |
| Manufacturer | Sea-Dog |
| Manufacturer # | 420400-1 |
| Material | Stamped Brass |
| Part # | 420400-1 |
| Product Type | Push-Pull Switch |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.4 lbs |
| UPC | 035514420037 |
| Warranty | 1 Year |
