Sea-Dog 420385-1 Polypropylene Four Position Ignition Switch Magneto Style
By Sea-Dog
By Sea-Dog
Part # | 420385-1 |
---|---|
Warranty | 1 Year |
Made In | Taiwan |
Shipping Wt | 0.4 lbs |
$20.30 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Description

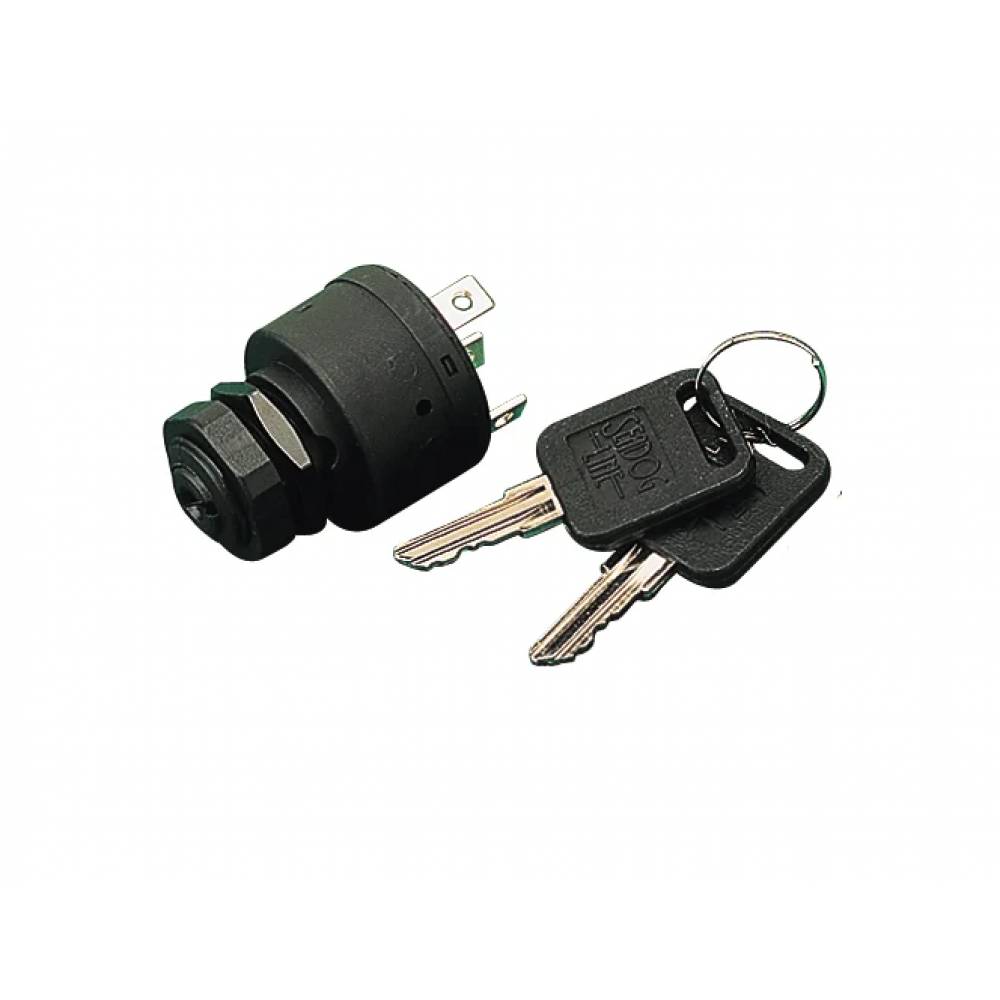

New Sea-Dog 420385-1 Polypropylene Four Position Ignition Switch Magneto Style.
Four Position Magneto Style Ignition Switch for accessory, off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8". Seven screw or six screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Accessory: 15A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.
Size (see photos for dimensions):
Action: Acc Off, Start Choke
A: 13/16"
Max Panel: 5/8"
Shaft Type: Short
Terminals: 7 Screw
Cap: No
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Four Position Magneto Style Ignition Switch for accessory, off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8". Seven screw or six screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Accessory: 15A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.
Size (see photos for dimensions):
Action: Acc Off, Start Choke
A: 13/16"
Max Panel: 5/8"
Shaft Type: Short
Terminals: 7 Screw
Cap: No
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
$20.30 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Specifics
Brand | Sea-Dog |
---|---|
Made In | Taiwan |
Item Weight | 0.22 lbs |
Manufacturer | Sea-Dog |
Manufacturer # | 420385-1 |
Material | Polypropylene |
Part # | 420385-1 |
Product Type | Ignition Switch |
Shipping Dims | 5" x 5" x 4" |
Shipping Wt | 0.4 lbs |
UPC | 035514423717 |
Warranty | 1 Year |
