Sea-Dog 420381-1 Polypropylene Three Position Ignition Switch Magneto Style
By Sea-Dog
By Sea-Dog
| Part # | 420381-1 |
|---|---|
| Warranty | 1 Year |
| Made In | Taiwan |
| Shipping Wt | 0.4 lbs |
$20.30 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
12 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

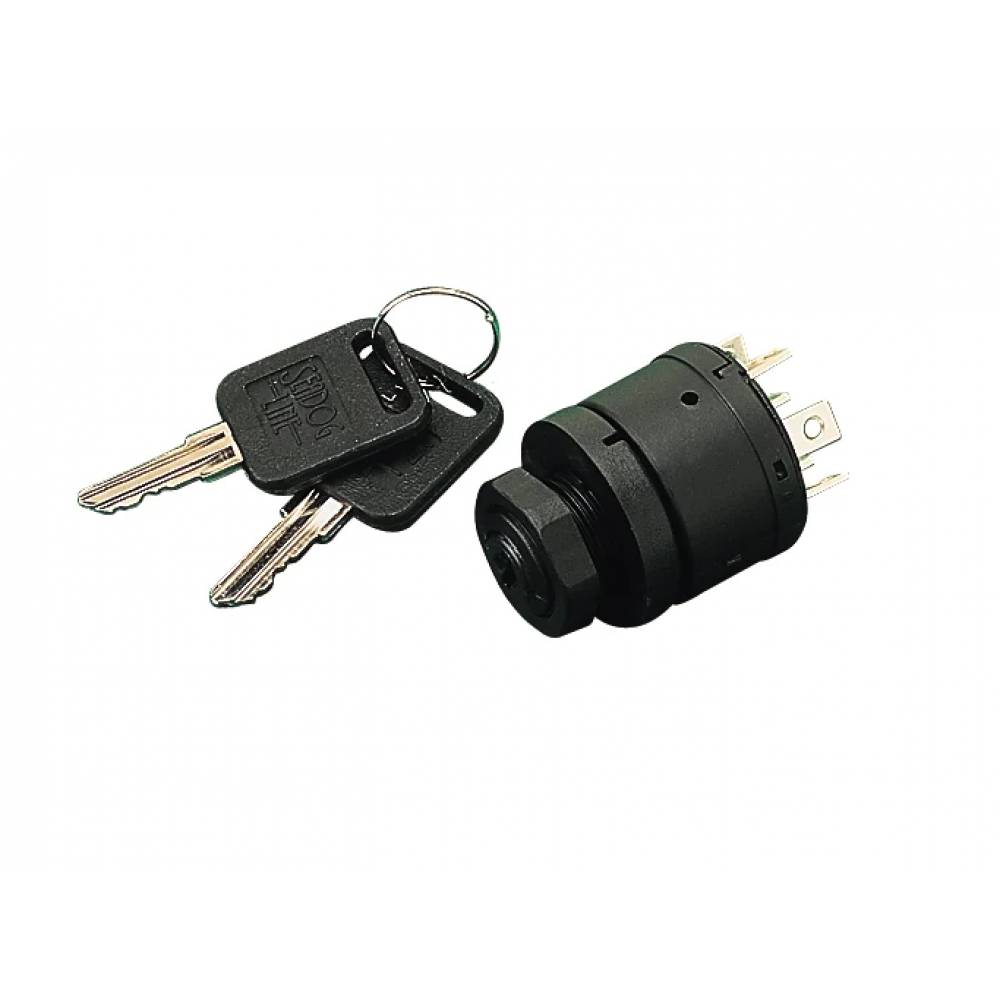

New Sea-Dog 420381-1 Polypropylene Three Position Ignition Switch Magneto Style.
Three Position Magneto Style Ignition Switch for off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8". Six screw or five screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.
Size (see photos for dimensions):
Action: Off Ignition Start Choke
A: 13/16"
Max Panel: 5/8"
Shaft Type: Short
Terminals: 6 Screws
Cap: No
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Three Position Magneto Style Ignition Switch for off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8". Six screw or five screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.
Size (see photos for dimensions):
Action: Off Ignition Start Choke
A: 13/16"
Max Panel: 5/8"
Shaft Type: Short
Terminals: 6 Screws
Cap: No
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
$20.30 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
12 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Sea-Dog |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.22 lbs |
| Manufacturer | Sea-Dog |
| Manufacturer # | 420381-1 |
| Material | Polypropylene |
| Part # | 420381-1 |
| Product Type | Ignition Switch |
| Shipping Dims | 5" x 5" x 4" |
| Shipping Wt | 0.4 lbs |
| UPC | 035514423687 |
| Warranty | 1 Year |
