Moeller 035722-10 Electric Fuel Sender Adjustable 6″ to 12″ Tank Depths Marine


Out of stock

Free Shipping to the Contiguous 48 US States

Product Details

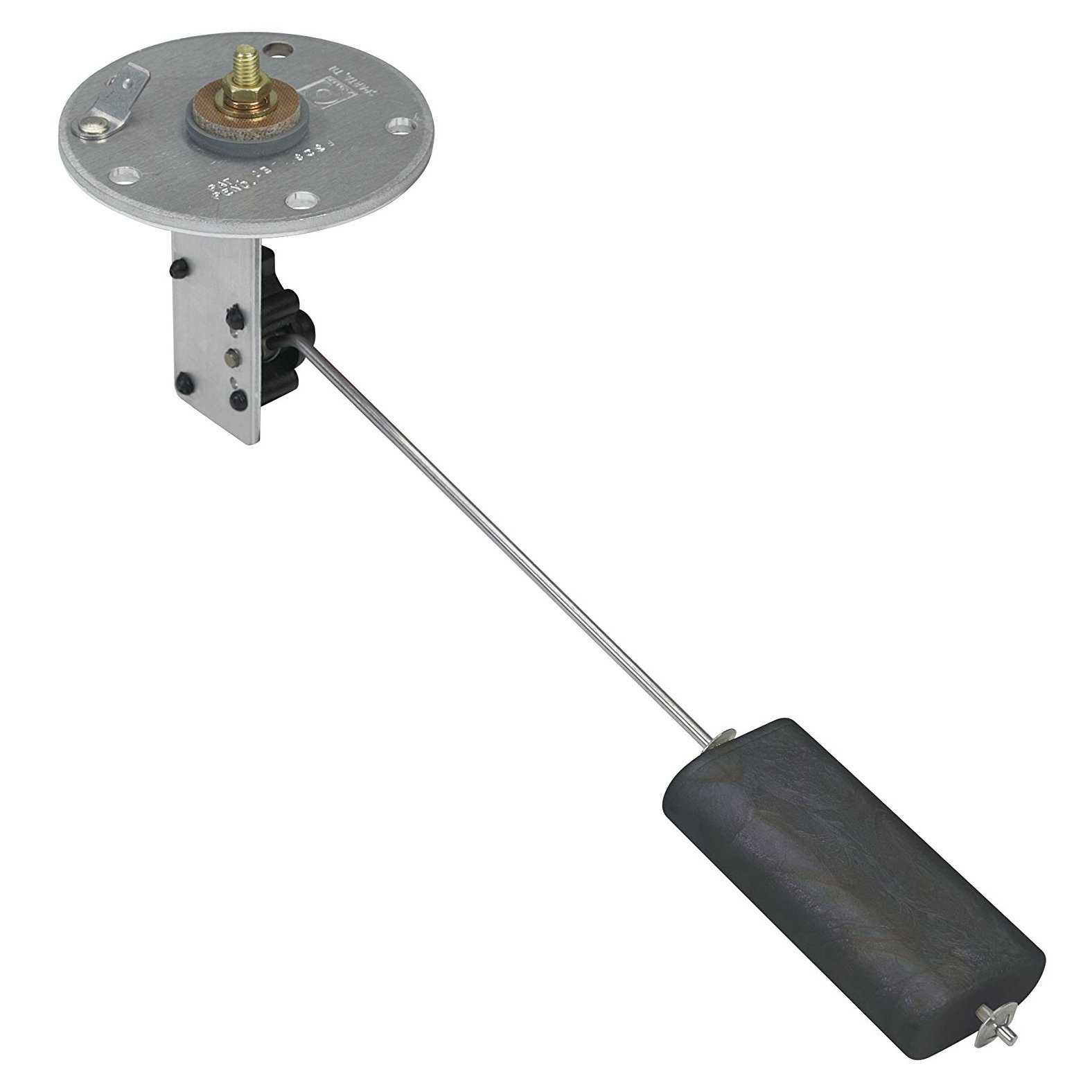

New Moeller Marine electric fuel sender for boat fuel tanks. Part number 035722-10. Adjusts from 6 inch to 12 inch tank depths. Gasket and bolts included.

  • Will not rust or corrode
  • Calibrated to 33-240 ohm industry standard
  • Adjusts easily to fit tanks from 4″ to 28″ depths
  • Tested to ensure accurate readings

Note: When testing ohm resistance with a multimeter, it may read 5 to 10 ohm past the spec in each direction. This is normal as there are several steps above and below “E” and “F” in the sender and on the gauge. So it is not uncommon to read a range from 25 to 245 ohm, for example.

Additional information

Product Specifications
Warranty1 Year
Manufacturer Part Number035722-10
Item Weight0.4 lbs
Part Number035722-10
SizeFor 6" to 12" Tank Depths
Shipping Weight0.7 lbs
Shipping Dimensions17" x 6" x 3"
TypeElectric Fuel Sender
Country of ManufactureUnited States
