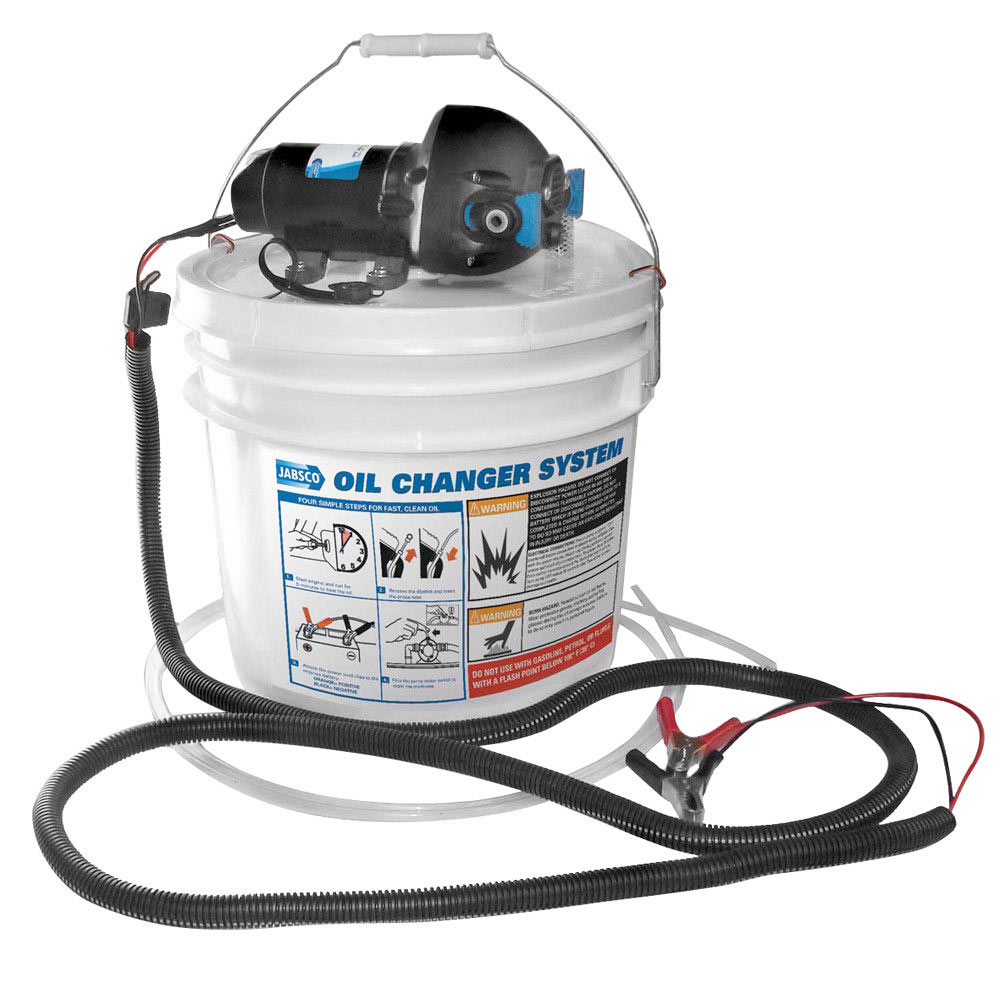

New Jabsco "Do It Yourself" marine engine oil change system. Model 17850-1012. Allows for easy and quick oil changes through engine dip stick tube.

Specifications

• Pump Body: Polypropylene
• Diaphragm: Geolast, oil resistant
• Valves: Viton, oil resistant
• Motor: 12V DC with integral power switch
• Amp draw: 2A
• Fuse size: 5A
• Receiver: Plastic with 3.5 Gal (13.2L) maximum capacity bucket
• Battery Leads: 6 ft (1.8m) with alligator clips
• Suction Tube: 8 ft (2.4m), oil & heat resistant
• Dimensions: 12-3/8" (314mm) diameter, 12-3/4" (324mm) high
• Weight (empty): 6 lbs (2.7 kg)

Operating Instructions
1. Run the engine for approximately 5 minutes to heat oil to approximately 160 degrees F (71 degrees C), then shut off engine prior to oil removal.
2. Insert 1/4" (6mm) tube into pump inlet port and be sure that it is securely in place.
3. Unscrew the pour spout to vent container prior to operating pump to allow air to vent.
4. With the pump switch in the off position (to avoid sparks), clamp the power-leads' alligator clips to a 12V DC battery (red to positive, black to negative).
5. With the engine off, remove the dipstick, and insert the 1/4" (6mm) oil change probe through the dipstick tube until it contacts the bottom of the oil pan. It may help to measure the probe against the dipstick, add an inch and mark the probe. Do not push the probe too far into the dipstick tube or it may curl up and out of the oil. It may be useful to tape the probe in place during evacuation.
6. To evacuate the oil, switch on the pump using the rocker switch at the rear of the motor. Watch for flow in the probe. If no flow appears in 15 seconds, check the probe for sediment blockage. Clean the probe and reset it 1/4" (6mm) off the pan.
7. The pump will speed up when the oil has been removed. An average 5 Quart (5 liters) oil capacity engine will take around 10 minutes to drain.
8. Switch off pump before removing alligator clips from the battery, to avoid sparks.
9. Remove probe from dipstick tube while wiping with a rag to prevent oil drips.
10. To empty the container, pull up the retractable pour spout and pour the oil into a suitable container for disposal/recycling.
11. For extended storage, flush pump with water based degreaser solution.
