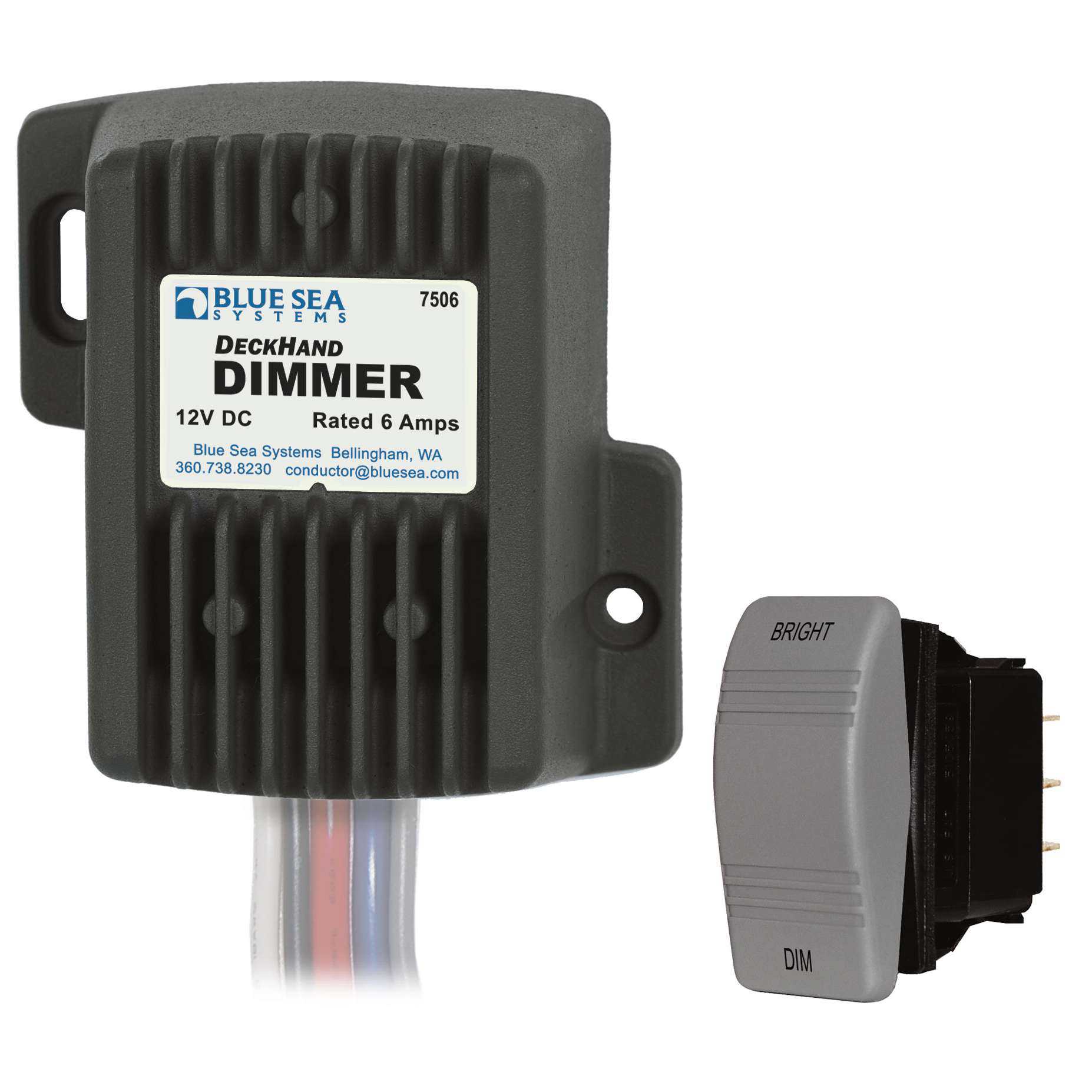

New Blue Sea Systems Deckhand Dimmer - 12V DC 6A. Part number 7506. Digitally controls dimming of non-regulated LED, incandescent, and halogen lights.

Features

• Illuminated exit with adjustable time delay
• Digitally controls dimming of non-regulated LEDs, incandescent, and halogen lights
• Memory for last setting
• Provides continuous voltage control from 0 to 100% of input voltage
• Offset mounting tabs allow dimmers to be mounted close together
• Retail package includes momentary (ON)-OFF-(ON) switch

Specifications

• Nominal Voltage: 12V DC
• Maximum Amperage: 6A
• Minimum Operating Temperature: -40 degree C
• Maximum Operating Temperature: 85 degree C
• Maximum Parasitic Current: 2mA
• Weight: 0.70lb (0.32 kg)
