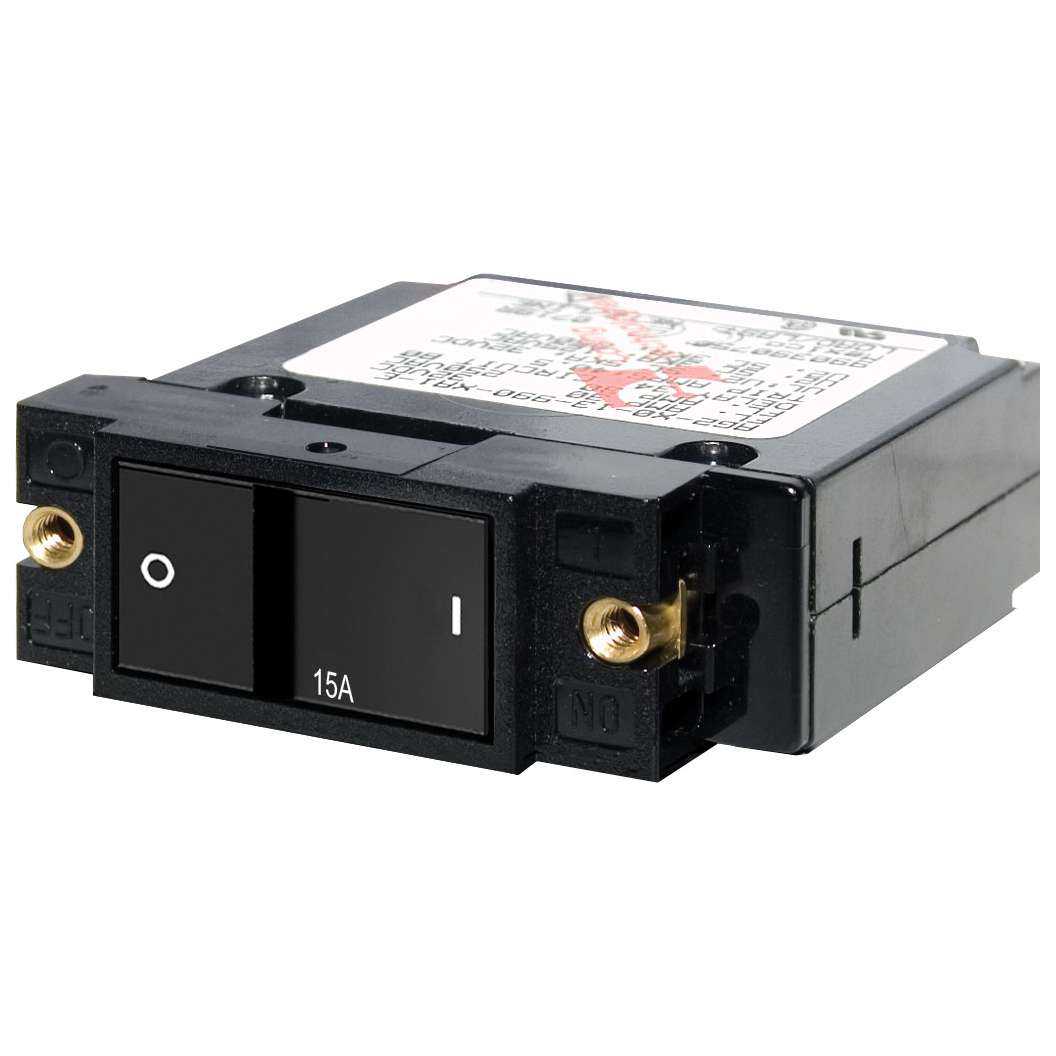

Blue Sea 7403 A-Series Flat Rocker Circuit Breaker Single Pole 15A
By Blue Sea
By Blue Sea
| Part # | 7403 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.4 lb |
$26.80 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
9 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems A-Series Flat Rocker Circuit Breaker - Single Pole 15A. Part number 7403.
Features
Specifications
Features
- Rocker actuator is flush in the ON position, eliminating the risk of accidential switching
- Color actuator indicates OFF position
- Trip Free design cannot be held ON during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
Specifications
- Amperage: 15A AC, 15A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 250V AC, 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 125V AC, 1500A @ 250V AC, 5000A @ 32V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.18lb (0.08 kg)
$26.80 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
9 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.18 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 7403 |
| Part # | 7403 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.4 lb |
| UPC | 632085074036 |
| Warranty | 5 Year |
