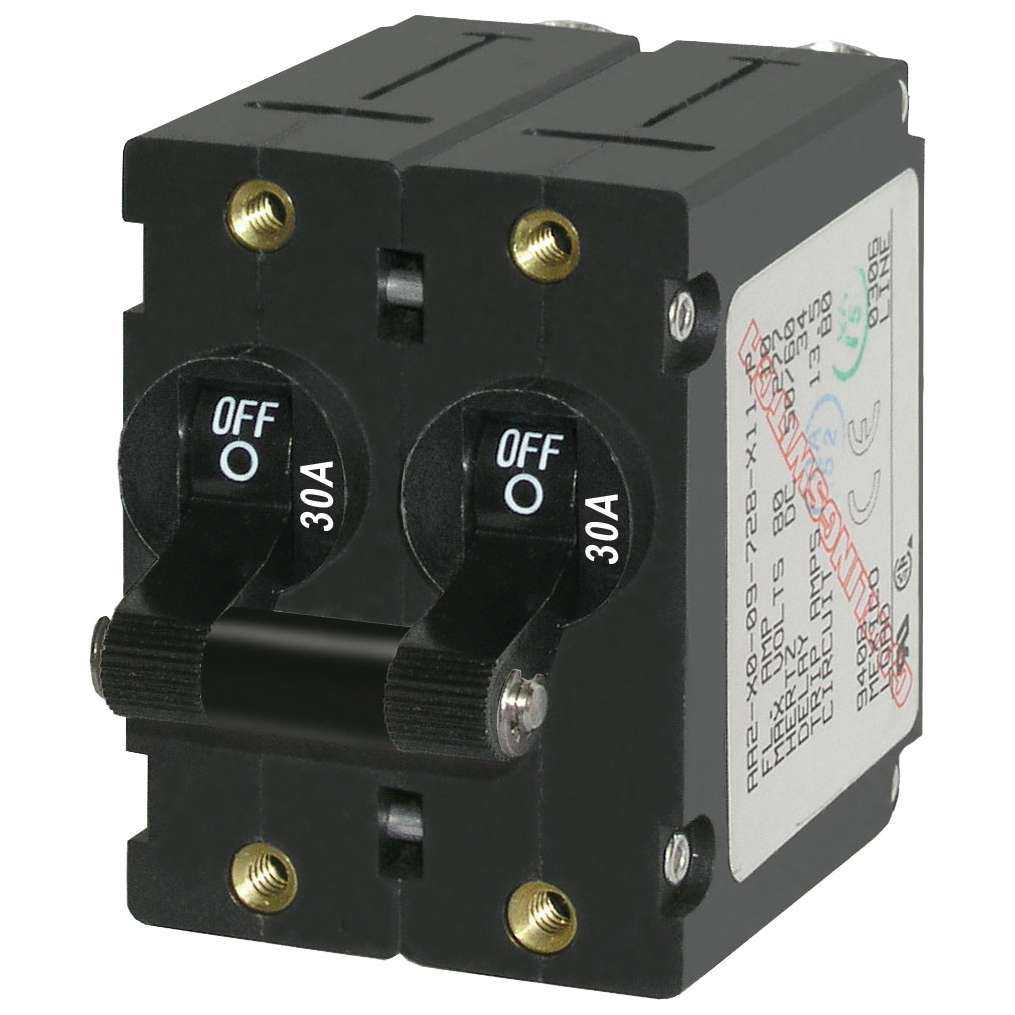

Blue Sea 7237 A-Series Black Toggle Circuit Breaker Double Pole 30A
By Blue Sea
Part #7237
Warranty5 Year
Made InMexico
Shipping Wt0.4 lbs

$36.10 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems A-Series Black Toggle Circuit Breaker - Double Pole 30A. Part number 7237.

Features
  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems' electrical panels
  • Combines swtiching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition

Specifications
  • Amperage: 30A AC, 30A DC
  • Color: Black
  • Actuator Style: Toggle
  • Poles: 2
  • Maximum Voltage: 250V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 120V AC, 3000A @ 240V AC, 1500A @ 250V AC [TUV], 3000A @ 250V AC [UL 1077], 7500A @ 65V DC
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.30lb (0.14 kg)
